0.74-25.2LPH, 16-1bar, High Quality Chlorine Metering Pump with PVDF Head
1. All components and parts are made in Germany.
100% genuine German brand products.
2. Solenoid driven diaphragm metering pump.
3. PVDF dosing head, PTFE seals.
Chemical resistant to most corrosive chemicals.
4. 0.74-25.2L/h,16-1bar.
5. 100-230V, 50/60HZ.
6. Compact size, net weight 1.5KG.
7. Control type : manual, pulse control, 4-20mA control.
8. Fast delivery:3 working days after receiving your payment.
The product range covers the performance range from 0.74 l/h-25.2 l/h,16-1bar. With its compact structure it is equally suitable for both conventional installation on a bracket or chemical tank and installation in machines such as slide grinding systems, car wash systems and dishwashers.
The metered quantity can be steplessly adjusted by means of the stroke length over a range of 10 % -100 % and in four levels by means of the stroke rate. This results in an adjustment range of 1:40. As well as manual stroke rate adjustment the pump can be controlled by potential-free contacts from a water meter or controller.
The pump can also be activated and deactivated with a potential-free contact.
The necessary retrofi tting can be carried out at the customer‘s premises with a specially designed external control retrofi t kit. This reduces storage costs without limiting fl exibility. A ‚level‘ retrofi t kit is available for connecting a level switch. The dosing heads are available in the material combinations PPE 2, NPB 2 and PVT 2 with bleed valve to cover virtually all metering tasks in water treatment.
This pump offers uncompromising quality and reliability at an extremely affordable price.
| Product Name | Metering Pump 240strokes/min |
| Type/Series | CNPB |
| Brand | Big Brand |
| Origin | Germany |
| Type of drive | solenoid diaphragm |
| Capacity | 1-25.2L/h |
| Back pressure | 16-1bar |
| Liquid end | PVDF/PTFE |
| Power supply | 100-230V,50/60Hz |
| Adjustment range | 1:40 |
| Protection class | IP65 |
| Insulation class | F |
| Control type | manual,external |
| Packaging type | carton |
| Delivery time | within 1 week |
| Warranty | 1 year from B/L date |
| Product Name | Metering Pump 180strokes/min |
| Type/Series | CNPB |
| Brand | Big Brand |
| Origin | Germany |
| Type of drive | solenoid |
| Capacity | 0.74-18.3L/h |
| Back pressure | 16-1.5bar |
| Liquid end | PVDF/PTFE |
| Power supply | 100-230V,50/60Hz |
| Adjustment range | 1:40 |
| Protection class | IP65 |
| Insulation class | F |
| Control type | manual,external |
| Packaging | carton |
| Delivery time | within 1 week |
| Warranty | 1 year from B/L date |

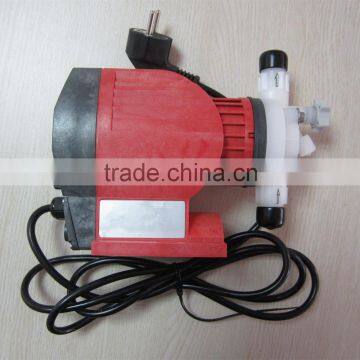

Solenoid Metering Pump, chlorine dosing pump:
PVDF dosing head, PVDF inlet and outlet valves:
PVDF foot valve, injection valve:
If you have any question, please don't hesitate to contact me.
