German Brand Micro Dosing Pump
- 1000 Piece / Pieces per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Liaoning, China | Brand Name: | OEM | Model Number: | TTD,TTM,TTA, CONC, CNPB |
Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electricity |
Pressure: | Other, Low Pressure, 7-2bar, 16-1.5bar | Application: | Metering |
Product Description

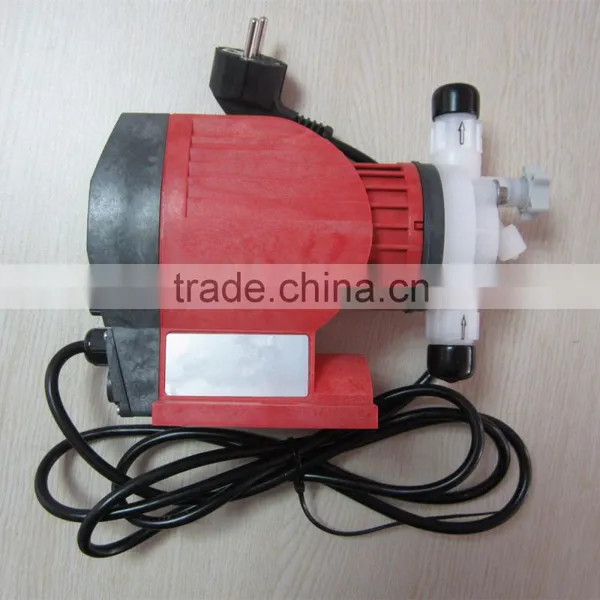

German Brand Micro Dosing Pump
We have full range of chemical dosing pumps, welcome your inquiry.
For all our dosing pumps, the warranty is 1 year from delivery date.
3 models of solenoid dosing pump hot sell for your option:
a. TT Dosing Pump;
b. Concept C (CONC) Dosing Pump;
c. Concept Plus (CNPB) Dosing Pump;
a. TT Dosing Pump
1. Brand:TTBest, Made in China.
2. Solenoid driven diaphragm metering pump.
3. PVC dosing head, PTFE seals.
Chemical resistant to most corrosive chemicals.
4. 0.5-50L/h,7-2bar.
5. 220V, 50HZ.
6. Compact size, weight 2.5KG.
7. Control type : manual, pulse control, 4-20mA control.
8. Fast delivery:3 working days after receiving your payment.
Product Name | TTBest Solenoid Diaghragm Dosing Pump |
Type/Series | TTD,TTM,TTA |
Brand | TTBest |
Origin | China |
Type of drive | solenoid |
Capacity | 0.5-50L/h |
Back pressure | 7-2bar |
Liquid end | PVC/PTFE |
Power supply | 220V,50Hz |
Accuracy | +-1% |
Protection class | IP55 |
Insulation class | F |
Control type | manual,external |
Packaging type | carton |
Delivery time | within 1 week |
Warranty | 1 year from B/L date |
TTBest Solenoid Diaphragm Dosing Pump:
Type | Capacity (L/H) | Back Pressure (BAR) | Stroke Rate (strokes/minute) | Suction Head (M) | Weight (KG) | Power Consumption (W) | Power Supply |
TTD-0.5-07 | 0.5 | 7 | 120 | 2 | 2.5 | 16 | 220VAC 50HZ |
TTD-01-07 | 1 | 7 | 120 | 2 | 2.5 | 16 | 220VAC 50HZ |
TTD-02-07 | 2 | 7 | 120 | 2 | 2.5 | 16 | 220VAC 50HZ |
TTD-03-07 | 3 | 7 | 120 | 2 | 2.5 | 16 | 220VAC 50HZ |
TTD-06-07 | 6 | 7 | 160 | 2 | 2.5 | 16 | 220VAC 50HZ |
TTD-10-04 | 10 | 4 | 200 | 2 | 2.5 | 16 | 220VAC 50HZ |
TTD-12-03 | 12 | 3 | 200 | 2 | 2.5 | 16 | 220VAC 50HZ |
TTD-15-03 | 15 | 3 | 200 | 2 | 2.5 | 16 | 220VAC 50HZ |
TTD-20-03 | 20 | 3 | 200 | 2 | 4.5 | 60 | 220VAC 50HZ |
TTD-30-03 | 30 | 3 | 200 | 2 | 4.5 | 60 | 220VAC 50HZ |
TTD-50-02 | 50 | 2 | 200 | 2 | 4.5 | 60 | 220VAC 50HZ |
Accessories:
b. Concept C (CONC) Dosing Pump
0.7-23LPH, 16-1.5bar, Made in China High Quality Dosing Pump
Made in China.
PP dosing head, EPDM/FPM seals.
0.7-24L/h,16-1.5 bar.(4.56-152.2GPD, 232-22Psi)
German quality.
Product Name | CONC solenoid dosing pump |
Type/Series | CONC |
Brand | German Brand |
Made in | China |
Structure | solenoid diaphragm |
Capacity | 0.7-23L/h (4.56-152.2GPD) |
Back pressure | 16-1.5bar (232-22Psi) |
Liquid ends | PP head, EPDM/FPM seals |
Power supply | 220V,100-230V,50/60Hz |
Power consumption | 12W,16W,24W |
Protection class | IP65 |
Insulation class | F |
Control type | manual,external contact, 4-20mA anolog |
Packaging type | carton |
Delivery time | within 1 week |
Warranty | 1 year from delivery date |
The CONC solenoid dosing pump is a microprocessor-controlled, short-stroke, solenoid-driven, diaphragm-type dosing pump for metering liquid, non-combustible media. It is popular to our customer for its precise design, reliable operation, good performance-cost ratio. It is widely applied to all kinds of chemicals dosing, with a good anti-corrosion performance of the liquid ends.
Liquid end material:
PP1=PP/EPDM seal
PP2=PP/FPM seal(Viton®)
* All options are with bleeding valves.
CONC solenoid dosing pump:
CONC Dosing Pump Production Line:
c. Concept Plus (CNPB) Dosing Pump:
0.74-25.2LPH, 16-1bar, High Quality Chlorine Dosing Pump with PVDF Head
1. All components and parts are made in Germany.
100% genuine German brand products.
2. Solenoid driven diaphragm metering pump.
3. PVDF dosing head, PTFE seals.
Chemical resistant to most corrosive chemicals.
4. 0.74-25.2L/h,16-1bar.
5. 100-230V, 50/60HZ.
6. Compact size, net weight 1.5KG.
7. Control type : manual, pulse control, 4-20mA control.
8. Fast delivery:3 working days after receiving your payment.
The product range covers the performance range from 0.74 l/h-25.2 l/h,16-1bar. With its compact structure it is equally suitable for both conventional installation on a bracket or chemical tank and installation in machines such as slide grinding systems, car wash systems and dishwashers.
Product Name | Metering Pump 240strokes/min |
Type/Series | CNPB |
Brand | A well-know German Brand |
Origin | Germany |
Type of drive | solenoid diaphragm |
Capacity | 1-25.2L/h |
Back pressure | 16-1bar |
Liquid end | PVDF/PTFE |
Power supply | 100-230V,50/60Hz |
Adjustment range | 1:40 |
Protection class | IP65 |
Insulation class | F |
Control type | manual,external |
Packaging type | carton |
Delivery time | within 1 week |
Warranty | 1 year from B/L date |
Product Name | Metering Pump 180strokes/min |
Type/Series | CNPB |
Brand | A well-known German Brand |
Origin | Germany |
Type of drive | solenoid |
Capacity | 0.74-18.3L/h |
Back pressure | 16-1.5bar |
Liquid end | PVDF/PTFE |
Power supply | 100-230V,50/60Hz |
Adjustment range | 1:40 |
Protection class | IP65 |
Insulation class | F |
Control type | manual,external |
Packaging | carton |
Delivery time | within 1 week |
Warranty | 1 year from B/L date |
Concept Plus (CNPB) Soleniod Dosing Pump:
If you have any question, please don't hesitate to contact me.
