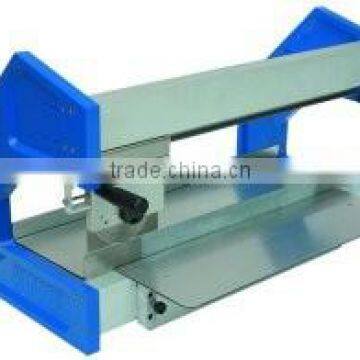

Manual and Motorized PCB SeparatorsThe manual and motorised SEP1 machine is suitable for separating pre-assembled electronic boards. These machines offer a precise, reliable and safe method of separating boards ready for assembly.
The PCB is manually fed between the lower and upper blades using the scoring as reference. By pushing the board horizontally, the blade rotation begins offering a sharp and accurate cut. The blades height is adjustable depending on the thickness of the board.
Two models are available - the SEP1 which is a manual machine and the SEP1M which is motorised.
Features:
Separation length - 380mm
Adjustable speed
Quick and easy blade adjustment for varying thickness board.

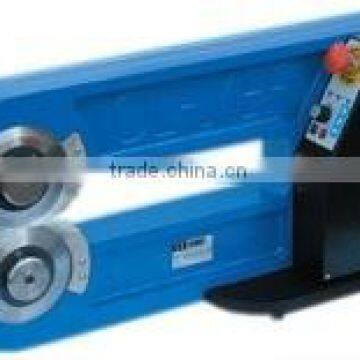

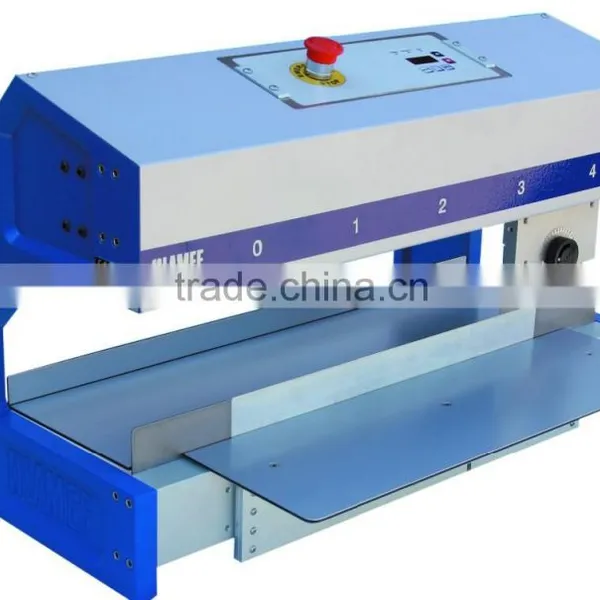

The SEP2 and SEP2M are a range of manual and motorised PC Board Separators designed for score and pre-assembled PCB's. The scored board is placed on the lower linear blade. With the SEP2 Machine the handle is used to move the upper circular while with the SEP2M, the upper blade is controlled by a foot pedal and the length of this run can be programmed through push buttons located on the main control panel. The distance between the upper circulaar blade and lower linear blades can be adjusted on both of these machines. The height of the front and back supporting tables can also be adjusted.
Features:
Separation length - 450mm.
Adjustable speed.
Quick and easy blade adjustment for varying thickness board.
Front and back supporting tables are adjustable.
Customers are welcome to send in PCB's for testing or this machine can be viewed at our demonstration facility.
Spare cutters are available which are quick and simple to change.
