Specifications
lost wax casting partsa.silica sol or water glass process.
b.steel,stainless steel.
c.Weight:0.01-50KG.
d.ISO9001:2008.
lost wax casting parts
a.silica sol or water glass process.
b.steel,stainless steel.
c.Weight:0.01-50KG.
d.ISO9001:2008.
e.Further machining: turning,milling,grinding,drilling and threading.
f.Full inspection according to the drawing.UT,PT available.
g.Softwares for drawing:AUTOCAD,PDF,Solidworks,UG,Pro/E.
h.OEM.
Lost wax casting is also called investment casting, it is a kind of precision casting. We can achieve much better surface quality and higher dimension accuracy by investment casting.
Process |
Investment/Lost wax casting(Silica sol/Waterglass process) |
Specification |
1.Material: Carbon steel/alloy steel/stainless steel. 2.Standard: ASTMDINBSJISGB. 3.Surface finish: shot blasting,acid clean-up,as you require . 4.Weight:0.01-50kg.
|
Production facility |
1.Casting facility: wax injector, medium-frequency induction furnace, box resistance furnace, heat treatment furnace, flame cutting machine, shot-blasting machine, sand-blasting machine. 2.Machining facility: CNC,NC lathe,ordinary machine tools,NC milling machine, polishing machine. |
Heat treatment |
Annealing/Tempering/Normalizing. |
Test facility |
spectrometer, tensile test machine,impact tester, hardness test machine,CMM. |

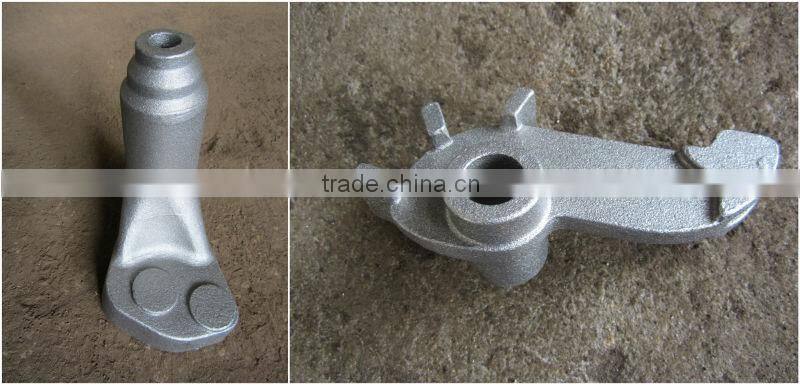

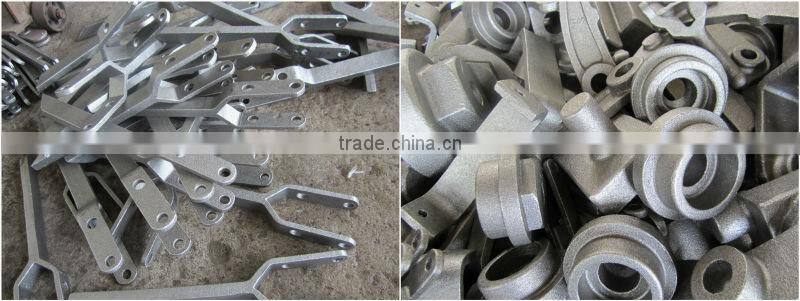

Our products:

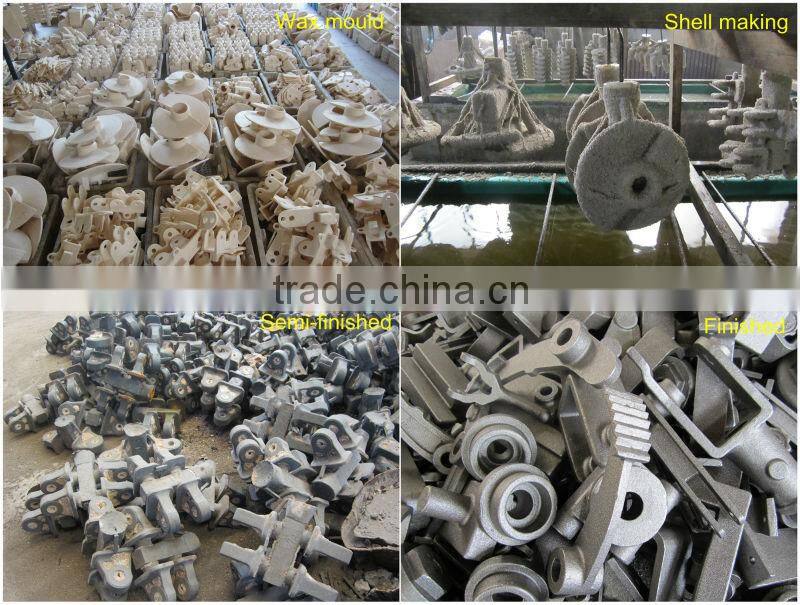

Lost wax casting process:
Machining facility:
Our tests:
Our factory:
We are Alibaba verified supplier!
We have more than 20 years experience in casting products. With our experienced engineers and well-trained staffs, we can well understand your drawings and requirements thus offer professional service.
If you have any question, please feel free to contact us. We look forward to establishing long-term cooperation with you!
Want to start an inquiry?Just check our contact info below and send us your drawings&RFQ!
