Specifications
1. Voltage: AC 200-230V2. Power: 90W
3. Dimensions: 325 x 265 x 150mm (L x W x H)
4. Weight: 13.5kg
5. Warranty: 12 Months
Manufacturers & Distributors, Series 4 Limited, was established in 1988 with the sole aim of offering the best possible quality and price combination of production equipment to the electronics and associated industries. Now occupying 3 large units, we have been able to expand our product range and engineering facilities. We are also proud to work with our new international distributors in Australia, Indonesia and the Middle East. We manufacture and sell a large range of production equipment, electric and pneumatic screwdrivers and other assembly tools.
Product Types:
1. Wire Cutting
2. Wire Feeding Equipment
3. Wire Stripping
4. Enamel Wire Stripping
5. Crimping, etc.
Electric Crimping Machine:
Bench Electric Crimper Using Universal Crimp Dies

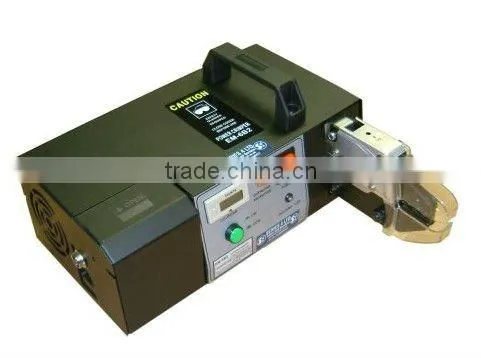

The EC-23 Electric Crimper is a flexible bench top machine capable of crimping a wide range of connectors and offering superb value for money. The design of this unit allows for quick and easy change over of crimping dies and requires no special tools.
This machine comes supplied with 8 crimping dies but what sets the EC-23 apart from other models on the market, is that it will accept most universal crimping die sets. This offers huge versatility and eliminates the need to buy machine specific die sets which are often costly and cannot be used in other tools. Special crimping die sets can also be manufactured if required.
The EC-23 Crimper utilizes a high quality fixed speed motor which delivers high efficiency not only on crimping force but also in crimping speed. This makes this crimper suitable for working medium to high quantities of crimps.

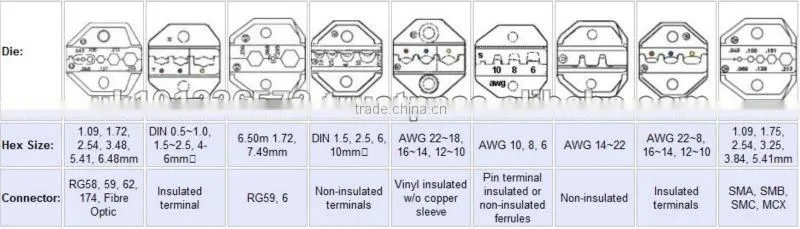

The EC-23 Crimping Machines comes supplied a standard red, yellow, blue crimping die set and also with the following crimping die sets:

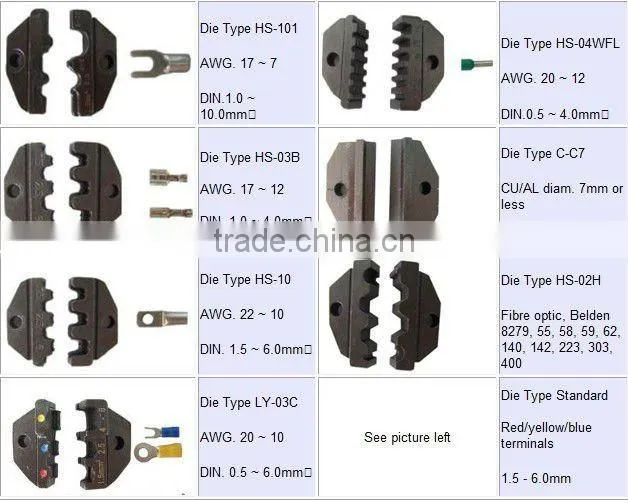

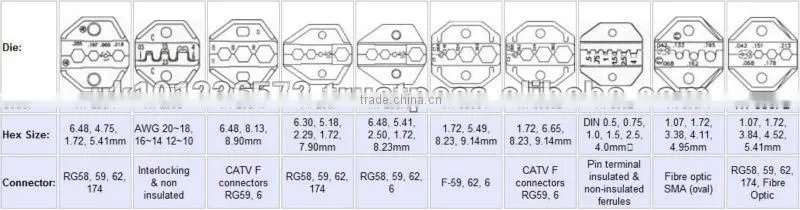

In addition to the 8 crimping die sets supplied with the machine, most universal crimping die sets will also fit. We supply a further range of low cost, high quality crimping die sets, all of which fit easily to the EC-23 and can be purchased individually:
HT-Die Sets:
This item can be viewed at our demonstration facility. Customers are also welcome to send connector samples for crimping die identification and wires and connectors for sampling.
Specification:
| Place of Origin | Hampshire, United Kingdom |
| Brand Name | Series 4 |
| Model Number | EC-23 |
| Maximum Crimping Force | Insulated Terminal 5.5mm |
| Crimping Time | 1.5 SECONDS (60HZ), 1.8 SECONDS (50 HZ) |
| Voltage | AC 200-230V |
| Power Consumption | 90W |
| Dimensions | (L x W x H) 325 x 265 x 150mm |
| Weight | 13.5kg |
| Warranty | 12 Months |
| Minimum Order Quantity | 1 Piece/Pieces |
| Port | Southampton |
| Packaging Details | Standard Packaging |
| Delivery Time | Please enquire |
| Payment Terms | D/P,T/T,Credit Card, Paypal |
| Supply Ability | 100 Piece/Pieces per Month |
