Specifications
1.Size:230 x 190 x 200mm2.Weight:5.0 Kgs
3.Gross Weight:6.0 Kgs
4.Lead Diameter:0.4 to 1.4mm
5.Type: Axial Component Former
Manufacturers & Distributors, Series 4 Limited, was established in 1988 with the sole aim of offering the best possible quality and price combination of production equipment to the electronics and associated industries. Now occupying 3 large units, we have been able to expand our product range and engineering facilities. We are also proud to work with our new international distributors in Australia, Indonesia and the Middle East. We manufacture and sell a large range of production equipment, electric and pneumatic screwdrivers and other assembly tools.
Product Types:
1. Wire Cutting
2. Wire Feeding Equipment
3. Wire Stripping
4. Enamel Wire Stripping
5. Crimping, etc.
Low Cost Standard Axial Component Forming Machine:
- The model TP6-EC is designed for cutting and bending taped axial components.
- There are 5 versions of this machine with different cutting / bending capacities
- This machine will form components with a lead diameter depending on machine version of 0.4mm to 1.4mm diameter.
- Adjustment is a quick and easy process with the tools provided.
- This is a high quality machine using long life cutting discs.
- The only maintenance required is to clean the cutting discs.
- This machine can only be used with the BR6 reel holder accessory.
- For the motorised version see details on the TP6

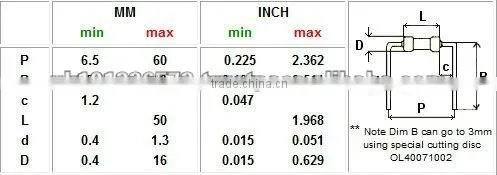

Model TP6/1-EC Standard Version Specifications:

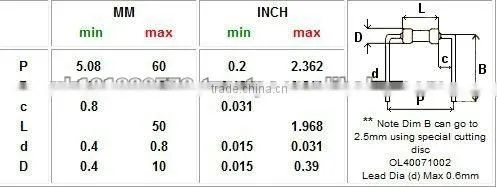

Model TP6/6-EC Reduced Bending - Reduced Cut Variable Pitch Specifications:
Model TP6/4-EC Extra Reinforced Bending Specifications:
Model TP6/7-EC Reduced Bending - Reduced Cut Fixed Pitch Specifications:
Model TP6/5-EC Reduced Cut Variable Pitch Specifications:
Specification:
| Place of Origin | Hampshire, United Kingdom |
| Brand Name | Series 4 |
| Model Number | TP6-EC |
| Size | 230mm x 190mm x 200mm |
| Machine Weight | 5.0 Kgs |
| Gross Weight | 6.0 Kgs |
| Shipping Weight | 5.8 Kg Box Dimensions 300mm x 260mm x 240mm |
| Minimum Order Quantity | 1 Piece/Pieces |
| Port | Southampton |
| Packaging Details | Standard Packaging |
| Delivery Time | Please enquire |
| Payment Terms | D/P,T/T,Credit Card, PayPal |
| Supply Ability | Enough |
