Cold Drawn Seamless Steel Tube/seamless Steel Pipe/steel Tube and Pipe

Cold Drawn Seamless Steel Tube/seamless Steel Pipe/steel Tube and Pipe thumbnail-1
Cold Drawn Seamless Steel Tube/seamless Steel Pipe/steel Tube and Pipe thumbnail-2
Cold Drawn Seamless Steel Tube/seamless Steel Pipe/steel Tube and Pipe thumbnail-3
Cold Drawn Seamless Steel Tube/seamless Steel Pipe/steel Tube and Pipe photo-1
Cold Drawn Seamless Steel Tube/seamless Steel Pipe/steel Tube and Pipe photo-2
Cold Drawn Seamless Steel Tube/seamless Steel Pipe/steel Tube and Pipe photo-3
US$ 1300.00 - 3000.00 MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
0.70, 8.00
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiasye Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Thickness 0.70, 8.00
Section Shape Round
Outer Diameter 5.00 - 60.00 mm
Place of Origin Jiangsu, China
Secondary Or Not Non-secondary
Application Hydraulic Pipe
Technique Cold Drawn
Certification Other, SGS
Surface Treatment Other, plain or galvanized or balck phosphate
Special Pipe Thick Wall Pipe
Alloy Or Not Non-alloy


Specifications

1. Product name: cold drawn seamless steel tubes
2. OD: 5.0--60mm,WT: 0.70—8.0mm
3. material : 10#,20#,16Mn SAE1010, SAE1020, ST35, ST52 etc
4. standard: GB/T3639-2009, DIN2391, EN10305
5. length: usually,4000-5500mm length or random length 3000-5800mm, 12000mm length max
6. heat treatment: BK, BKS, BKW,GBK, NBK (details as below )
7. surface treatment: bare tube with oil; white ZN coated; olive green ZM coated, black phosphated
8. main sizes: (ODxthickness) mm:
    6.00x1.0; 6.00x2.0; 6.00x2.25;
    8.00x1.0; 8.00x2.0; 8.00 x 3.0; 9.52x1.0
    10.00x1.0; 10.00x1.2; 10.00x1.5;10.00x2.0; 10.00 x 3.0;
    12.70x1.0; 12.70x1.3; 15.88x1.2;15.88x1.5; 15.88 x 2.0;
    19.05x1.2;19.05x1.5; 19.05x 2.0; 22.23x1.2;22.23x1.5; 22.23x 2.0

standard schedules
standrad
TDR stanards
steel grade
DIN
DIN1629
ST37/ ST44/ST52
DIN1630
ST37.4/ST44.4/ST52.4
DIN2391-2
ST35/ST45/ST52
GB/T
GB/T8162
10#, 20#,16Mn
GB/T8163
GB/T3639
EN
EN10305-1
E215/235/355/255
EN10305-2
EN10305-4
ASTM
ASTM A822-A450
A822
A179-A450
A179
SAE
SAE J524
SAE J524
JIS
JIS3445
STKM11A,STKM12A/B/C;STKM13A/B/C
ISO
ISO8535
ST35/ST45/ST52
BS
BS3602
CFS360
BS6323
CFS3 /CFS4

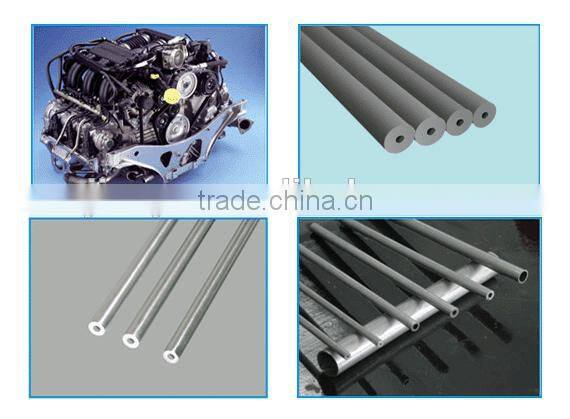

Application:

1. fuel injection lines/nozzles for deisel or gasoline engine;
2. compressed natured gas CNG tube;
3. drive trasnmission: steering column elements;
4. gear shafts, hand brake, front axles, airbag inflators, stabilizers, seat fasteners, front-wheel drive shafts;
5. mechanical structure pipe parts in automobile,motorcycles and vehicle;
6. hydraulic circuits, pneumatic lines and hydraulic suspension;
7. hydraulic cylinders.
