Very Big CNC Machine Tool Casting Base

FOB Price

US$ 0.6 - 0.9 / Piece

1 Piece(Min. Order)

Port Dalian
Payment TermsT/T L/C Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	DTM, OEM
Model Number	With drawing	Application	Machine tool body, column, beam, surface plate, ground rail, etc
Dimensions	Maximum 10x10x5m

Product Description

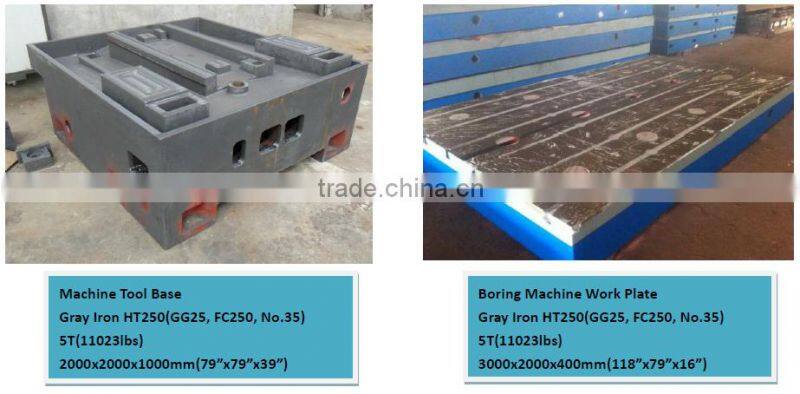

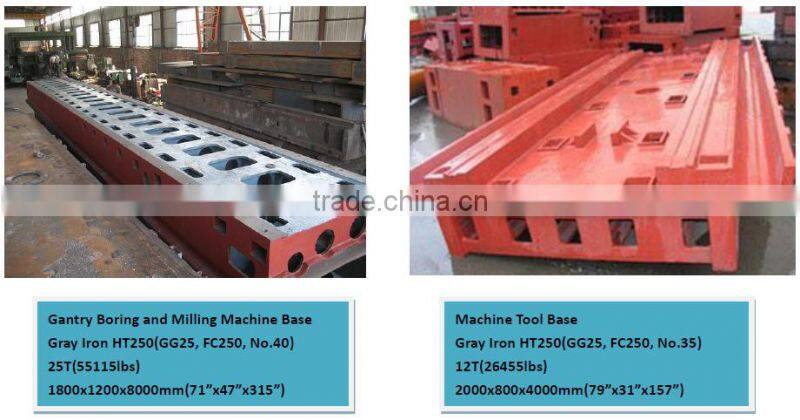

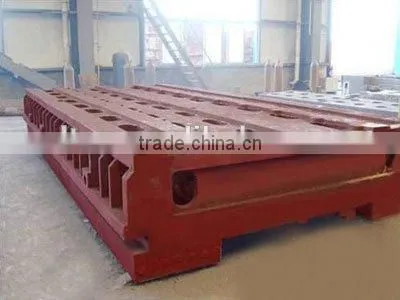

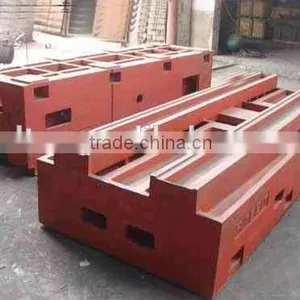

Very Big CNC Machine Tool Casting Base

Material: Gray iron HT200-300 (GG20-30, FC200-300, ASTM No.30-45)
Weight: 100~40000kgs (220~88183lbs)
Maximum Size: 10000x8000x5000mm

Best quality, competitive price!!!

ISO9001:2008

Customized manufacturing according to drawing

Product Description

Process	resin sand casting, lost foam casting
Specification	1.Material:gray iron HT200-300 (GG20-30, FC200-300, ASTM No.30-45). 2.Standard: ASTMDINBSJISGBAS. 3.Surface finish: shot blasting,painting,machining,etc. 4.Weight: 100~40000kgs (220~88183lbs) 5.Maximum Size: 10000x8000x5000mm

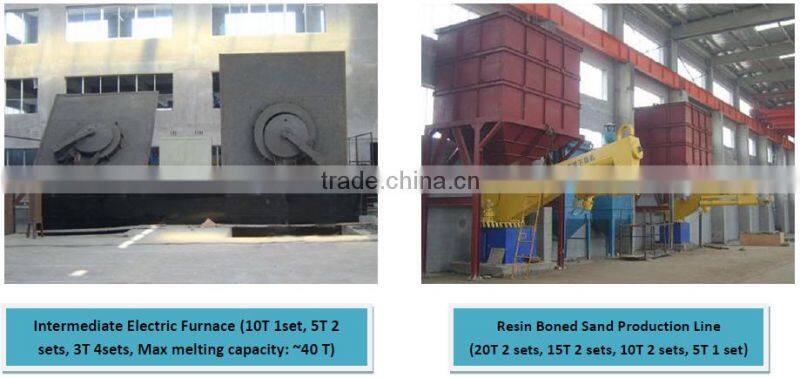

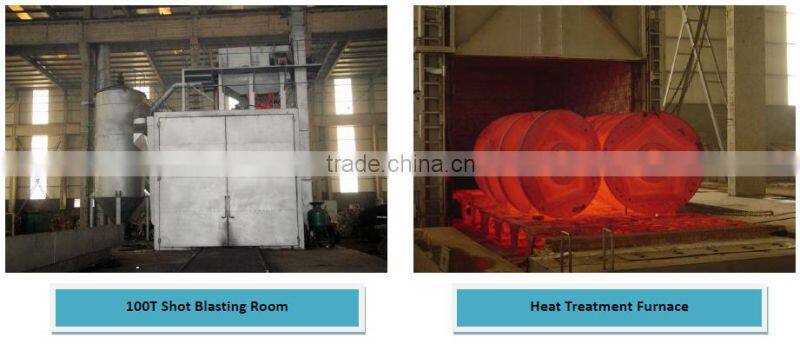

Production facility	1.Casting facility: resin sand production line(20T2,15T2,10T2,5T1), Electric furnace(10T1,5T2,3T*4), heat treatment furnace,shot blasting room,lost foam production line. 2.Machining facility: CNC,boring machine, milling machine, vertical lathe,etc.

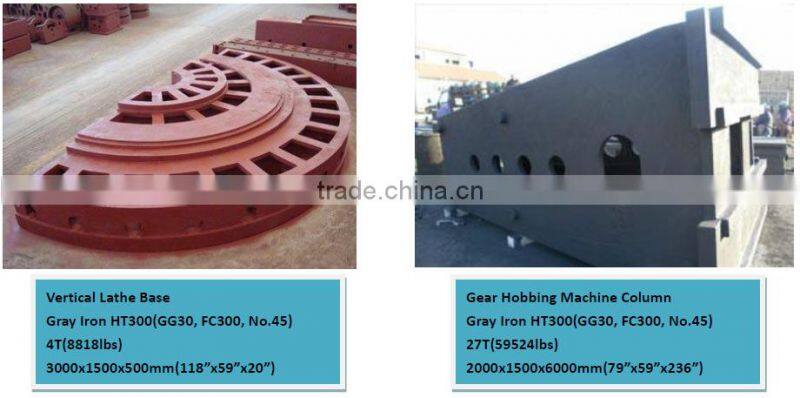

Application	Machine tool body, column, beam, surface plate, ground rail, etc.

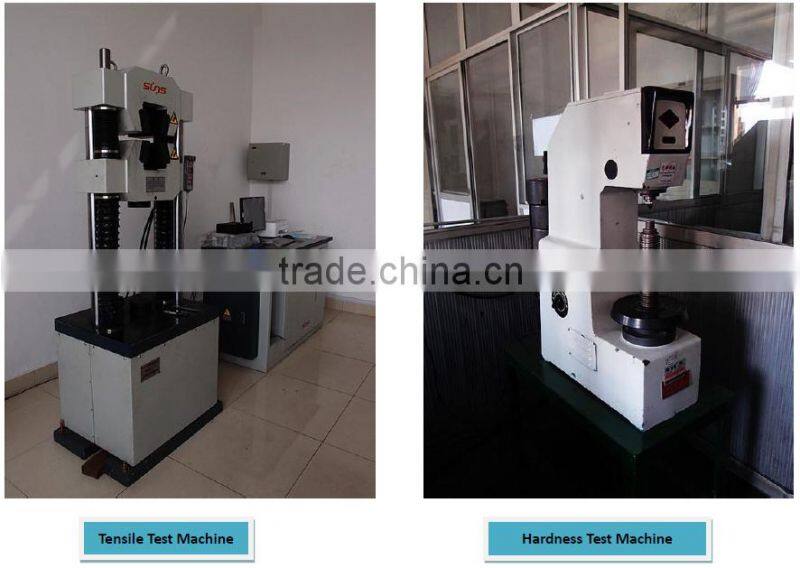

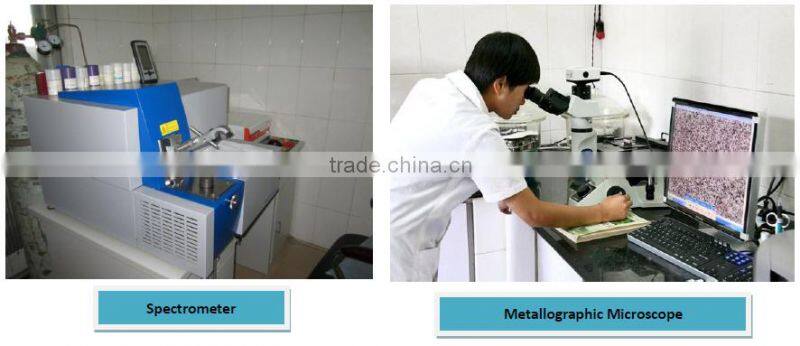

Test facility	spectrometer, tensile test machine, hardness test machine,metallographic microscope.

Very Big CNC Machine Tool Casting Base:

1. Casting Capacity

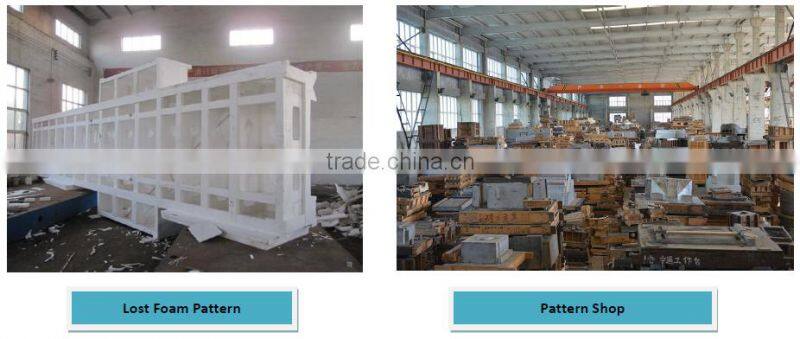

The whole process from plan, wooden pattern, casting to final machining, can be achieved with our state-of-the-art technologies and equipments.

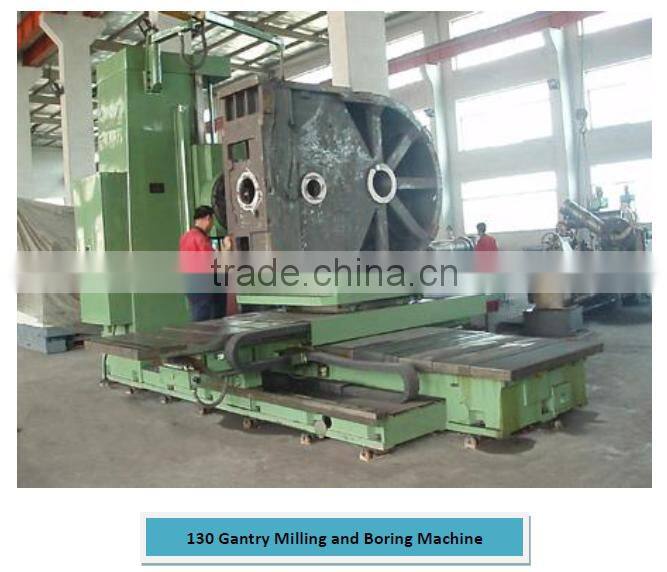

2. Machining Capacity

Machining workshop covers an area of 6000m2, equipped with machining tools such as gantry mil-ling and boring machine, digital lathe, gantry boring and planer machining tools, one arm planner and normal lathe, totally more than 50 sets.

3. Testing

Testing Lab Area: 510m²

Chemical Composition
Mechanical Property

Tensile
Hardness

Metallographic
Dimension Check

Our Services

Quality is always our top priority in our business. We have excellent quality control system and professional quality engineers. We believe the best way to avoid quality problems is not to let any product with quality issue out of the factory. At the same time, we provide 1 year quality guarantee(from B/L date).
