4 prong furniture insert t nut ,zinc plated (DIN1624)

 4 prong furniture insert t nut ,zinc plated (DIN1624)

1.Material: Carbon steel, alloy steel. Stainless steel

2.Standard: DIN 557/DIN562/DIN798/JIS B1163
3.Grade: 4, 6, 8, 10 etc
4.Surface Finish: Zinc plated. Black, plain, hot dipped galvanized, etc
5.Size: From M6-M24
6.finish:black ,plain,zinc ,plain,etc

7.OEM accepted

petitive price and high quality

9.main market: Italy,England,Russia,Turkey,America,Canada,Brazil, Argentina,Peru,Ecuador,South Africa, Australia, New Zealand, Iran, etc

 10. Application

Sometimes old T-Nuts become damaged with use or are lost when furniture is moved. Damaged or lost T-Nuts need to be replaced. T-Nuts provide the nut base into which the hanger bolt of a furniture leg may be screwed. The hanger bolt screws into the T-Nut and extends up into a cavity predrilled to sufficient width and depth to contain the screwed in hanger bolt.
11. Note about Size
The size of the hanger bolt determines what the size the T-Nut needs to be. These T-Nuts fit the Metric Size M8 Hanger Bolts. It is important to select the proper size T-Nuts for your hanger bolts.
12. Installing the T-Nut
Select the location for the T-Nut installation
If a cavity is already present for the screwed in hanger bolt, all that needs to be done is to tap the T-Nut into the proper location with the sleeve of the T-Nut extending into the already present cavity.
If no cavity is present for the sleeve of the T-Nut and the hanger bolt, a new cavity will need to be drilled at the proper location. After the cavity is drilled, then the T-Nut may be tapped into the installation site.
The furniture leg is then securely screwed into the T-Nut and the installation is complete

size:

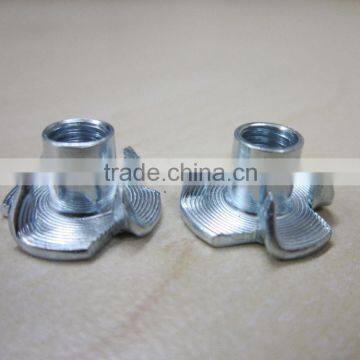

Photo:
