din980v all metal lock nut m8 (DIN980)
Brief introduction for DIN980:
| name: | DIN 980V prebailing torque lock nut (DIN980) |
| size | m3-m24 |
| material | carbon steel (A3,1015,1018,#45,40CR),stainless steel (304/316,etc) |
| hex | 5.5-36mm |
| height | 3.7-24mm |
| finishing | zinc,nickel,plain,black,H.D.G.,darcromet,etc |
| Class | 4.8,6.8,8.8,10.8,etc |
| MOQ: | 10000cs |
| packing |
1.bulking packing :15-25kg/carton,48 carton/pallets ,about 800kg, carton size :25x25x12cm 2.small box packing :50-1000pcs/box, then carton ,then pallets ,48carton/pallets 3.customer logo and box can be made |
| OEM | accepted |
| price | FOB ,EXW,CIF ,CNF,FCA,etc |
| lead time | 15-45days after got your 30% deposit |
| another related products | hex nuts ,cap ,nuts ,flange nuts,long nuts ,bolts ,pin ,screw,washers ,retaining rings/circlips ,etc |
1.Material: Carbon steel, alloy steel. Stainless steel
2.Standard: DIN936/DIN937/DIN439/DIN 557/DIN562/DIN798/JIS B1163
3.Grade: 4, 6, 8, 10 etc
4.Surface Finish: Zinc plated. Black, plain, hot dipped galvanized, etc
5.Size: From M3-M30
6.finish:black ,plain,zinc ,plain,etc
7.OEM accepted
petitive price and high quality
9.main market: Italy,England,Russia,Turkey,America,Canada,Brazil, Argentina,Peru,Ecuador,South Africa, Australia, New Zealand, Iran, etc
Drawing :
| size | p | s | m nin | h max | e min |
| m3 | 0.5 | 5.5 | 1.65 | 3.7 | 6.01 |
| m4 | 0.7 | 7 | 2.2 | 4.2 | 7.66 |
| m5 | 0.8 | 8 | 2.75 | 5.1 | 8.79 |
| m6 | 1 | 10 | 3.3 | 6 | 11.05 |
| m8 | 1.2 | 13 | 4.4 | 8 | 14.35 |
| m10 | 1.5 | 17 | 5.5 | 10 | 18.9 |
| m12 | 1.75 | 19 | 6.6 | 12 | 21.1 |
| m16 | 2 | 24 | 8.8 | 16 | 26.75 |
| m20 | 2.5 | 30 | 11 | 20 | 29.56 |
| m24 | 3 | 36 | 13.2 | 24 | 32.95 |

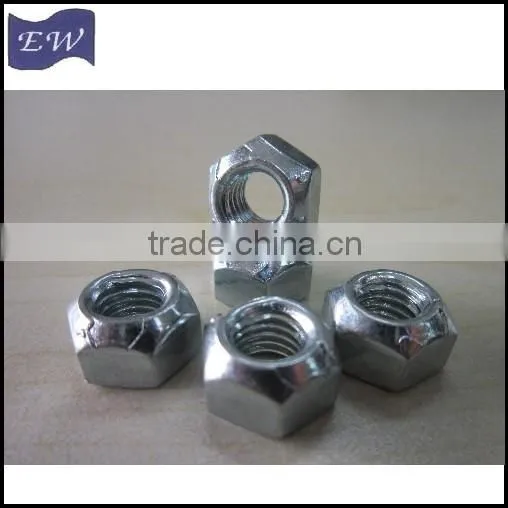

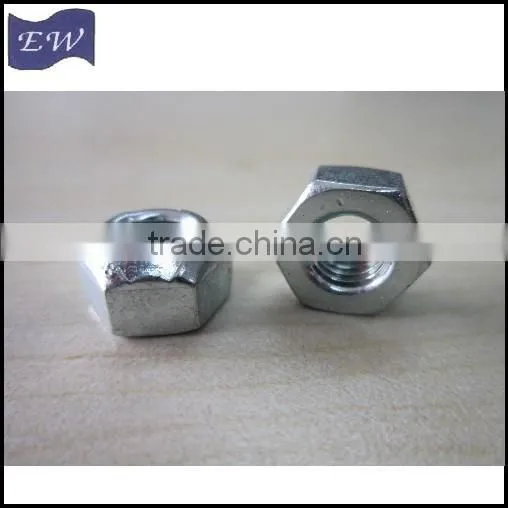

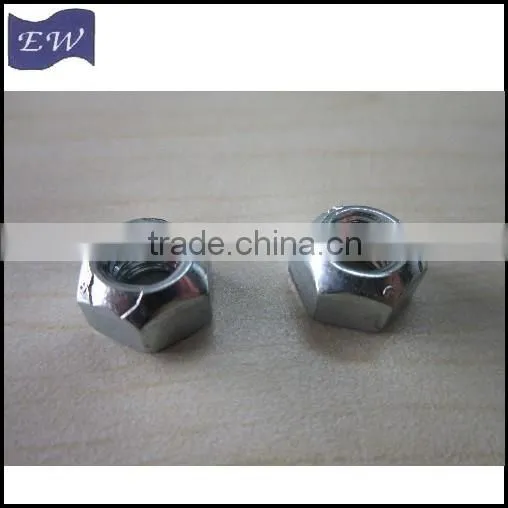

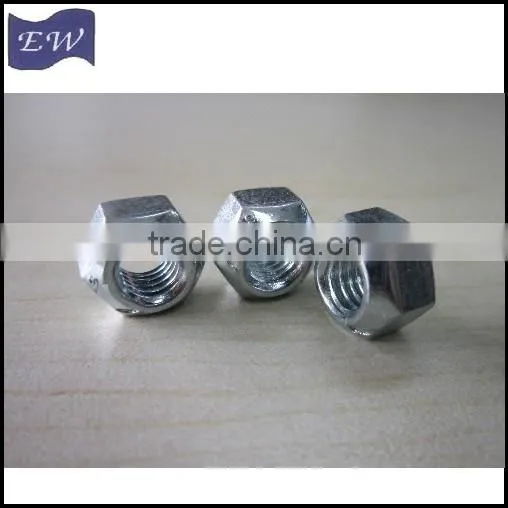

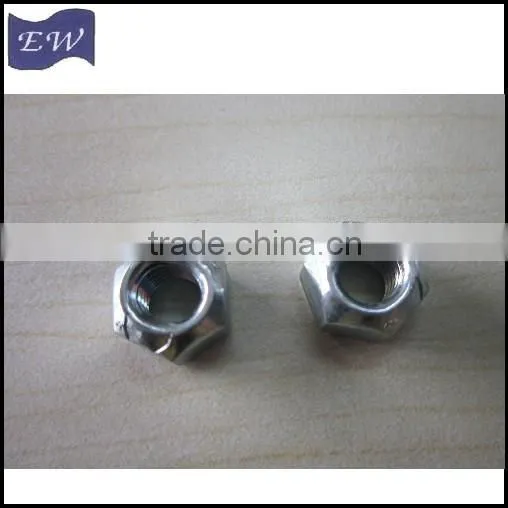

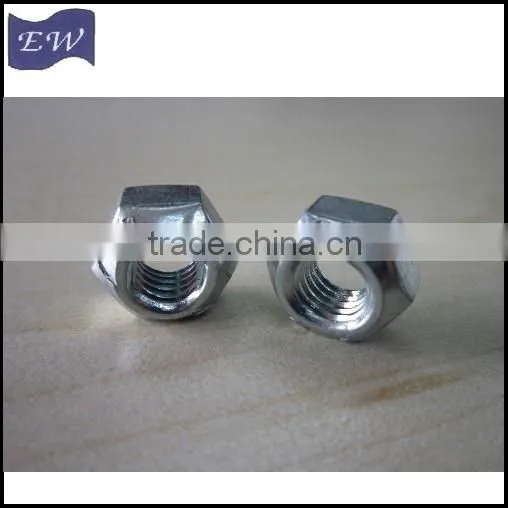

Photo:
-Packing:
1.packing:small box /bulking packing/roll packing+carton+pallets
Usually,48cartons /pallets
-Shipping
1.by express: DHL,FEDEX,UPS,TNT,ARAMEX,etc
2.by sea
3.by air
1.sample :free sample is ok
2.make your logo label
3.packing as your requirements
4.OEM can be accepted
petitive price and high quality
1.Question: what's you material, OEM is ok ?
Answer:we have carbon steel and stainless steel material , any material can make as your requirements .
OEM is accepted .if large qty there is no need mould fee .
2.Question: free sample is ok ?
Answer:sample for standard is free. sample fee is need for non-standard . but freight you need to pay for it .
of course , you can save the sample fee and freight if you place the order . special sample will send you to test. then after confirmed large prouction will start.
3.Question:How is your packing ?
Answer:usually about inner packing we have bulking packing(polybag packing) ,roll packing ,small box packing ,then put into the carton , last packed into the pallets .
4.Question: How is your quality.
Answer: we can offer you the related material report or quality export as your requirement.
Sample can offer you to test. about the the quality we can promise you the quality after the goods selled six month . if some wrong happens cause the goods quality ,we will offer you the best solution.
Any questions please send us the email or call me . Thanks and have a nice day!
