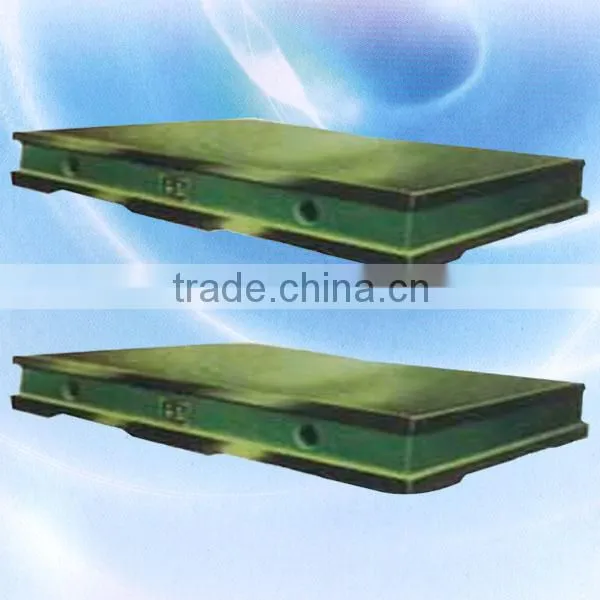

Help CenterLapping Surface Plate
Related Products
Specifications
product : surface plate , lapping surface platecast iron base slab is used for assemble, lineation, inspect, boring machine
product : surface plate , cast iron surface plate,lapping surface plate
cast iron base slab is used for assemble, lineation, inspect, boring machine and weld . you can choose the suitable size.
1.the cast iron base slab is made according to GB4986-85,its used for assemble, lineation , inspect , boring machine ,skive weld.
2.the precision is up to 3 level ,rigidity is HB180-220
3.the material is HT200
4.the size is very much , you could choose arbitrariness
|
Specification mm |
Precision Grade um |
||||
00 Class |
0 Class |
1 Class |
2 Class |
3 Class |
|
100 x 100 |
2 |
4 |
8 |
16 |
|
150 x 100 |
2 |
4 |
8 |
16 |
|
200 x 100 |
2.5 |
5 |
10 |
20 |
|
200 x 200 |
2.5 |
5 |
10 |
20 |
|
250 x 250 |
3 |
5.5 |
11 |
22 |
|
300 x 200 |
3 |
6 |
12 |
24 |
|
300 x 300 |
3 |
6 |
12 |
24 |
|
400 x 300 |
3 |
6 |
12 |
24 |
|
400 x 400 |
3 |
6 |
12 |
24 |
|
500 x 300 |
3.5 |
6 |
12 |
24 |
|
500 x 350 |
3.5 |
6 |
12 |
24 |
|
500 x 400 |
3.5 |
6 |
12 |
24 |
|
500 x 450 |
3.5 |
7 |
14 |
28 |
|
500 x 500 |
3.5 |
7 |
14 |
28 |
|
600 x 400 |
3.5 |
7 |
14 |
28 |
|
600 x 450 |
3.5 |
7 |
14 |
28 |
|
600 x 500 |
4 |
8 |
16 |
32 |
80 |
700 x 500 |
4 |
8 |
16 |
32 |
80 |
800 x 600 |
4 |
8 |
16 |
32 |
80 |
900 x 600 |
4 |
8 |
16 |
32 |
80 |
1000 x 350 |
4 |
8 |
16 |
32 |
80 |
1000 x 750 |
4.5 |
9 |
18 |
36 |
90 |
1000 x 800 |
4.5 |
9 |
18 |
36 |
90 |
1000 x 1000 |
5 |
10 |
20 |
39 |
96 |
1200 x 8000 |
5 |
10 |
20 |
39 |
96 |
1200 x 1000 |
5 |
10 |
20 |
39 |
96 |
1500 x 300 |
5 |
10 |
20 |
39 |
96 |
1500 x 500 |
5 |
10 |
20 |
40 |
100 |
1500 x 1000 |
6 |
12 |
24 |
48 |
120 |
1500 x 1500 |
6 |
12 |
25 |
50 |
125 |
