Help Centerir Receiver Extender Cabl DX1--A
Related Products
Specifications
1.Ir receiver cable2.ir receiver cable with CE,ROHS certificate
3.use for all av player products.
4.long receive distance

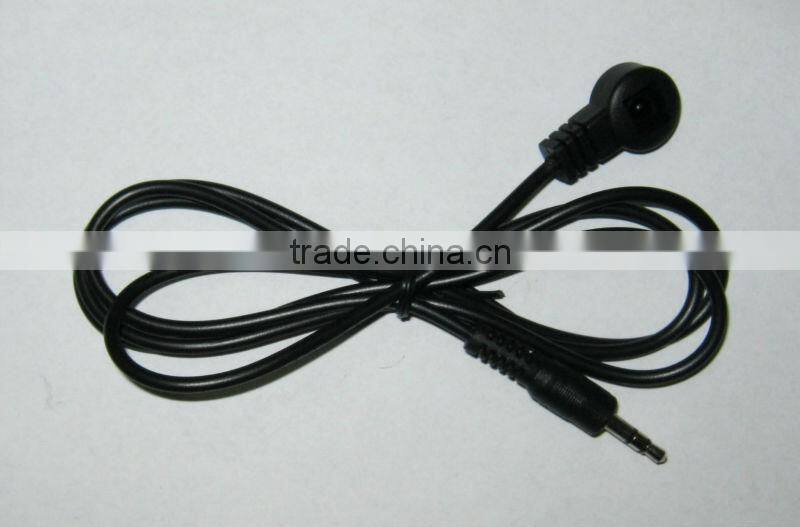

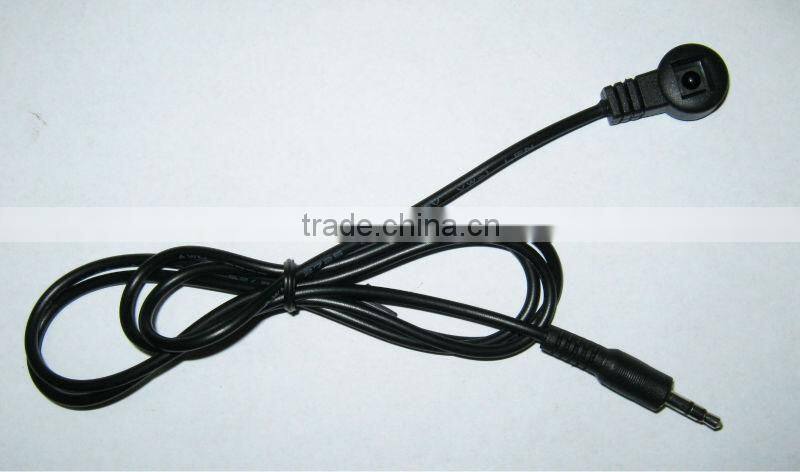

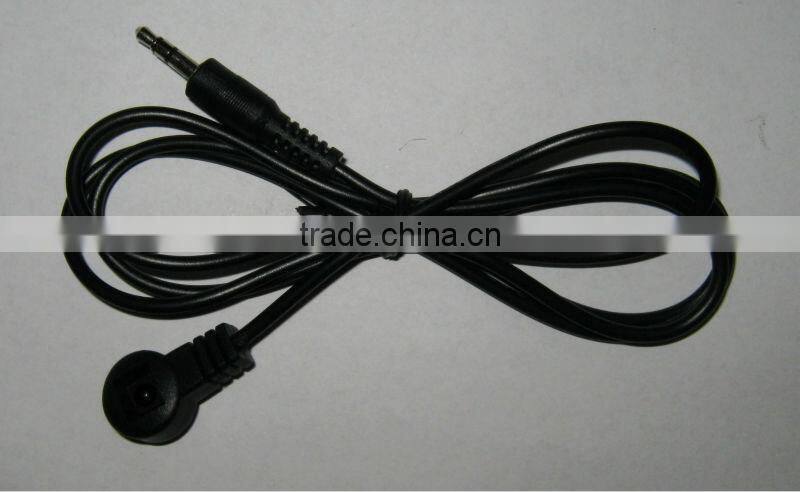

ir receiver extender cabl DX1--A
Technology parameter
SIZE: 29.2(L)X12.8 (W)X9.1(H)mm
WORKING VOLTAGE: 2.7-5.5V(DC)
RECEIVE DISTANCE: 15-18 Meter

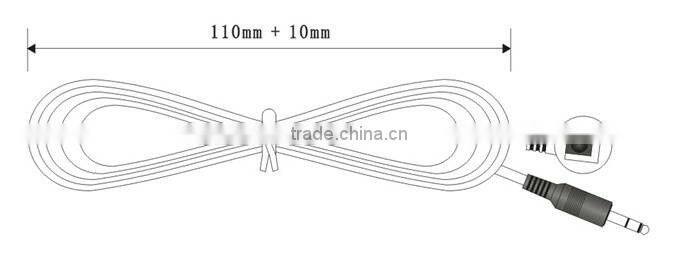

WIRE LENGTH: 90-500cm can option

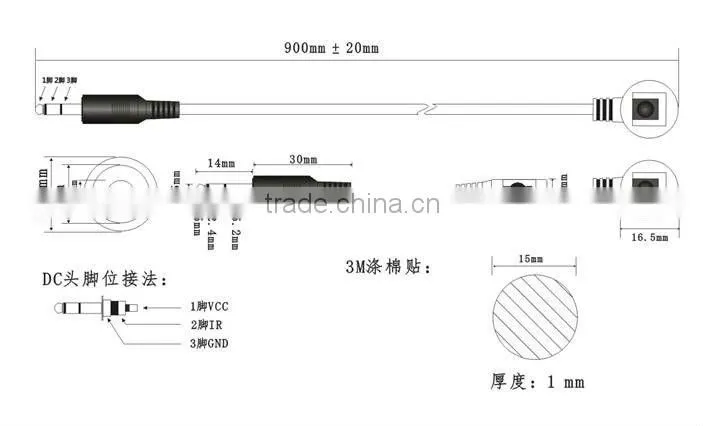

DC Socket: DC 3.5MM
ir receiver extender cabl DX1--A is a wire infrared receive unit , the key component in the inside part is full integrated IR Receiver . This component packs high –performance PIN Photo Diode together with IC chip which has the function of enlargement and demodulation by epoxy resin ,By this , ir receiver extender cabl DX1--A can resist various kinds of visiable light interferences and electromagnetic interference . With the interior part set with power supply IC filter circuit , it can effectively solve the interference produced through extending the receiving circuit . The ir receiver extender cabl DX1--A can makes remote control more flexbile and more convenient.
ir receiver extender cabl DX1--A Products instruction
Perfect design, small size with plastic cover, the wire length and the socket can design as customer reqrirement.
ir receiver extender cabl DX1--A Be suitable products
DVB-S,DVB-T,mobile TV,car audio system,computer,media player etc.
ir receiver extender cabl DX1--A The Limit Parameters
Item |
Symbol |
Limit Date |
Unit |
Power Supply Voltage |
Vcc |
6.0 |
V |
Voltage Out |
Vo |
6.0 |
V |
Using Temperature |
Topr |
-10--+60 |
°C |
Temperature in Store |
Tstg |
-20--+75 |
°C |
ir receiver extender cabl DX1--A The Basic Parameters
Item |
Symbol |
The Minimum |
The Standard |
The Maximum |
Unit |
Current Consumption |
Icc |
|
1 |
|
Ma |
High Level Out |
Voh |
Vcc-0.25 |
Vcc |
|
V |
Low Level Out |
Vol |
|
|
0.25 |
V |
High Level Pulse Width Out |
Twh |
450 |
600 |
750 |
μ s (*1) |
Low Level Pulse Width Out |
Twl |
450 |
600 |
750 |
μ s (*2) |
Carrier Frequency |
Fo |
|
33—56 |
|
kHz(*3) |
Wave Length of The Working Center |
λp |
|
940 |
|
n m |
Receive Distance |
L |
8.0 |
|
|
m (*4) |
Receive Angle |
θ |
|
±45 |
|
deg |
Power Supply Voltage |
Vcc |
2.7 |
|
5.5 |
V |
