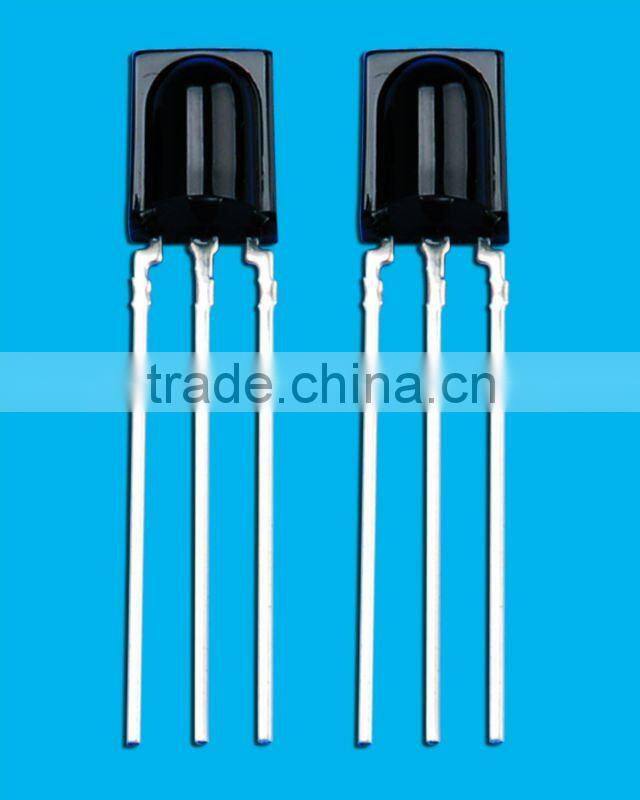

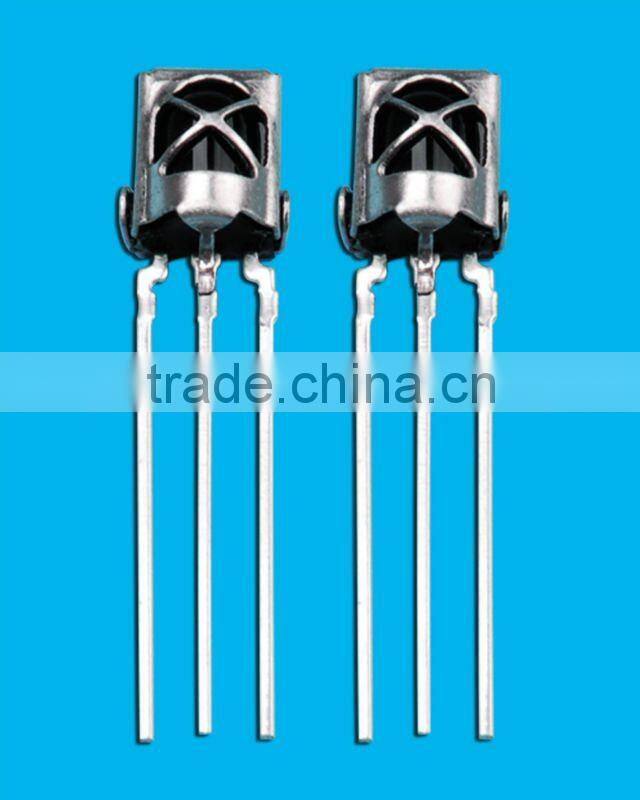

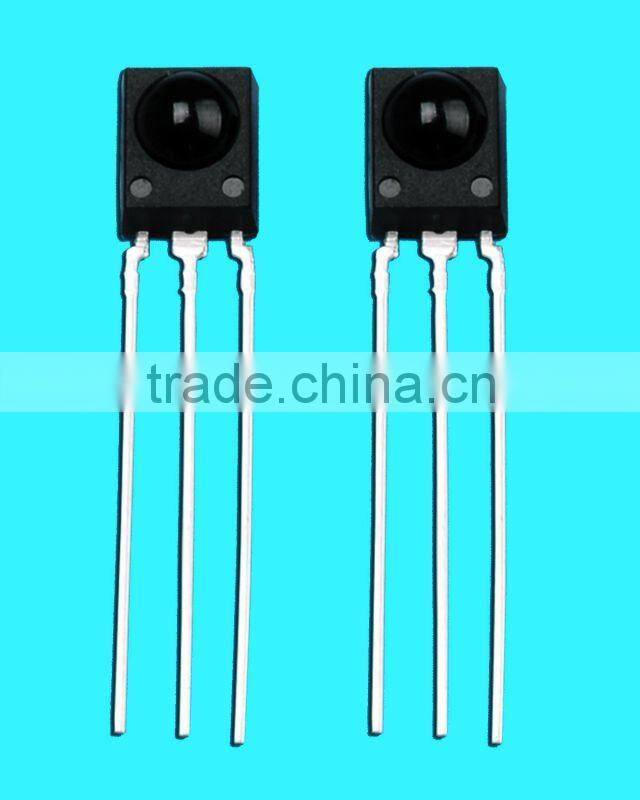

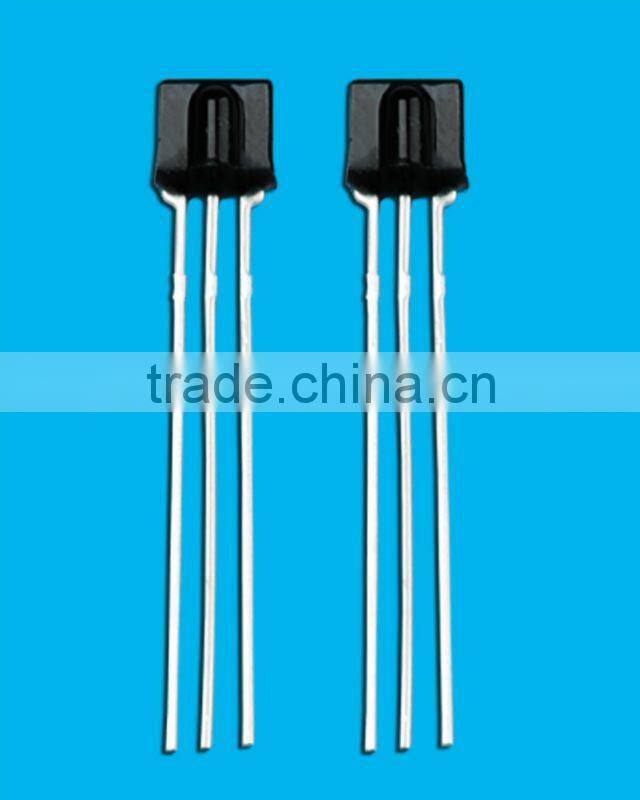

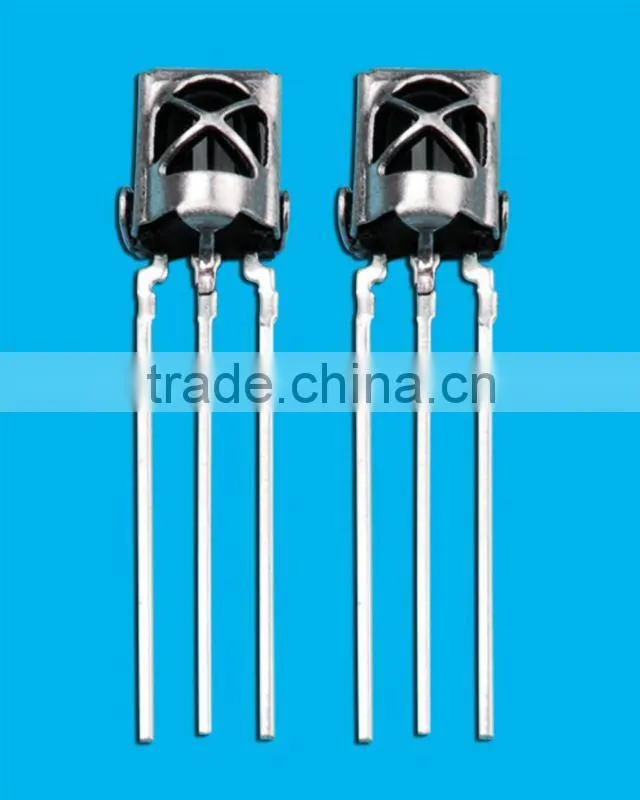

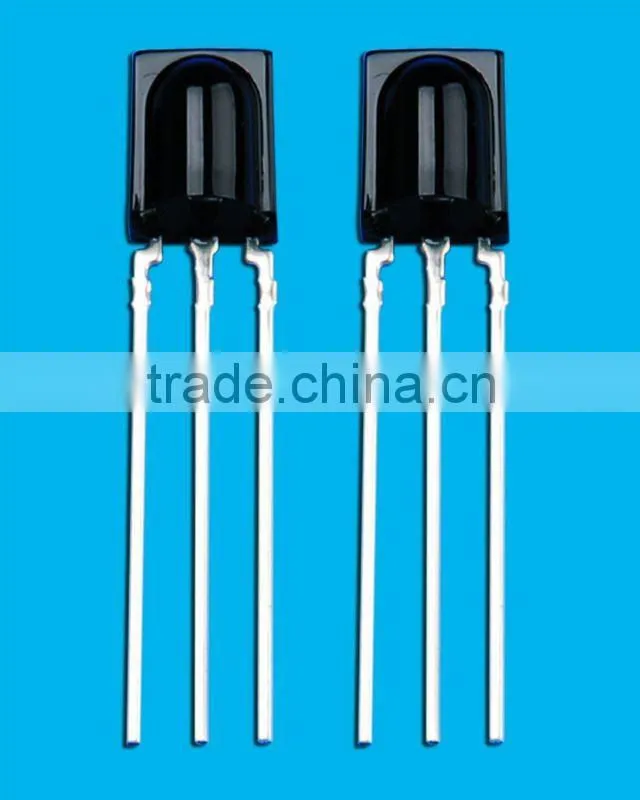

ir infrared transmitter and receiver module LF0038R
- 2147483647 Piece / Pieces per Month
- sz
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LF | Model Number: | LF0038R |
Usage: | Position Sensor | Theory: | Hall Sensor | Output: | Digital Sensor |
Product Description
1.mini ir receiver
2.infrared receiver with CE,ROHS certificate
3.use for all av player products.
4.long receive distance
LF0038V infrared receiver
Technology parameter
SIZE: 5.4(L)X3.0 (W)X5.4(H)mm
WORKING VOLTAGE: 2.7-5.5V(DC)
RECEIVE DISTANCE: 15-18 Meter
FEET SPACE BETWEEN: 2.54mm
FEET LENGTH: 23mm
LF0038V infrared receiver products instruction
Round shape receive from the top side, built-in CMOS IC, strong products compatible.
LF0038V infrared receiver suitable products
Remote control toys,car audio,portable DVDCDMP4 palyer and other products receive from the top side etc.
1.ir receiver module
2.ir receiver module with ROHS certificate
3.use for all av player products.
4.long receive distance
ir infrared transmitter and receiver module Technology parameter
SIZE: 10.0(L)X5.0 (W)X10.0(H)mm
WORKING VOLTAGE: 2.7-5.5V(DC)
RECEIVE DISTANCE: 15-18 Meter
FEET SPACE BETWEEN: 2.54mm
FEET LENGTH: 23mm
ir infrared transmitter and receiver module is a small infrared receive unit , the key component in the inside part is full integrated IR Receiver . This component packs high –performance PIN Photo Diode which has the function receiver and output digital signal,By this , ir infrared transmitter and receiver module can resist various kinds of visiable light interferences and electromagnetic interference . With the interior part set with power supply IC filter circuit , it can effectively solve the interference produced through extending the receiving circuit . The ir infrared transmitter and receiver module can makes remote control more flexbile and more convenient.
ir infrared transmitter and receiver module Products instruction
Round shape receive from the top side, built-in CMOS IC, strong products compatible.
Be suitable products
Remote control toys,digital receiver, other products receive from the digital equipment etc.
ir infrared transmitter and receiver module The Limit Parameters
Item | Symbol | Limit Date | Unit |
Power Supply Voltage | Vcc | 6.0 | V |
Voltage Out | Vo | 6.0 | V |
Using Temperature | Topr | -10--+60 | °C |
Temperature in Store | Tstg | -20--+75 | °C |
ir infrared transmitter and receiver module The Basic Parameters
Item | Symbol | The Minimum | The Standard | The Maximum | Unit |
Current Consumption | Icc | 1 | Ma | ||
High Level Out | Voh | Vcc-0.25 | Vcc | V | |
Low Level Out | Vol | 0.25 | V | ||
High Level Pulse Width Out | Twh | 450 | 600 | 750 | μ s (*1) |
Low Level Pulse Width Out | Twl | 450 | 600 | 750 | μ s (*2) |
Carrier Frequency | Fo | 33—56 | kHz(*3) | ||
Wave Length of The Working Center | λp | 940 | n m | ||
Receive Distance | L | 8.0 | m (*4) | ||
Receive Angle | θ | ±45 | deg | ||
Power Supply Voltage | Vcc | 2.7 | 5.5 | V |
LF0038V infrared receiver is a small infrared receive unit , the key component in the inside part is full integrated IR Receiver . This component packs high –performance PIN Photo Diode together with IC chip which has the function of enlargement and demodulation by epoxy resin ,By this , LF0038V infrared receiver can resist various kinds of visiable light interferences and electromagnetic interference . With the interior part set with power supply IC filter circuit , it can effectively solve the interference produced through extending the receiving circuit . LF0038V infrared receiver can makes remote control more flexbile and more convenient.
