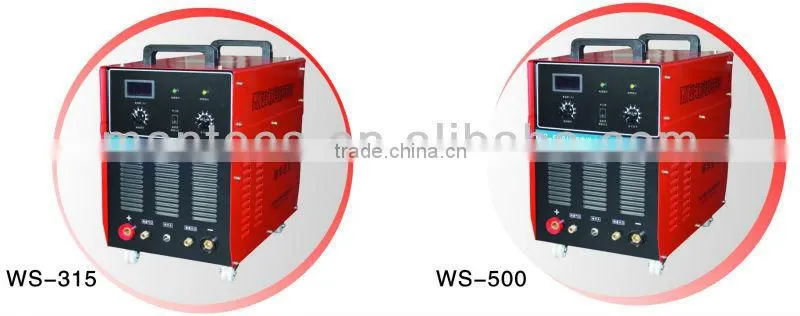

WS SERIES IGBT INVERTER DC ARGON WELDING MACHINE

Name: WS SERIES IGBT INVERTER DC ARGON WELDING MACHINE
Brand: MANTOCA
SKU: 105557495

Negotiable MOQ: 30 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

MANTOCA

Wuxi Mantoca International Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name MANTOCA

Model Number WS315/400/500

Specifications

Applicable to welding of carbon steel,stainless steel,alloyed steel,coppe,titanium etc.

WS SERIES IGBT INVERTER DC ARGON WELDING MACHINE

Model number:	WS-315	WS-400	WS-500	WS-630
Input Power Voltage(V)	3φ 380V±10%	3φ 380V±10%	3φ 380V±10%	3φ 380V±10%
Frequency(Hz)	50/60hz	50/60hz	50/60hz	50/60hz
Rated Input Power Capacity(KVA)	9 KVA	13 KVA	18.5 KVA	25 KVA
No-load voltage (V)	64 V	72V	72V	80V
Reglulating range current(A)	10-315 A	10-400 A	20-500 A	30-630 A
Rated Duty cycle(%)	60%	60%	60%	60%
Efficiency(%)	85%	85%	85%	85%
Power Factor(COSφ)	0.93	0.93	0.93	0.93
Insulation Class	F	F	F	F
Protection Class of Case	IP21	IP21	IP21	IP21
Weight(Kg)	42 kgs	48 kgs	55 Kgs	58 Kgs
Dimensions(mm) L.W.H.	590x350x570	590x350x570	590x350x570	590x350x570


Main features:
Using tungsten electrodes and argon gas as protective medium. This welder is applicable to welding of carbon steel,stainless steel,alloyed steel,coppe,titanium and many others use acid/alkaline and all different kinds of welding electrode. During welding, the crater is protected by argon gas from oxidation effectively. This welder is noted for high-quality welding seams and good forming performance.
