WSM Series Inverter DC Pulsed TIG Welding Machine

Name: WSM Series Inverter DC Pulsed TIG Welding Machine
Brand: MANTOCA
SKU: 105557535

Negotiable MOQ: 30 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

MANTOCA

Wuxi Mantoca International Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name MANTOCA

Model Number WSM160/200/250/315/400/500

Specifications

Applicable to carbon steel, stainless steel, copper, steel alloy and titanor metal etc.

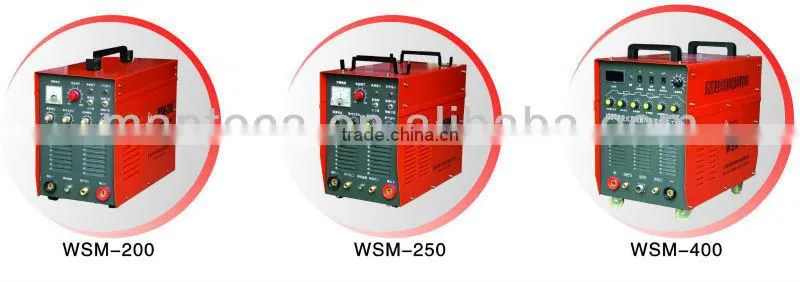

WSM Series Inverter DC Pulsed TIG Welding Machine

Specifications
Model	WSM-160	WSM-200	WSM-250	WSM-315	WSM-400
Input Power Voltage(V)	1φ 220V±10%	1φ 220V±10%	1φ 220V±10%	3φ 380V±10%	3φ 380V±10%
Rated Input Power Capacity(KVA)	5.5KVA	6.6 KVA	7.2 KVA	8.4 KVA	12 KVA
No-Load Voltage(V)	56 V	56 V	56 V	56 V	56 V
Output Current Range(A)	10-160A	10-200A	20-250A	20-315 A	20-400A
Pulse Frenquency(Hz)	0.5-200	0.5-200	0.5-200	0.5-200	0.5-200
Pulse Rate(%)	10-90%	10-90%	10-90%	10-90%	10-90%
Rated Duty Cycle(%)	60%	60%	60%	60%	60%
Efficiency	85%	85%	85%	85%	85%
Power Factor(COSφ)	0.93	0.93	0.93	0.93	0.93
Protection Class of Case	IP21S	IP21S	IP21S	IP21S	IP21S
Insulation Class	F	F	F	F	F
Dimensions(mm) L.W.H.	420×230×370	420×230×370	520×270×440	590×350×570	590×350×570
Weight (Kg)	17 kgs	19kgs	25 kgs	43 kgs	45 kgs

MAIN FEATURES:
1. HF Arc-staring, pulse control and strong welding permeability.
2. Be satisfied requirements of welding process.
3. Be able to weld carbon steel, stainless steel, copper, steel alloy and titanor metal etc.
4. Suitable for fitting up stainless steel, patching kitchen equipment and moulder.
5. Adjustable pulse control, be able to weld automatically.
6. Be able to be equipped with round water-cooling equipment.
