Automatic Glass Bottle Spirit/Wine Filling Plant

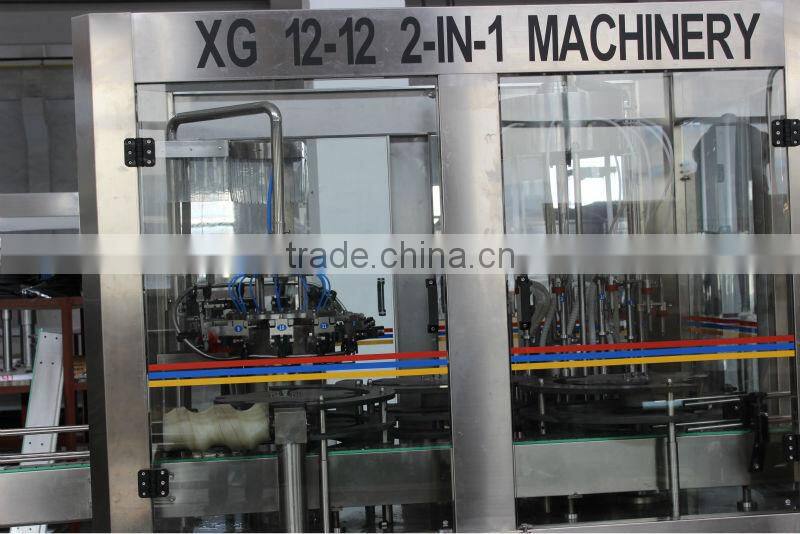

Automatic Glass Bottle Spirit/Wine Filling Plant photo-1
US$ 10,000 - 36,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220/380/415V
Power 3kw
Place of Origin Jiangsu, China
Brand Name Wanjin
Model Number XGF
Dimension(L*W*H) 2650*1900*2100
Weight 4t
Certification CE/SGS
After-sales Service Provided Engineers available to service machinery overseas

Glass Bottle Spirit/Wine Filling Plant



glass bottle wine filling machine



1.Rinsing machine

-Rotative rinsing turret one treatment, fixed nozzles, with grippers.

-The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.

-After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.



2. Filling machine

-The starwheels drive the bottles always by the neck through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.

- The filling valves are fully made of stainless steel with food grade, sterilization-resisting plastic gaskets. The valves are secured to the bowl and allow easy assembly and disassembly.



3. Capping machine

-Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles

-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.

-The heads are raised and lowered by the action of a follower that is riding on a shaped cam

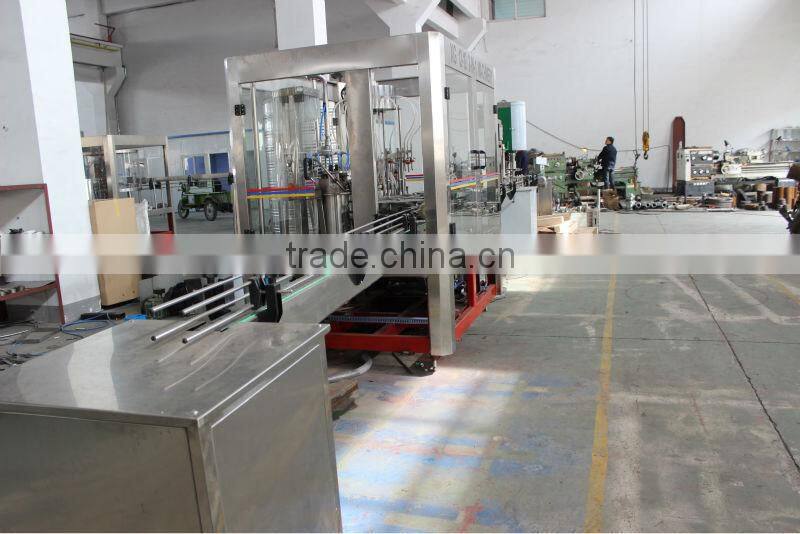

 Automatic Glass Bottle Spirit/Wine Filling Plant

glass bottle wine filling machine   glass bottle wine filling machine  glass bottle wine filling machine   glass bottle wine filling machine glass bottle wine filling machine   glass bottle wine filling machine  glass bottle wine filling machine glass bottle wine filling machine   glass bottle wine filling machine  glass bottle wine filling machine glass bottle wine filling machine



Automatic Glass Bottle Spirit/Wine Filling Plant













 form



Model

XGF16-12-6

XGF18-18-6

XGF24-24-8

XGF32-32-10

Production capacity(500ml)(b/h)

3000-4000

4000-6000

8000-10000

12000-15000(0.5L)

Polyester bottle standard(mm)

Φ40-Φ80;
130-280

BottleDiameter

Φ50-Φ100;

Height:150-320



Suitable cap shape

Plastic Screw Cap

Water pressure of washing bottle(Mpa)

0.18

Water consumption for washing bottle

800

1600

2500

3500

Spraying position

5

5

6

12

Dripping bottle position

3

3

3.5

7

Gas source pressure(Mpa)

Normal pressure

Gas consuption(m)/min

0.3

0.3

0.4

0.5

Total power(kw)

3

5

8

10

Total weight(kg)

3000

4000

6000

8000

Overall dimension(L×W×H)

2100×1500×2200

2450×1800×2200

2750×2180×2200

3500×2200×2250



The  capacity  complete  depend  on  the  customer  demands  .We  welcome  customer  to  visit  our  company  !At  any  time  ,you  will  see  the  machine  working  and  running  in  our  factory  !

glass bottle wine filling plant  glass bottle wine filling plant glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant  glass bottle wine filling plant
