pneumatic tightening tool zhengmao pneumatic tool zm-a12

Specifications

1,pneumatic tools
2,pinless hammer
3,power tools
4,1"
5,air tools

pneumatic tools

* Handle exhaust or front exhaust or side exhaust
* High performance pin-less  hammer mechanism
* Easy adjustable power regulator /power switch. High torque
* Ideal Tools for high volume tire work on buses , trucks and other heavy equipment.
   suitable for high volume trucks spring, truck  maintenance and heavy equipment shops.



 Product Parameter

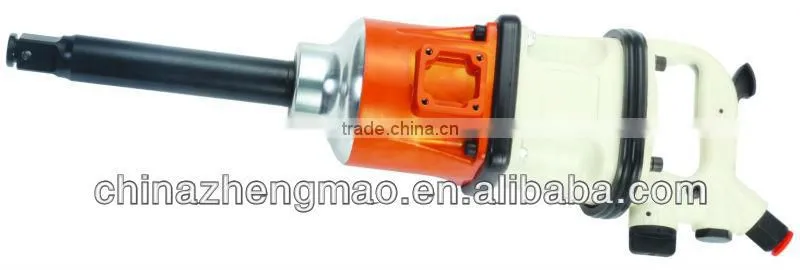

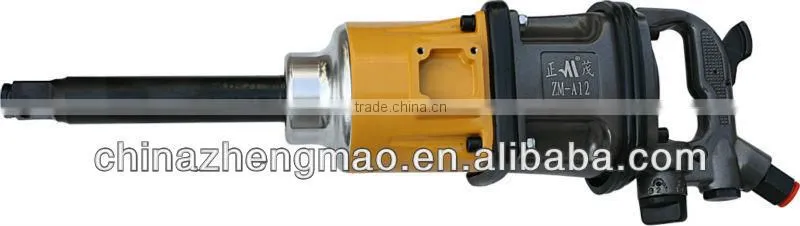

Model: ZM-A12  1"PIN-LESS HAMMER



1.Rated No Load Speed  3800r.p.m
2.Capacity Bolt Dia  48mm
3.Air Pressure  8-14kg
4.Air Inlet  1/2"
5.Anvil Length  8"
6.Maximum Torque  2980N-m
7.Net Weight  17kg





Service Instructions

This Brand Pneumatic Spanner is made of  wear-resistant and shockproof materials under excellent design and strict quality control.

Notes to the users before operating:

1. Keen dry and clean of air cylinder and gas container , and be sure that the air supply tube shall no be air leakage.
2. Check to see if the air gauge is at 10KG, safety standard level within 7.8 KG of working pressure.
3. In order to keep normal operation of this unit , be sure to fill in the air and water from air outlet of air cylinder, filter, and auto oil filter combination. Refer to the picture one.
4. If no oil filter, pleasure fill oil in according to the assigned oil port. Fill oil in before working to keep the best performance function of this unit.(Pleasure use of recommended oil or spindle oil for pneumatic spanner.)
5. If this unit keeps still without running or suns not smoothly, please use of large capacity of special recommended oil or spindle oil to fill in for pneumatic spanner turning. Remove and clean away the dirt and obstacles . if they are unable to be removed after continuous twice or three times, pleasure send them to the dealer for repair or maintenance.
