Specifications
1)Signaling gateway, converter any signaling between SS7, ISDN PRI, Q.SIG, V5.2. R2;2)Clocking source: E1, internal;
Description:
NC-AD300D is designed and manufactured by NiceComm according to National Telecom Standard, solves any signalling inter-work issues between various switches and equipment through E1(T1), with its Imbedded AM9 CPU and Linux operation system, NC-AD300D is a cost effective, powerful, reliable and stable signalling converter.
Specialty:
* Signaling support: ITUT C7, SS7, ISDN PRI, ETSI ISDN, Q.SIG, R2, V5.2
* Interface Connector: 16 E1 (8 spans), 10/100M network 1 port, RS232 console 1 port
* 16 SS7 links, 16 PRI
* Switching Volume: 2048 x 2048
* Clocking accuracystratum 3 Clock.
* Clocking Source from E1 or internal.
* Hard ware resource: 256 Voice channels,256 meeting channels,256 DTMF channels, FSK inspection and delivery.
Function:
* Convert any signaling between ITUT C7, ISDN PRI, ETSI ISDN, Q.SIG, V5.2, R2
* Multi router, inter-office management, Intelligent router distribute and telephone traffic sharing
* Grouping switching management
* User identifier, can provide black and white name list or connect to the database
* Powerful calling function to provide customize calling mode.
* Voice management function with voice record and voice play
* Meeting function
* Calling number and called number modification
* Real time telephone traffic monitor and handling
* Can expand the capacity through multi stack
* Provide CTI Link API interface for user program control
Physical Specification:
Item |
Specification |
||
Input voltage |
-48v DC or 200~240V AC |
||
Power |
30 W |
||
Dimension |
width×depth×height |
480mm×290mm×40mm (1U) |
|
Weight |
3 kgs |
||
Environment |
Temperature |
0-50 |
|
Rel Humidity |
Less than 80 |
||
The back image of this product:

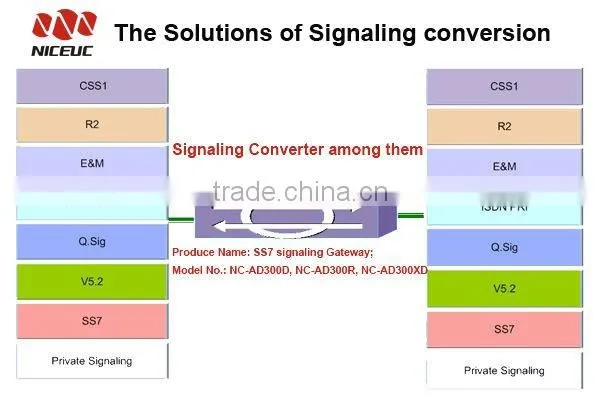

Application as follow shows:
