XGF 24-24-8 Automatic Fruit Juice Drink Beverage Filling Machines Quality Choice

XGF 24-24-8 Automatic Fruit Juice Drink Beverage Filling Machines Quality Choice photo-1
US$ 30,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220/380/415V
Power 3kw
Place of Origin Jiangsu, China
Brand Name Wanjin
Model Number XGF24-24-8
Dimension(L*W*H) As Required
Weight 3000kgs
Certification CE/SGS
After-sales Service Provided Engineers available to service machinery overseas

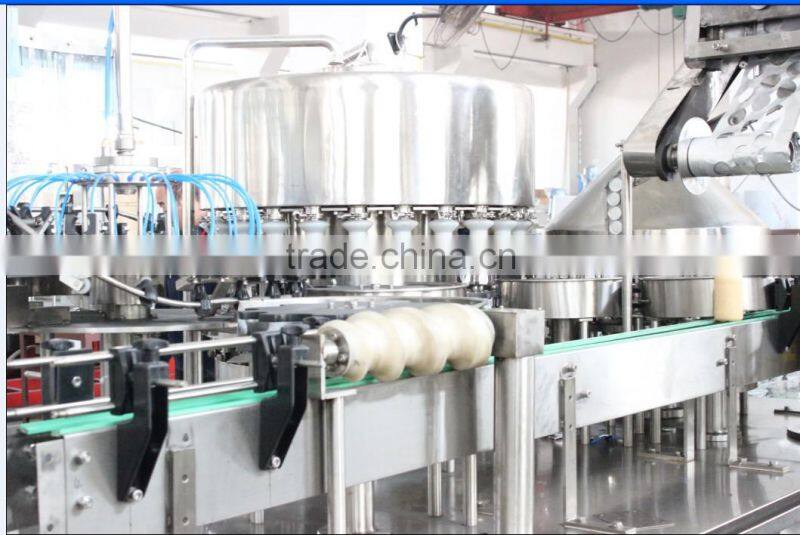

XGF 24-24-8 Automatic fruit juice drink beverage filling machines



3-in1 beverage filling machine

The main appliances

PLC :mitsu

touch screen :WeiLun

1.This series of machines integrate washing,filling,capping into one unit,can be used in production of non-carbonated drink of mineral and pure water packed in polyester bottles.

2. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient,faster and more east.The main machine adopts advanced PLC control technology.The key electric ele-ments adopt international famous product.



 Form:

Mode

XGF14-12-5

XGF18-18-6

XGF24-24-8

XGF32-32-10

XGF40-40-10

XGF50-50-12

XGF60-60-15

wahing/filling Heads

14-12-5

18-18-6

24-24-8

32-32-10

40-40-10

50-50-12

60-60-15

capping heads

Capacity(BPH)

2000-4000

5000-6000

8000-12000

12000-15000

16000-20000

20000-24000

25000-30000

bottle type

φ=50-108 H=170-340 330ml-2000ml

Rinsing with water pressure(mpa)

0.2-0.25

power
(kw)



2.2kw

3kw

4kw

7.5kw

9.5kw

12kw

Dimension(mm)

2100*1400
*2500

2460*1720
*2650

3100x2100
x2650

3500x2500
x2650

4600x1800
x2650

5200x4500
x3400

6500x4500
x3400

(LxWxH)

Weight(kg)

2500

3500

4200

5500

6800

7600

XGF 24-24-8 Automatic fruit juice drink beverage filling machines
