pe pp film recycling and washing line
- 6 Set / Sets per Month
- shanghai
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | wanjin |
Model Number: | 300-1000 | Certification: | CE/SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

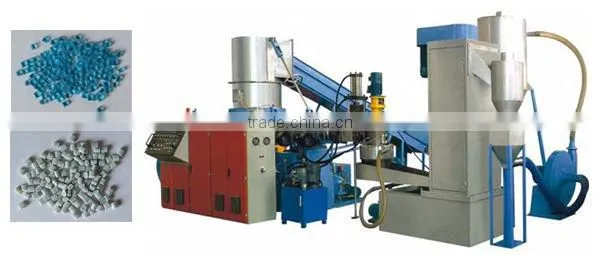

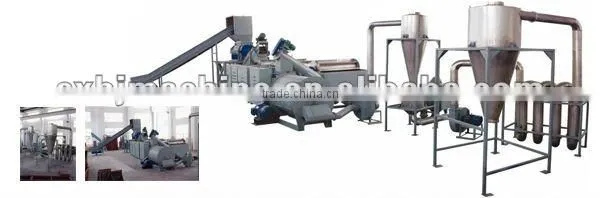

pe pp film recycling and washing line
Equipment list
NO Description Quantity
1 belt convey system 1set
2 SWP 800 crusher 1set (depend on the capacity)
3 Rub and clean machine 1set
4 Film clean machine 1set
5 Screw transporter 1set
6 Film dewater system 1set
7.High speed dewater system 1 set
8 stainless steel pipe Dry system 1set
9 Whirlwind material storehouse 1set
10 Electric equipment 1set
ONE.Belt convey system
1.Motor power:1.5KW
2.Strap width:600mm
3.Strap transport length:4000mm
4.Excitation timing
TWO.SWP 800 crusher
1.Motor power:37KW
2.Crush capability:400--500KG/H
3.Water spout diameter:1inch
4.Crush way:Crush with water
THREE.Rub and clean machine
1.Motor power:5.5 KW
2.Rotation speed:500RPM
3.Screw diameter:Φ250
4.Screw barrel length:3000mm
FOUR.Film clean machine
1.Clean roller:5pc
2.Width:1250mm
3.Available length:6000mm
4.Motor power:2.2*2
5.Decontamination motor power:1.5KW
6.Liquid lever control
FIVE.Screw transporter
1.Motor power:1.5 KW
2.Screw diameter:Φ200
3.Available length:2500mm
SIX.Film dewater system
1.Motor power:45KW
2.Rotation speed:1400rpm
3.Other parts contacted with material are made of stain steel, such as dehydration barrel, axes, leptospira and so on.
SEVEN.Stainless steel pipe dry system
1.Heat power:28KW
2.Suction wind machine power:5.5KW
3.Pipe diameter:Φ159mm
EIGHT.Whirlwind material storehouse
1.Capacity:2M3
2.Mixer motor power:2.2KW
NINE.Electric equipment
1.Use domestic brand (DELIXI electric equipment)
Note that :The specification is competely based on your production purpose .And your capacity per hour .
