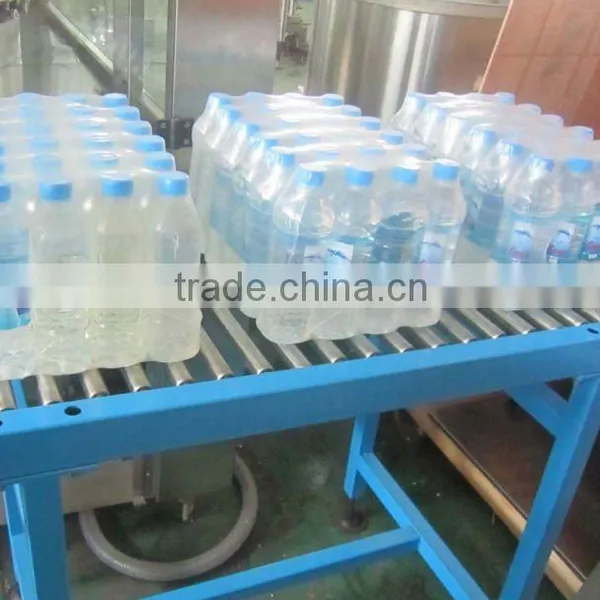

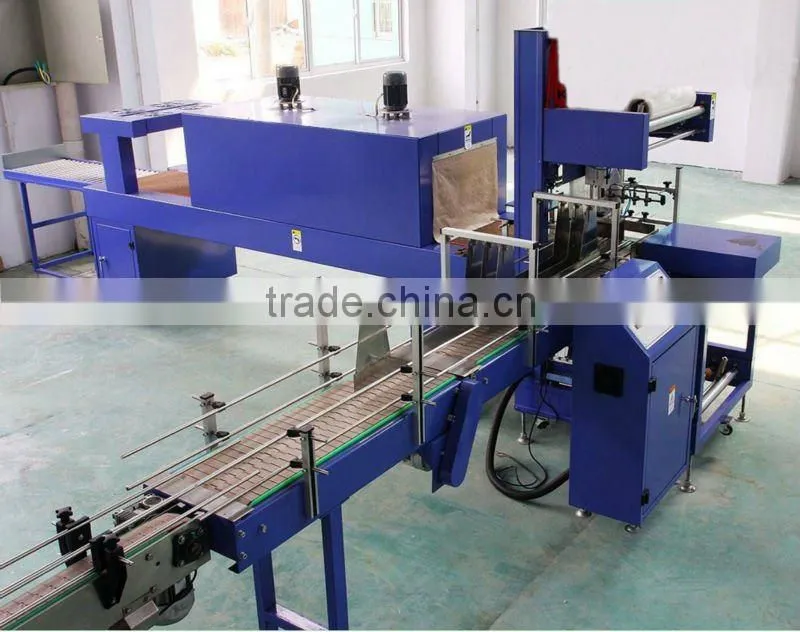

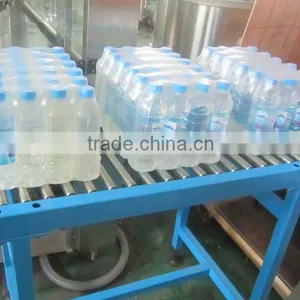

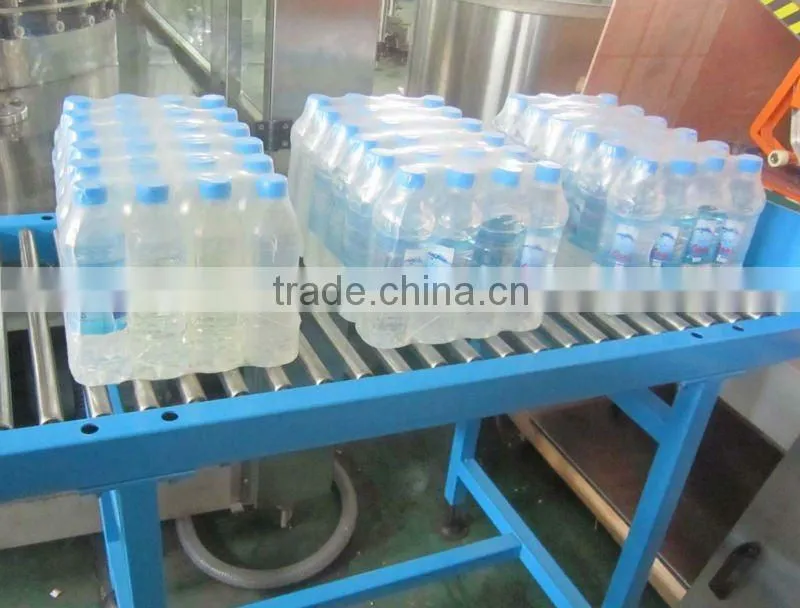

Automatic Sleeve Wrapping Machine for water bottle
1.Technical Parameter of equipment
Electrical source: AC 380V/220V 50HZ
Maximum power: 18KW
Working air pressure:0.6 MPa
Air compressor requirement: exhaust pressure: 0.8MPa, flux: 0.25m3/min
All kinds of thermal shrinkage film for example: PE,PP,PVC,POF
Width of wrapping film:≤600mm
Thickness of wrapping film: 0.03-0.15mm
Feeding conveyor height: 920mm(adjustable)
Length of feeding conveyor:2600mm
Outlook dimension of equipment: 5050*3300*2100 mm
Total Weight of equipment: 1200kg
2.Technical parameter of packing products:
Maximum packing dimension:600*400*350 mm( big diameter bottle could be 450*300*400mm)
The length of thermal sealing & cutting knife: 700mm
Thermal shrinkage temperature: 160-250 °C
Speed: 8-12 packages
Normal bottle quantities in one package(round shape or rectangle)
4 rows 4*6 4*5 4*4 applicable bottle dimension: Φ40-Φ73mm
3 rows 3*4 3*3 3*5 applicable bottle dimension: Φ73-Φ98mm
2 rows 2*3 2*4 applicable bottle dimension: Φ98-Φ140mm
1 row 1*2 applicable bottle dimension: Φ140-Φ300mm
Technical data
1) Sealing type: sleeve sealing type
2) Power supply: 380V/50-60Hz/3phase
3) Packing capacity: 22 packs per minute (depends on product size)
4) Sealing bar width: 660mm
5) Max height of sealing frame: 320 mm
6) Max sealing size: 420x300 mm
7) Infeed conveyor lenght: 1500mm
8) Film type: Polyethylene (PE)
9) Max film size: width: 600mm, outer diameter: 350mm
10) Tunnel conveyor speed: max 15 m/min, controll by frequency converter
11) Oven size: 1800(length) x 600(width) x 400(height) mm
12) Working height: 780-850 mm
13) Rated power consumption: max 20.5 kW
14) Air pressure: ≤0.5MPa (5 bar)
15) PLC: SIEMENS CPU
16) Sealing system: permanently heated seal bar with easy-exchangeable sealing blade without odorous
17) Operating interface: Eview displayer
18) Machine material: carbon steel and painted
19) Machine dimension: 3500x1100x1650mm
