Home > Packaging & Printing > Packing Machinery > Filling Machine > Wine/Alcohol Filling Machine (3 in 1 Monoblock)

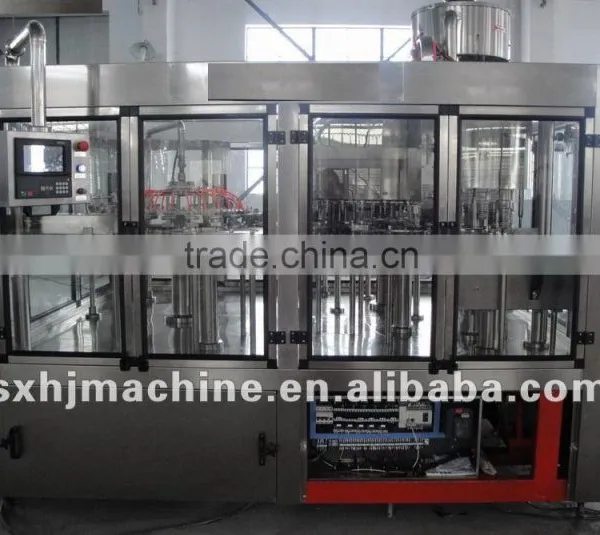

Wine/Alcohol Filling Machine (3 in 1 Monoblock)

Name: Wine/Alcohol Filling Machine (3 in 1 Monoblock)
Brand: Wanjin
SKU: 105517211
Availability: InStock

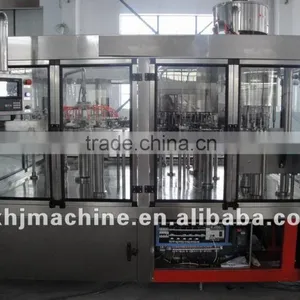

Wine/Alcohol Filling Machine (3 in 1 Monoblock) thumbnail-1

Wine/Alcohol Filling Machine (3 in 1 Monoblock) photo-1

US$ 22,800 - 55,800 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Beverage

Packaging Type:

Bottles

Contact Supplier Request Quote Chat Now

Zhangjiagang City Wanjin Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Beverage

Packaging Type Bottles

Packaging Material Wood

Automatic Grade Automatic

Driven Type Electric

Voltage 220/380/415V

Place of Origin Jiangsu, China

Brand Name Wanjin

Model Number RXGF

Certification CE/SGS, CE

After-sales Service Provided Engineers available to service machinery overseas

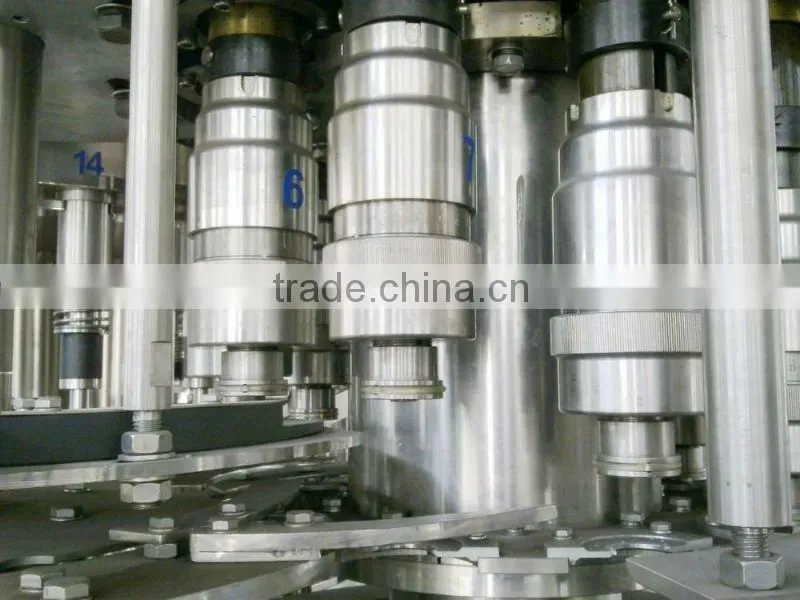

Wine/Alcohol Filling Machine (3 in 1 monoblock)

Features:

1.Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.

2.Open gear combinated gear box transmission, with no-off device. Frequency conversion velocity modulation device extends the speed modulating scope

3.This machine has self oil lubrication device so that the lubrication points could be lubricated regularly in time. The machine is of high efficiency, low noise and long life.

4.Centering guide is of double guide bar type, with the function of pre-covering.

5.Wine jar and capping head are driven by manual, also can be driven by electricity to fit different sizes of bottles.

6.The material height in the tank is controlled by electric probe to assure the precise liquid level.

This Wine Filling Machine is used for all kinds of wine filling.

The machine combines washing, filling and cover spinning with complete automation, suitable for wine filling into glass bottles ,polyester bottles and PET bottles. It can be used for all kinds of bottles.

Main Technical Parameter:

Model	Washing heads	Filling heads	Capping heads	Capacity	Power
XGF18-18-6	18	18	6	4000B/H	3.8Kw
XGF24-24-8	24	24	8	6000B/H	7.5Kw
XGF24-24-10	24	24	10	8000B/H	7.5Kw
XGF32-32-10	32	32	12	12000B/H	7.5Kw

The capacity complete depend on the customer demands .We welcome customer to visit our company !At any time ,you will see the machine working and running in our factory !
