Heat Transfer Fluid Transferred to Thermal Oil
Introduction of organic heat transfer media heating boiler
Flame and high temperature smoke produced by complete burning of fuel (coal, oil, gas, etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.
Process feature: low pressure and high temperature
Product feature:
1. High temperature in a low pressure
2. Stable heat system
3. Easily temperature control.
3. High heat efficient
4. Excellent operation control system
5. Safe monitor device
6. Less water, electricity, production cost
Technique data
Rated thermal power is 0.12Mw (10,104kcal/h) to 14Mw (1200,104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350C.
Thermal efficiency is between 60% and 85% according to the difference of boiler type.
Fuel
Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust, coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.
Application of thermal oil heater industry.
1.Chemical Industry --polymerization industry ,oil industry, reaction tank,distillation ,enrichment
2. Plastic industry ---plastic and squeeze to finalize the design
3. Textile industry --resin stenters ,dyeing machine and the dry room ,high temperature machine,
roller.
4.Rubber industry -rubber vulcanization heating
5.Food industry --cooking dry,vegetable oil refining
6.Wood industry --heating to finalize the design of chipboard sandwich plate ,wamu board,fiber
7.Paper industry-multi-layer cardboard of packed carton box ,dying and desiccation
8.Others-heating of metal electroplating slot ,coating condensation ,drying ,distillation of
pharmaceutical industry, reduction ,concentration,dehydration,airconditioning industry.etc
hOT OIL BOILER PARAMETERS:
Fuel(Gas)Organic Heat-Carrier Boiler | ||||||||||
Type |
YYW0.24(20) |
YYW0.35(30) |
YYW0.6(50) |
YYW0.9(75) |
YYW1.2(100) |
YYW1.5(235) |
YYW1.8(150) |
YYW2.5(200) |
YYW3(250) |
|
Rated thermal |
0.24 |
0.35 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.5 |
3 |
|
Thermal |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
|
Rated Steam |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Maximum working |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
|
Capacity |
0.21 |
0.25 |
0.28 |
0.44 |
0.64 |
0.793 |
1.25 |
1.76 |
1.9 |
|
Circulating oil |
40 |
40 |
80 |
80 |
80 |
100 |
100 |
200 |
200 |
|
Piping connection |
100 |
100 |
100 |
100 |
125 |
125 |
125 |
150 |
150 |
|
System installed |
14 |
14 |
22 |
22 |
40 |
40 |
40 |
66 |
70 |
|
Size |
Diameter |
1016 |
1016 |
1216 |
1416 |
1716 |
1716 |
2000 |
2000 |
2320 |
Height |
2050 |
2350 |
2450 |
2900 |
3300 |
3900 |
4100 |
5100 |
5300 |
|

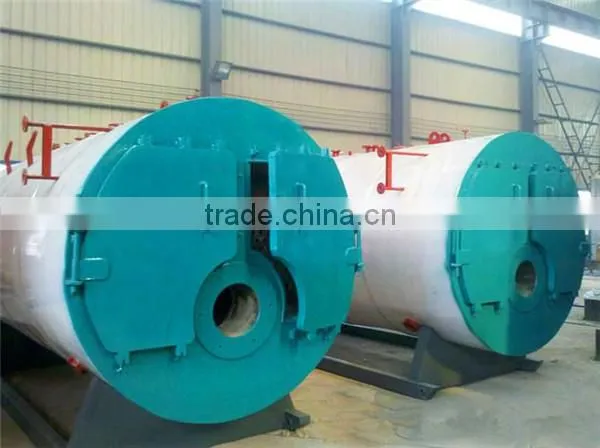

other product in our company:

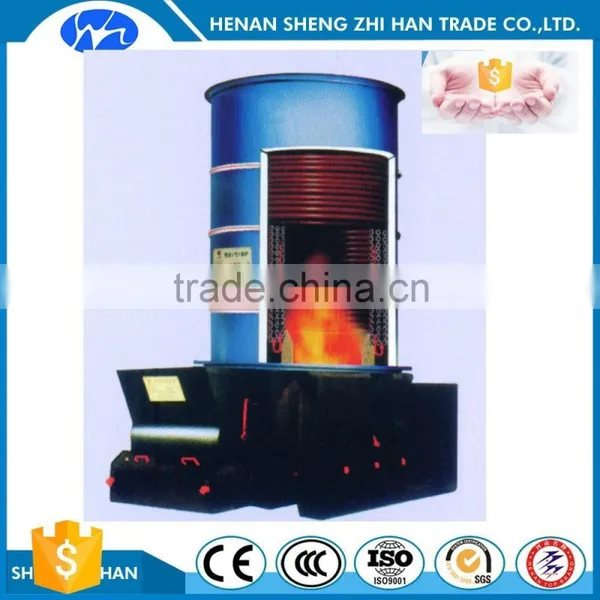

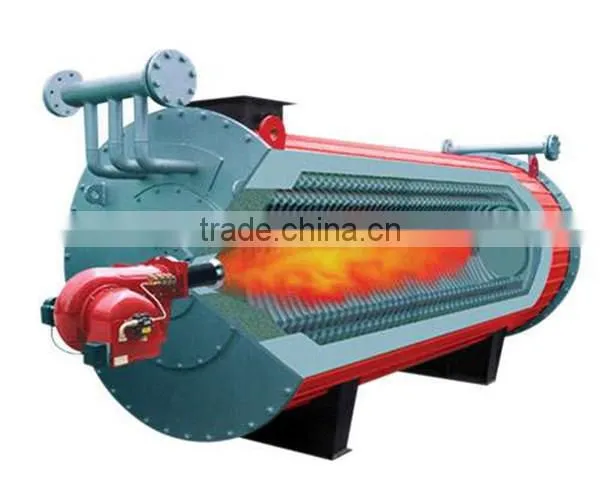

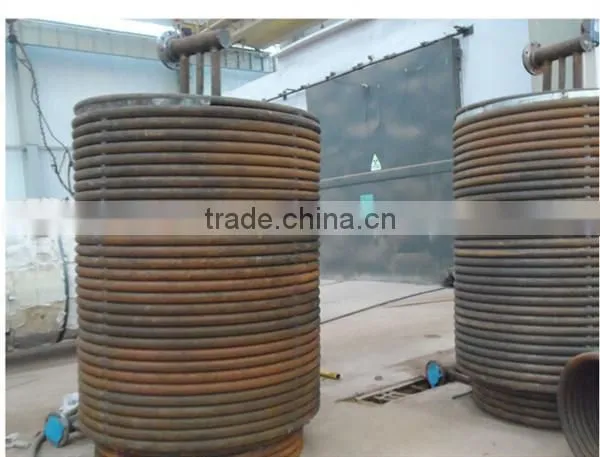

inner structure of hot oil boiler
Trade Assurance=secure payment
safe payment,timely delivery,quality safeguard.
With Trade Assurance, you’re covered for:
On-time shipment and Pre-shipment product quality (Optional)
explanation: If you pay $2000 to supplier ,$2000will be transfered to alibaba first .
So if the product quality is not what you need ,you could get refund $2000 from alibaba.
( the most biggest Amount of Financing in America)
Henan Sheng Zhi han Import and Export Trade Co., Ltd. is vetted and approved by the National Foreign Trade and Economic Cooperation, enjoy the right to operate import and export trade of the joint-stock company. The company diversified mode of operation, import, and export agent for sale, re-export trade, mainly engaged in boilers, reactors, pressure vessels and other mechanical equipment, products are mainly exported to Russia, Mongolia, Korea, Vietnam, Nigeria, Ethiopia, Burma and Southeast Asia, Africa countries and regions.
Please click "send "to send us an inquiry ,you will get surprise.
