Chinese hot oil boiler for plywood industry
Chinese thermal hot oil boiler for hot press machine Chinese thermal hot oil boiler for hot press machine
Flame and high temperature smoke produced by complete burning of fuel (coal, oil, gas, etc.)
exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, t
he organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.
Process feature: low pressure and high temperature
Product feature:
1. High temperature in a low pressure
2. Stable heat system
3. Easily temperature control.
3. High heat efficient
4. Excellent operation control system
5. Safe monitor device
6. Less water, electricity, production cost
Technique data
Rated thermal power is 0.12Mw (10,104kcal/h) to 14Mw (1200,104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350C.
Thermal efficiency is between 60% and 85% according to the difference of boiler type.
Fuel
Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust, coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.
Application of Industrial thermal oil boiler for drying equipment .
Inner of hot oil boiler :transfer heat
| Type | YYW0.24(20) | YYW0.35(30) | YYW0.6(50) | YYW0.9(75) | YYW1.2(100) | |
| Rated thermal power(mw) |
0.24 | 0.35 | 0.6 | 0.9 | 1.2 | |
| Thermal efficiency(%) |
90 | 90 | 90 | 90 | 90 | |
| Rated Steam Pressure(Mpa) |
1 | 1 | 1 | 1 | 1 | |
| Maximum working temperature |
350 | 350 | 350 | 350 | 350 | |
| Capacity | 0.21 | 0.25 | 0.28 | 0.44 | 0.64 | |
| Circulating oil | 40 | 40 | 80 | 80 | 80 | |
| Piping connection diameter(DN) |
100 | 100 | 100 | 100 | 125 | |
| System installed capacity(KW) |
14 | 14 | 22 | 22 | 40 | |
| Size | Diameter | 1016 | 1016 | 1216 | 1416 | 1716 |
| Height | 2050 | 2350 | 2450 | 2900 | 3300 | |
1.Chemical Industry --polymerization industry ,oil industry, reaction tank,distillation ,enrichment
2. Plastic industry ---plastic and squeeze to finalize the design
3. Textile industry --resin stenters ,dyeing machine and the dry room ,high temperature machine,
roller.
4.Rubber industry -rubber vulcanization heating
5.Food industry --cooking dry,vegetable oil refining
6.Wood industry --heating to finalize the design of chipboard sandwich plate ,plywood,wamu board,fiber
7.Paper industry-multi-layer cardboard of packed carton box ,dying and desiccation
8.Others-heating of metal electroplating slot ,coating condensation ,drying ,distillation of
pharmaceutical industry, reduction ,concentration,dehydration,airconditioning industry.etc
Inner of Industrial thermal oil boiler Organic Carrier Boiler for oil chemistry

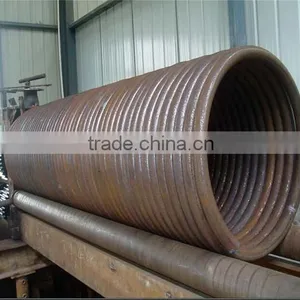

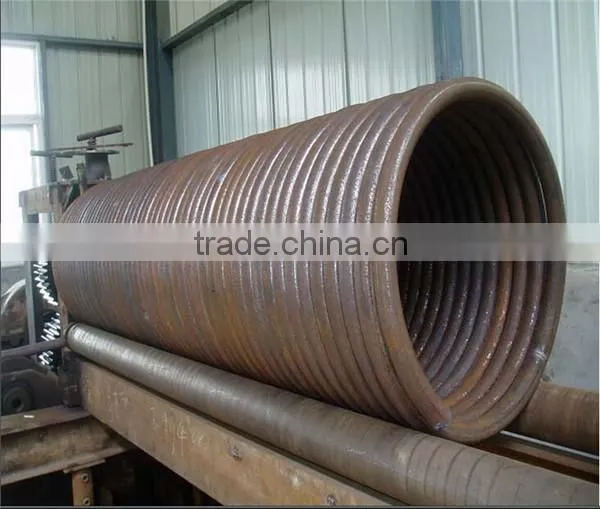

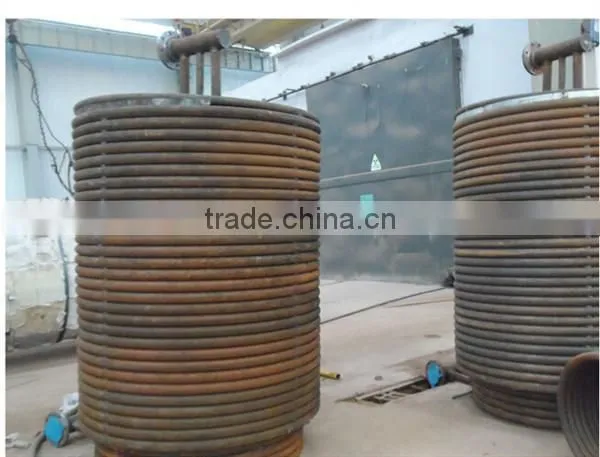

tubes in Industrial thermal oil boiler for drying equipment

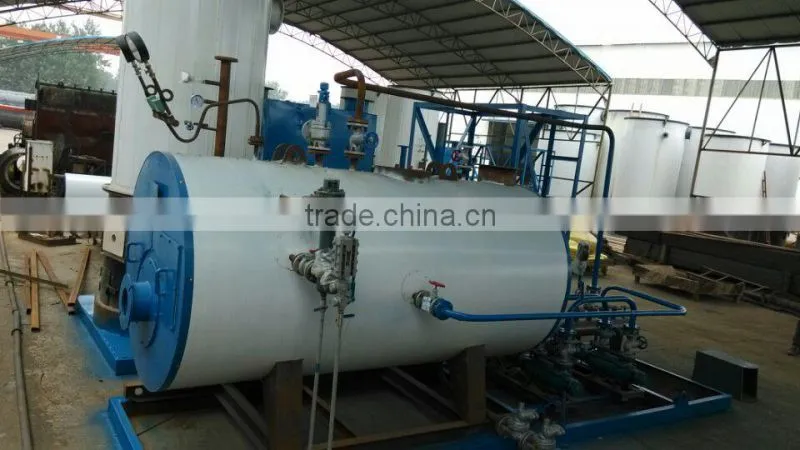

Industrial Industrial thermal oil boiler for drying equipment installation spot:

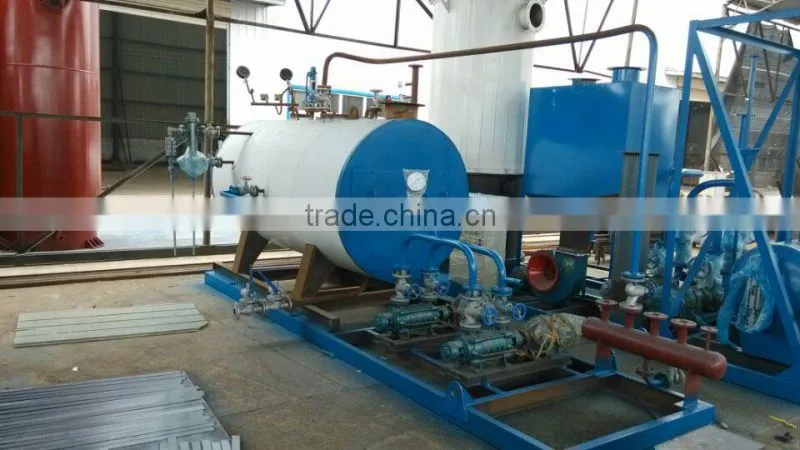

installation spot or site:
Industrial thermal oil boiler for drying equipment
PARAMETERS:
other product in our company:
-
Henan Sheng Zhi han Import and Export Trade Co., Ltd. is vetted and approved by the National Foreign Trade and Economic Cooperation, enjoy the right to operate import and export trade of the joint-stock company. The company diversified mode of operation, import, and export agent for sale, re-export trade, mainly engaged in boilers, reactors, pressure vessels and other mechanical equipment, products are mainly exported to Russia, Mongolia, Korea,
Vietnam, Nigeria, Ethiopia, Burma and Southeast Asia, Africa countries and regions.
1.Q: Can you give us a quotation right now?
A: Of course ,we can. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.
requirements.
2. Q: Can you make a design for us?
A: Yes, we can. What we supply is not only product, but also solution and design.
3. Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
4. Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless manmade damage.
5. Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation. If you still have problem, we will
send our engineer oversea for installation guide.
Below is my contact ,if you have any question ,don't hesitate to contact with me,we will offer best service for you !

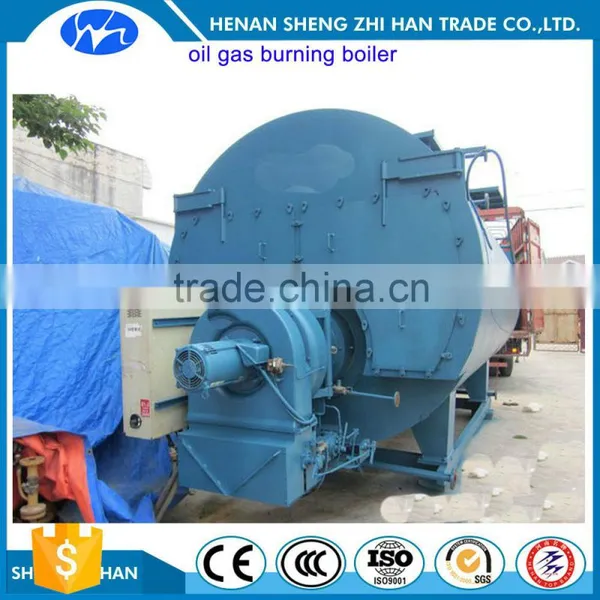

Forced-circulation Fuel Oil(gas) Package Boiler YYW boiler, Industrial thermal oil boiler price YYW boiler, Industrial thermal oil boiler Plywood ,polystyrene board heat setting
