Product Details
Condition: | New | Type: | Natural Circulation | Usage: | Industrial |
Structure: | Fire Tube | Pressure: | Low Pressure | Style: | Horizontal |
Fuel: | Gas-fired | Place of Origin: | Henan, China | Brand Name: | dingsheng |
Model Number: | WNS4-1.0-Y | Output: | Steam | Dimension(L*W*H): | 4900*2900*3100 |
Weight: | 1.5t | Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Tade Assurace WNS Series boiler steam press machin horizontal boilers
Products Information

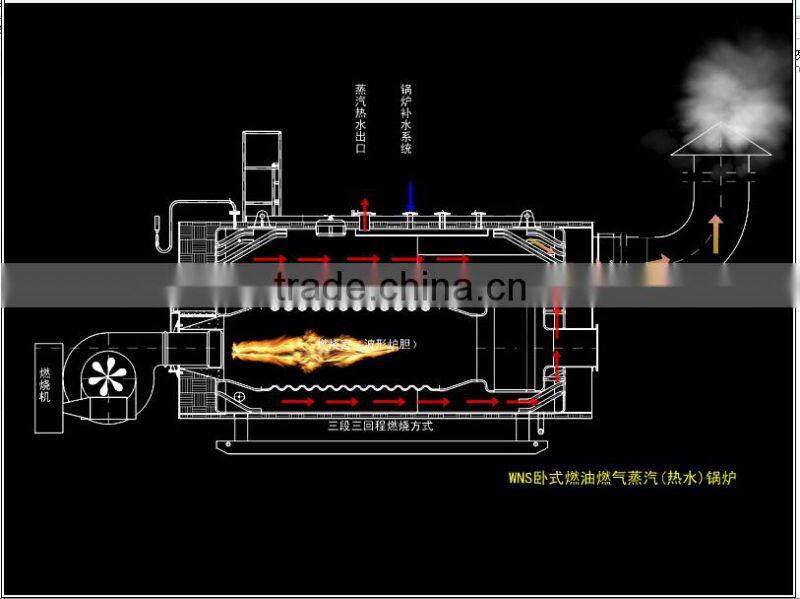

WNS type fuel thermal oil(gas) steam boiler is a horizontal internal combustion three quick return fire tube boiler.Furnace with bias wet back structure,high temperature gas erosion followed by the second and third return pipe,and then,after smoke from the room throuth the chimney into the atmosphere.Boilers fitted with smoke before and after the lid,so that the boiler easy maintenance.Boilers with excellent technical performance of the industeial burner,uses a combustion automatic ratio adjustment,automatic regulation,procedure start andn stop,automatic operation and other advanced technologies,and has low water level alarm and low water levels,high vapor pressure,such as auto-flameout protection.This type of boiler with a compact,safe,reliable,simple,quick to install,less pollution,low noise,high efficiency.
WNS series oil steam boiler feature:
1.The water level real-time monitoring:
Detecting the water level with electronic devices,real-time monitoring boiler water level.
2.Time setting function:
Users may nee to set free combination boiler start and stop time.
3.Leakage protection:
Control system to detect leakage electric heating elements,it will sutomatically cut off power supply.
4.Water conservation:
When theh boiler water is promptly cut off the burner control circuit,dry palce to prevent damage to th
e burner,also issued a water shortage alarm conteroller direction.
5.Interlocking overpressure protection:
Boiler pressure more than the user set value,prohibiton of burners work and alarm.
6.Pressure controller,water level alarm,safety value,low water level of the multiple security alarm.
7.The complete gas value and protection system:
Providing from the filter,regulator,gas value solenoid values and accessories,such as integrity,to ensure the safrty of gas.
8.Gas monitoring device that can automatically monitoe the boiler exhaust gas temperature,the more easily grasp the combustion boiler.

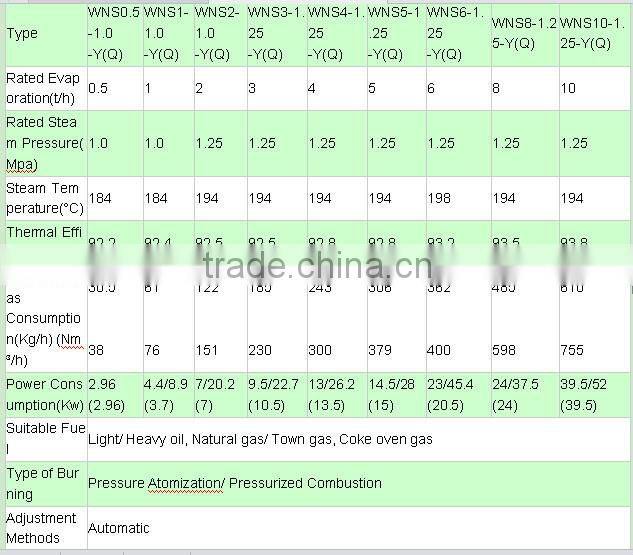

Technical data

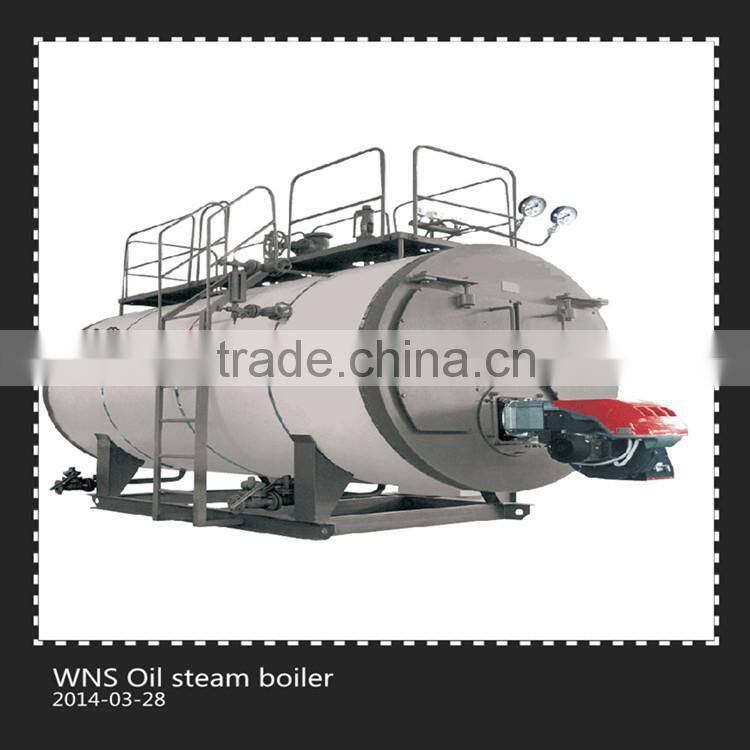

Product picture

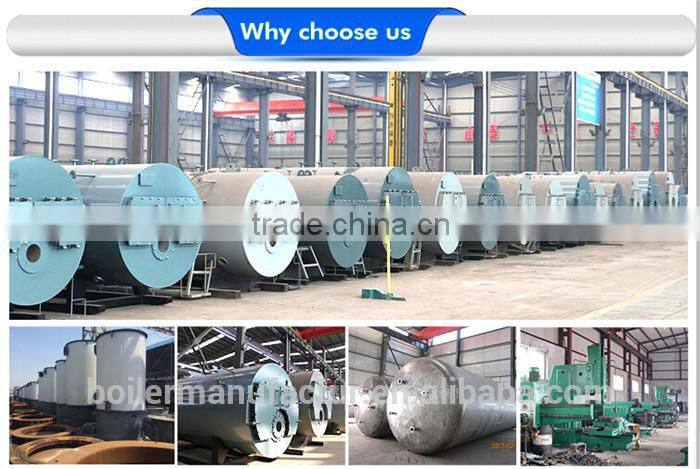

We have the first-class production line
Before the products leave our factories, all the matters relevant to product will be undertaken by our company, such as equipment decoration in product room and also satisfactory, free-charge service will be offered by us until the turn-key project. The replacement is guaranteed if any problem concerning the product quality arises within a year.
In the manufacturing process, clients are quite welcome to our factory to examine the actual quality and to carry out the follow-up inspection.
Company Brief
Our company has capacity of 2000ton in the annual production, we have shared 80% domestic market, at the same time, our boilers have exported to over 40 countries, such as USA, Italy, German, Thailand,India,Philippines, Mongolia, Pakistan, Russia, Kazakhstan, Egypt etc. Our target is strictly inspecting, producing competitive products and creating famous brand, every customer’s comments is driving force for our advance,believe us one time, and we will try our best to satisfy you forever!
Old factory area:10000 square meters (over 30 years production experience)
New factory area:120000 square meters(expand in 2002)
