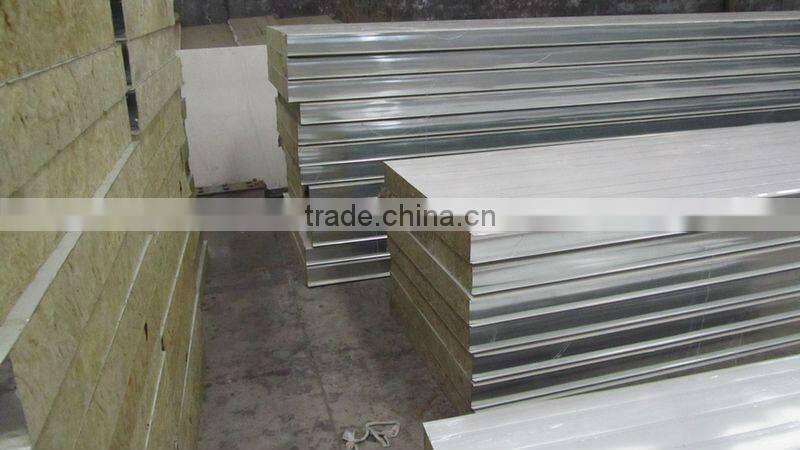

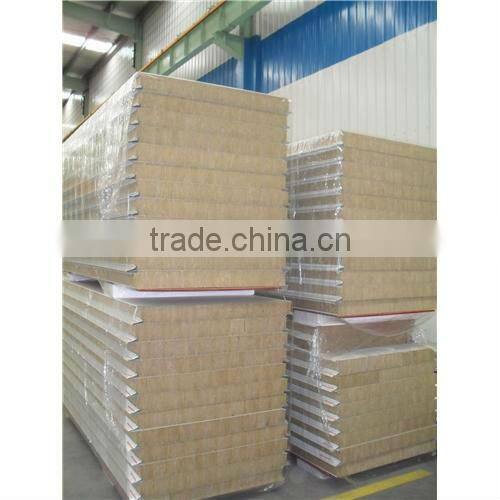

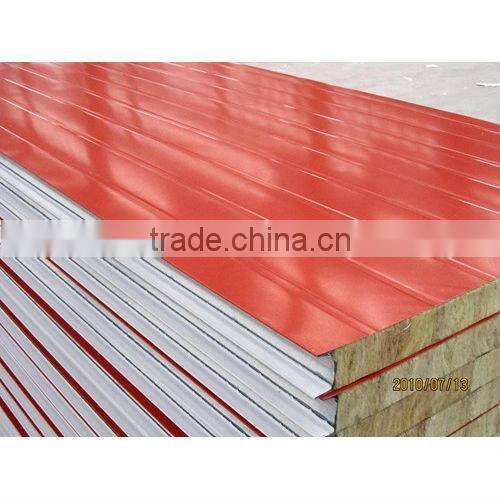

Rock Wool Sandwich Panel

US$ 9 - 25 MOQ: 100 Square Meters

Key Specifications

Place of Origin:

Hebei, China

Panel Material:

Metal

Type:

Rock Wool Sandwich Panels

Shijiazhuang Amulite Building Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XinGang TianJin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Panel Material Metal

Type Rock Wool Sandwich Panels

Specifications

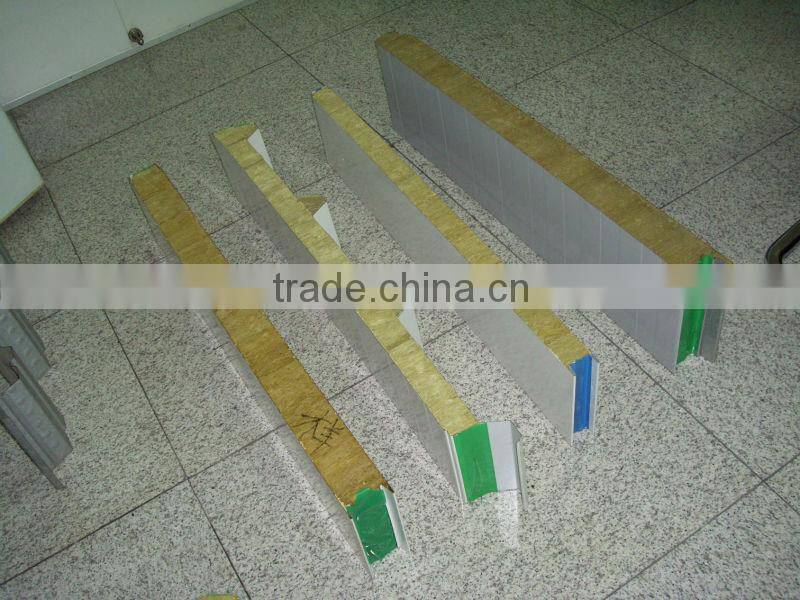

Rockwool sandwich panel
Panel Core: Rock wool.
Density: 75kg/m3-150 kg/m3
Thickness: 50mm, 100mm, 120mm, 150mm

Rock Wool Sandwich Panels

1. Steel Plate :

Thickness: 0.3mm-0.6 mm

Basic steel: prepainted galvalume steel coil and pre painted galvanized steel coil.

Finish: PE Metal sandwich panel/ color steel Rockwool sandwich panel

2. Core material: rockwool fireproof panel

Type: Rock wool.

Density: 75kg/m3-150 kg/m3

Thickness: 50 mm, 75mm, 100mm, 120mm,150 mm

3. Panel width: 950mm,960mm,1150mm

4. Panel length: no more than 11.8 m.

5. Sheet color: Any color according to customer' demand

6. Side steel strip: 0.3mm-0.6mm galvanized plate

7. Packaging: Standard Export Package Suitable For Long-Distance Shipment

Technical Data

Properties	WR 1	WR 2	WR 3		WR band	Unit	Standards
Compressive strength	≥40	≥60	≥80		-	kPa	EN 826
Tensile strength perpendicular to faces	≥7.5	≥10	≥15		-	kPa	EN 1607
Tensile strength (parallel to fiber)	-	-	-		150	kPa	EN 1607
Thermal conductivity	≤0.040	≤0.044	W/mK	ASTM C518 or GB/T 10295
	Incombustible material					-	ISO 1182
Fire performance	A2			A1		-	EN 13501-1 GB/T 8624-2006
Water repellence	>99					%	GB/T 10299
Water absorption (partial immersion)	< 0.5					kg/m2	EN 1609 BS 2972
Moisture absorption	< 0.2					%by vol.	ASTM C1104
Dimensional stability	< 1.0					%	EN 1604
Vapour diffusion resistance factor u	Approximately equal to1.5					-	EN 12086
Melting point	> 1000					°C	-
Insulation system	For details of technical information on ETICS,please refer to EN13500:External Thermal insulation Composite Systems (ETICS)

Specification For Rock Wool Sandwich Panels

Roof panel Model No.	950mm,960mm,1150mm
Color	standard color: bright red,sea blue, white grey Any Color is ok according to customer's demand
Thickness of core material	50mm, 75mm, 100mm, 120 mm, 150mm
Wall panel model no.	950mm 1150mm
Heat Preservation Material	Rockwool
Length	any length, according to the transportation, generally less than 12m
