Specifications
1.Size: 1220*2440,1560*3050,2050*3050mm2.Thickness: 1-40mm
3.Density: 0.35-0.9
4.factory price
Description

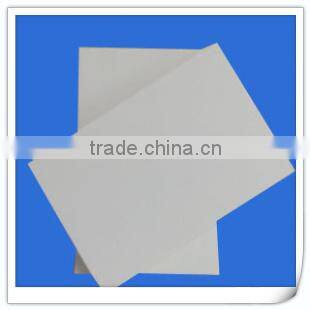

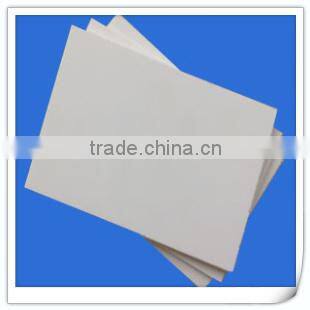

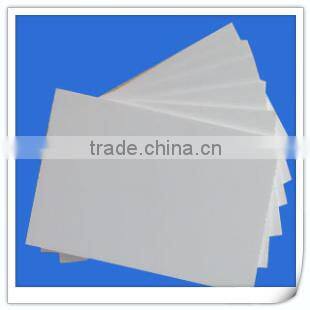

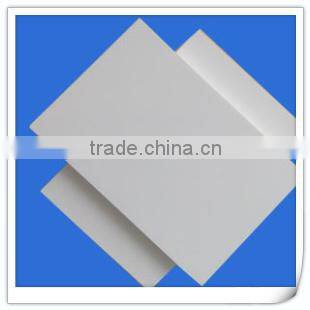

| Product Name | PVC foam sheet |
| Place of origin | Shandong China |
| Main material | PVC powder |
| Size | 1220*2440,1560*3050,2050*3050mm, or as your requirements. |
| Thickness | 1-40mm, usually Free Foam (1~10mm) & Celuka (3~20mm) |
| Density | 0.35-0.9 g/cm3 |
Color |
White |
Features |
1)Light weight,waterproof, Antiflaming and self-extinguishing,etc 2) Sound insulation, heat insulation , noise absorption, heat preservation and anti-corrosion
3) Tough, rigid with a high impact strength,not easy to age and can keep its color for longtime
4) Easy to clean and maintain
5) Environmental-friendly green healthy materials
|
| Service | OEM |
| MOQ | 1000pieces |
| Payment | 30% deposit, balance before loading, L/C |
| Dilivery time | 15days after receiving your deposit |
| Package | nude package, PE film,pallet |
| production capability | 1000 tons / month |
| Factory location | Economic Development Zone, Malus heated industrial park, |
Mechanical Property:
| Project | Unit | Index |
| Surface density | 0.5-0.8 | g/cm3 |
| Tensile strength | 12-20 | MPa |
| Bending strength | 12-18 | Mpa |
| Elongation at break | 15-20 | % |
| Flexual Modulus | >800 | MPa |
| Vicat Softening point | ≥70 | °C |
| Dimensional stability | ±2.0 | % |
| Screw holding strength | >800 | N |
| Impact Strength | >10 | KJ/m2 |
| Shore D Hardness | >45 | Value |
| Water Absorption | <1.0 | % |
| Fire retardance | Self-Extinguishing Less than 5 seconds | |
Dimensional Tolerances
| Thickness | Thickness tolerance | |||||
| Size 1220*2440mm | Size 1560*3050mm | Size 2050*3050mm | ||||
| in mm | absolute in mm | in mm | absolute in mm | in mm | absolute in mm | |
| 1mm | -0.9~+1.2 | 0.2 | ||||
| 2mm | ±0.2 | 0.3 | ±0.2 | 0.3 | ±0.2 | 0.3 |
| 3mm | ±0.2 | 0.3 | ±0.2 | 0.3 | ±0.2 | 0.3 |
| 4mm | ±0.2 | 0.4 | ±0.2 | 0.4 | ±0.2 | 0.4 |
| 5mm | ±0.2 | 0.4 | ±0.2 | 0.4 | ±0.2 | 0.4 |
| 6mm | ±0.2 | 0.4 | ||||
APPLICATIONS
| Construction | office and bathroom cabinets, inner and outer decorate panel, commercial decorating shelf, room separating |
| Transportation | steamboat, airplane, bus, train carriage, roof and carriage inner layer |
| Advertising | exhibition display, digital printing, silk screen printing, computer lettering, sign board, light box, etc. |
| Other areas | Chemical anti corrosion project, special cold project, environmental protection |
INTRODUCTION ABOUNT COMPANY

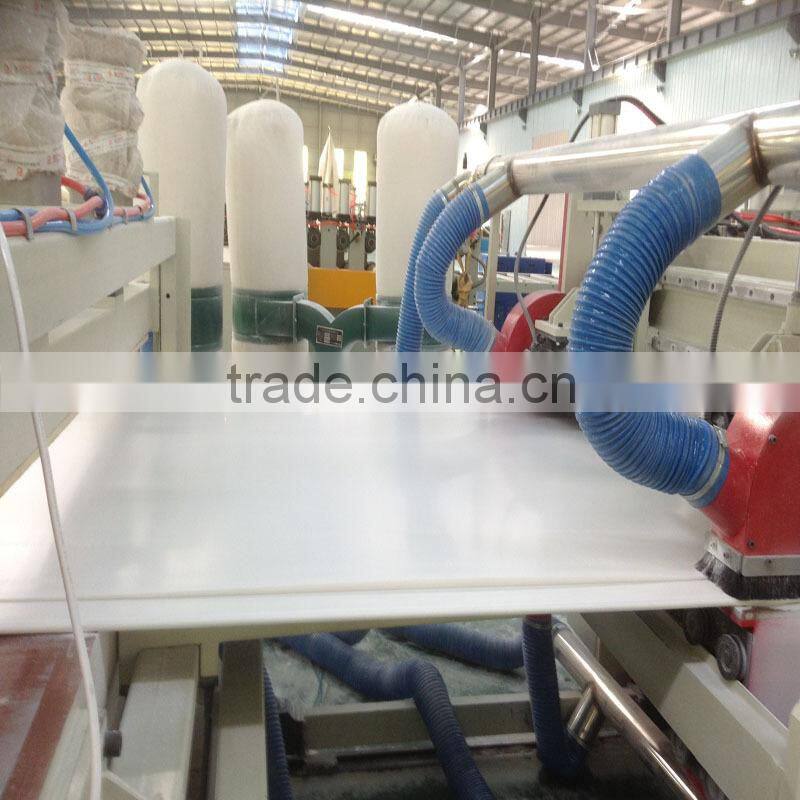

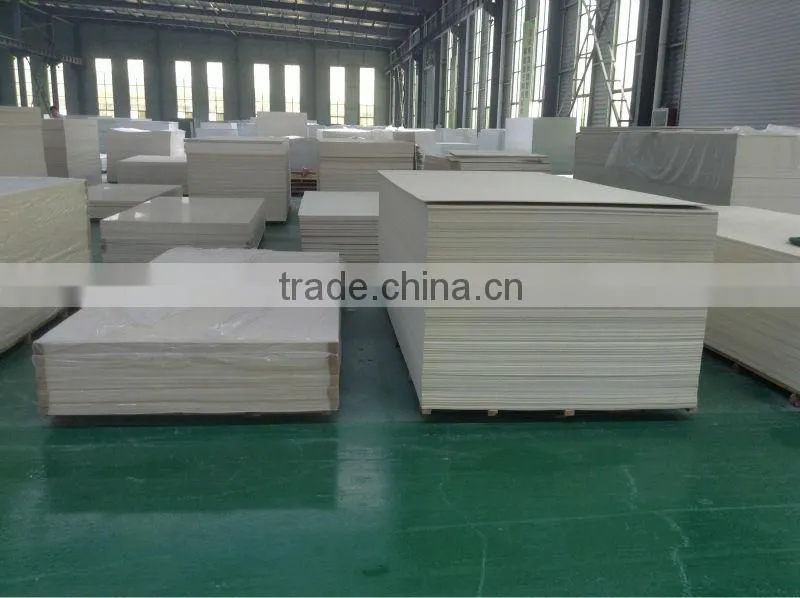

Shandong Huifeng Wood-plastic Profile Co.,Ltd was established in 2013, located in Economic Development Zone Malus heated industrial park. The company is specialized in the development, production of large manufacturers PVC micro-foam board. Product line includes pvc construction template, pvc decoration carving board, pvc advertising board, pvc flooring substrate. All the products use environmentally friendly materials, product quality and stable quality. Microcellular foamed PVC sheet with high surface hardness, deformation, smooth surface characteristics, suitable for furniture, cabinets, bathroom cabinets, toilet partition; advertising printing, logo signs; construction, decoration; cars, trains, ships and other aspects of the interior. Factory covers an area of 140 acres, with a total construction area of 26,000 square meters, now has 16 production lines, with an annual output plate 3 million square meters, 220 million yuan in revenue, profits and taxes 40 million yuan.
