FT low pressure Mist System Outdoor

Specifications

low pressure mist system outdoor could spray fine mist under 2bar or 30psi pressure
Thread size; 3/16 ; 10/24; M5
Mist fan

FT  low pressure Mist System Outdoor adopts the low pressure design principle, producing fine spray effects. It is widely used in the field of low pressure fog generation and narrow installation space, with low condition requirements, a perfect choice for users that have neither high-pressure pumps nor air pressure.

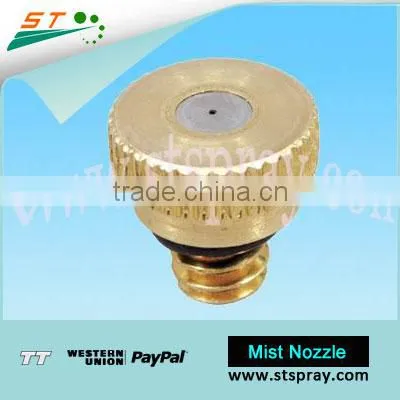

Basic Information of  low pressure Mist System Outdoor is as following: Thread Size: 3/16 ; 10/24; M5 Material: Brass Body with SS orifice Working Pressure: under 2bar (30psi) pressure Orifice Size: 0.2mm, 0.3mm; 0.4mm and larger size; Spray Angle: 30-50 degrees





Flow Rate:

Orifice Water Pressure Spray Angle Flow Rate Diameter of water drop

0.3mm 2bar 20degree 8 ml/min 20u

0.3mm 5bar 45degree 20 ml/min 20u





Typical Applications of low pressure Mist System Outdoor :

Misting fan; low pressure fog generation; humidification; cooling; greenhouse, etc.





Accessaries:

PE tube, plastic quick coupling connectors







With easy installation procedure and simple structure, The FT  low pressure Mist System Outdoor is widely used in the MISTING FAN.





Compared to utilizing ultrasound and high pressure atomizing spray nozzle for the spray fan, using the FT  low pressure Mist System Outdoor reduces the cost and increases the atomization efficiency significantly.





Detailed Pics:
