Specifications
Bear high working pressure up to 70bar or 140barVarious kinds of Model No. to choose
1/8thread size with filter
anti drop

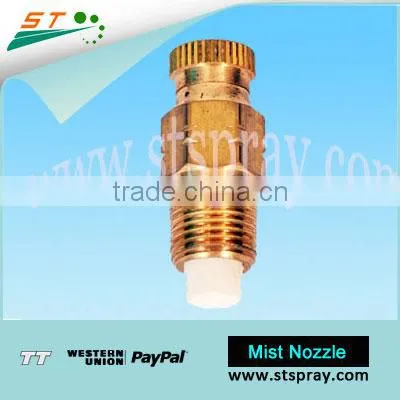

WIA Model No. with 1/8 thread size Brass Misting Nozzles have a white filter at the bottom. It helps filter the water again and protection the nozzle being clogged.
Following is our different model No. of WI Series high pressure Brass Misting Nozzles for your reference:
|
|
| Item No.: WIA | Item No.: WIB |
| |
|
| Item No.: WIC | Item No.: WID |
Above nozzles are the SAME, just the Material and Appearance are NOT SAME.
Pls choose the ones you like.
Similarities:
1) Thread size: 1/8"
2) SS Orifice size: 0.1mm; 0.2mm; 0.3mm; 0.4mm; 0.5mm and lager.
Ceramic Orifice size: 0.08mm; 0.1mm; 0.2mm; 0.3mm; 0.4mm; 0.5mm and lager.
3) Water Drop Size: 3 micron --- 70 micron
4) With Anti-drop Device inside Nozzle
5) High working Pressure: up to 1300psi ( 80bar)
WID SS Misting Nozzles ' working pressure could up to 2000psi ( 140bar)
Diferences: (Especially Material)
WIA includes WIA-SS and WIA-CE |
|
WIA-SS : Brass body + Stainless Steel Orifice |
|
WIA-CE : Brass body + Ceramic Orifice |
|
WIB includes WIB-SS and WIB-CE |
|
WIB-SS : Stainless Steel body + Stainless Steel Orifice | |
WIB-CE : Stainless Steel body + Ceramic Orifice |
|
WIC includes: |
|
|
WIC-SS: Nickel Plated Body + Stainless Steel Orifice |
|
|
WIC-CE: Nickel Plated Body + Ceramice Orifice |
|
|
Feature: WIC's orifice could be replaced. |
|
|
WID Includes WID-SS and WID-CE |
|
WID-SS : Stainless Steel body + Stainless Steel Orifice | |
WIDED-CE : Stainless Steel body + Ceramic Orifice |
|
Feature: WID's orifice could be replaced. |
|
Working Pressure could up to 2000psi( 140bar). | |
high pressure Brass Misting Nozzles ' Flow Rate is here:
Flow Rate matters with nozzle's orifice size and working pressure.
Orifice Size |
Working Pressure |
Flow Rate ( ml /min) |
0.08mm |
70bar / 1000psi |
23 ml/miin |
0.10mm |
70bar / 1000psi |
35 ml/min |
0.15mm |
70bar / 1000psi |
46 ml/min |
0.20mm |
70bar / 1000psi |
89 ml/min |
0.30mm |
70bar / 1000psi |
145 ml/min |
0.40mm |
70bar / 1000psi |
178 ml/min |
0.50mm |
70bar / 1000psi |
243 ml/min |
0.60mm |
70bar / 1000psi |
320 ml/min |
Are you look looking for the related accessories to install WIA 1/8 thread size high pressure Brass Misting Nozzles ?
Threaded fittings
Noted:
OEM and ODM Are Available
Application :
