Specifications
Flat fan spray nozzles could be used for Metal cleaning and processing,Parts washing/rinsing.Brass, SS material is available.
Flat fan spray nozzles could be used for Metal cleaning and processing,Parts washing/rinsing. A typical UniJet Flat Fan Spray Nozzles consists of a T female body or TT male body, spray tip and tip retainer.
Features of Flat Fan Spray Nozzle,Even Flat Spray Nozzle,Flat Fan Nozzle are as below:
• Flat fan spray nozzle pattern distributes the liquid as a flat- or sheet-type spray.
• Small- to medium-sized drops.
• Uniform distribution over a wide range of flow rates and pressures.
• Spray angles of our TPU flat fan spray nozzles are available from 0° (solid stream) to 110° at 40 psi (2.8 bar).
• Specially tapered spray pattern is ideal for use in manifold and header applications.
• High impact solid stream provides highest impact per unit area.
• Unobstructed flow passages minimize clogging.
HC flat fan spray nozzle thread size has :1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2, 3 and so on.
Normally it is BSPT, if you need NPT or others, please contact us freely.
If you only need fix HC Flat Fan Spray Nozzle,Even Flat Spray Nozzle and Flat Fan Nozzle into the pipe, we could provide you with related female or male thread size.
If you need to adjust the spray direction of HC flat fan spray nozzles, we could provide your adjustable ball adapter. As for details, please contact us freely.
Applications of our Flat Fan Spray Nozzle,Even Flat Spray Nozzle and Flat Fan Nozzle:
• Air washing
• Cooling and quenching
• Dust control
• Fire suppression/prevention
• Gas washing
• Liquor washers
• Scrubbers
• Washing/rinsing
• Water cooling
Accessories
– Adjustable ball fittings
– Split-eyelet connectors
Order Info.
TPU-1/4-6510-304SS
TPU-------------------Nozzle Series
1/4------------------BSPT 1/4" Male
6510-----------------Flaw rate
304SS----------------stainless steel 304

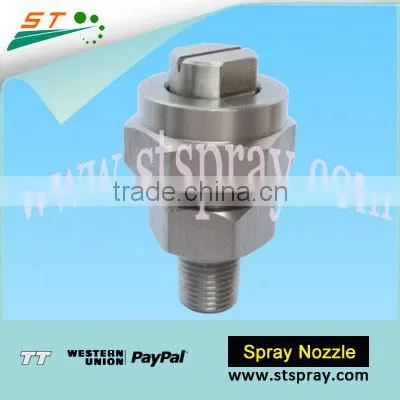

Following pics ar the details of HC Flat Fan Spray Nozzle,Even Flat Spray Nozzle,Flat Fan Nozzle:
