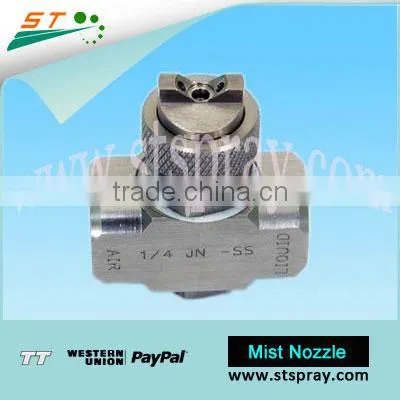

Help CenterJ External Mixing Flat Fan Air Atomizing Oil Burner
Related Products
-
JCO Self-cleaning and External Mixing Oil Atomizer NozzleUS$ 1 - 90MOQ: 10 Pieces -
J Wide Spray Angle Air Atomizing BurnerUS$ 1 - 90MOQ: 10 Pieces
-
External and Pressure Type Air Atomizing SprayersUS$ 1 - 90MOQ: 10 Pieces
-
SS303 Fuel Atomizer Nozzle With Adjustable NeedleUS$ 1 - 90MOQ: 10 Pieces
-
Wholesale SS303 Material Humidity Air Atomizing NozzleUS$ 1 - 90MOQ: 10 Pieces
Specifications
air atomizing oil burner could adjust the flow rateFlat fan spray or Full cone spray
Spray fine mist
Fast delivery
As a China air atomizing oil burner , who has strong desire to provide siphon water atomization spray nozzles and air atomizing oil burner to satisfy customers.
How to install the air atomizing oil burner ?
Basic Information:
Siphon Type
Thread size: 1/8; 1/4; 1/2
Material: SS; brass
Spray Pattern: Flat fan spray
Design Feature:
1. Siphon or Gravity Type air atomizing oil burner
Air pressure is a must, but the liquid pressure is not demanded.
2. When using a siphon or gravity-fed liquid system, the liquid is supplied by either a liquid siphon or a gravity-feed.
3. For Siphon or Gravity type air atomizing oil burner , there are two spray pattern: Flat Fan spray pattern and Round Spray pattern.
Flat Spray:
Round Spray
4.Inner structural design makes liquid and air mix fine, then sprays fine. Normally, we could increase the air pressure or reduce the liquid pressure, so that we could make the air atomizing oil burner more fine droplets( about 30micron).
5.Keeping liquid pressure and air pressure unchanged, as exteral type air atomizing oil burner could adjust liquid flow rate, then it also could spray according to your requirement.
6. Every spraying device consists of air cap and liquid cap.So if you want to use the suitable nozzle, then you have to choose the right air cap and liquid cap.
7.There are two inlet in the nozzle body.: liquid inlet and air inlet. We will mark " LIQUID" and "AIR" OR "L" and " A" on the nozzle. "LIQUID" AND "L" stands for liquid inlet, "AIR" and "A" stands for air inlet.
8. air atomizing oil burner could spray very fine. it also could humidify environmental air very well. It is a ideal choose to use it in places need some certain humidify.
9. air atomizing oil burner could spray a distance of 3 meter. Compared with high pressure fog nozzles, this kind of nozzle is easy to install, have a long live life, cheaper pipe lines, and so on. It is widely used in High-temperature Wax factory, cementplant, injection factory, Ceramics Factory, metallurgical factory and other places t o humidify, cool, dust removal, disinfection and so on.
These air atomizing oil burner to be used for:
Coating • Cooling • Humidification • Odor Control • Chemical Processing

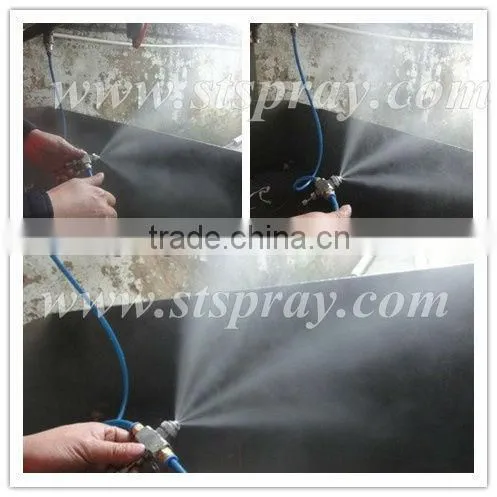

Following is the detailed spraying pics of air atomizing oil burner we have tested for your reference:
