Vertical Style Coal burning Manual feeding Steam Boiler feeding type

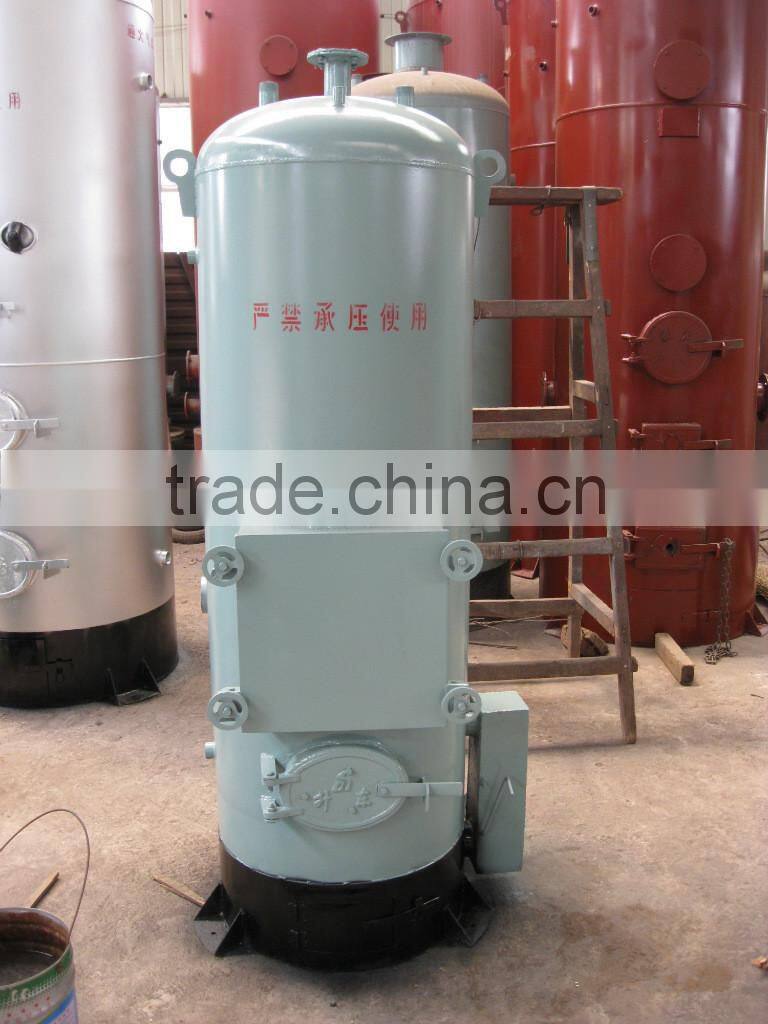

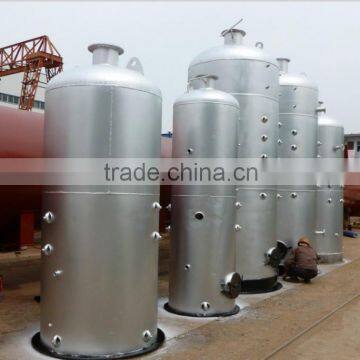

Vertical Style biomass stove
Vertical Style biomass stove performance characteristics:
1, the furnace compared with the old vertical boiler, large heating area, boost heating fast, less coal consumption, high thermal efficiency, can save 25-30% of coal.
2,one stove with multifunction, convenient for the user, the furnace to produce the steam can be used for cooking, dining tableware disinfection, pool heating, the production of steam, heating and other local room heating.
3, the furnace using natural ventilation, do not need blowers and induced draft fan, no noise.
4, compact structure, installation, operation, repair convenient, can the overall handling, the unit use for liquidity.
5, heating with steam baths, food, heating, cooking, and strictly control in the design of pressure within the pressure scale at any time, working pressure shall not exceed pressure operation.
Applicable scope of Vertical Style biomass stove boiler:
It can be used for product processing, printing and dyeing, papermaking, textile, food,
rubber, plastic, chemical industry, medicine, steel, metallurgy and other industrial steam required,
and available for enterprises, institutions, schools, hotels, catering, service industries such as heating, bath, air conditioning and living hot water.
manual feeding boiler specification:
Type |
Rated |
Rated steam Pressure(Mpa) |
Steam Temperature(°C) |
Heating area(m²) |
Grate area(m²) |
Size(m) |
LSH.05-0.4 |
0.5 |
0.4 |
151 |
18.06 |
0.78 |
1.2×3.8 |
LSH0.7-0.4 |
0.7 |
0.4 |
151 |
24.6 |
1.13 |
1.4×3.9 |
LSH1-0.4 |
1 |
0.4 |
151 |
38.6 |
1.54 |
1.6×4.8 |
LSH0.5-0.7 |
0.5 |
0.7 |
170 |
20 |
0.78 |
1.2×3.8 |
LSH0.7-0.7 |
0.7 |
0.7 |
170 |
27.5 |
1.13 |
1.4×4.1 |
LSH1-0.7 |
1 |
0.7 |
170 |
46.3 |
1.54 |
1.6×4.9 |
Model: Fire and Water Tube Black Wood Charcoal fired Horizontal Hot Water Boiler
Brand: Dingsheng
Place of origin: Taikang,Henan.
Export range: Global
Main export port: Tianjin, Shanghai,Lianyungang
Delivery period: 15 days after receiving deposit
Payment: 30% T/T in advance, 70% T/T before delivery,L/C at sight.
MOQ: 1 set
Fuel: Black wood charcoal, blind coal, lean coal, wood chips, lignitous coal, wood, wood brown coal, hard wood char coal, soft coal, palm husk, straw bran, rice bran, straw, straw pellet, wood pellet, sawdust, wood dust, biomass, coal etc
manual feeding coal
Chemical industry, plastics industry, textile industry, rubber industry, food industry, forestry industry, paper industry, etc.
Henan Sheng Zhi han Import and Export Trade Co., Ltd. is vetted and approved by the National Foreign Trade and Economic Cooperation, enjoy the right to operate import and export trade of the joint-stock company. The company diversified mode of operation, import, and export agent for sale, re-export trade, mainly engaged in boilers, reactors, pressure vessels and other mechanical equipment, products are mainly exported to Russia, Mongolia, Korea, Vietnam, Nigeria, Ethiopia, Burma and Southeast Asia, Africa countries and regions.
1.Q: Can you give us a quotation right now?
A: Of course ,we can. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.
requirements.
2. Q: Can you make a design for us?
A: Yes, we can. What we supply is not only product, but also solution and design.
3. Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
4. Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless manmade damage.
5. Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation. If you still have problem, we will
send our engineer oversea for installation guide.
