overhead conductor acsr

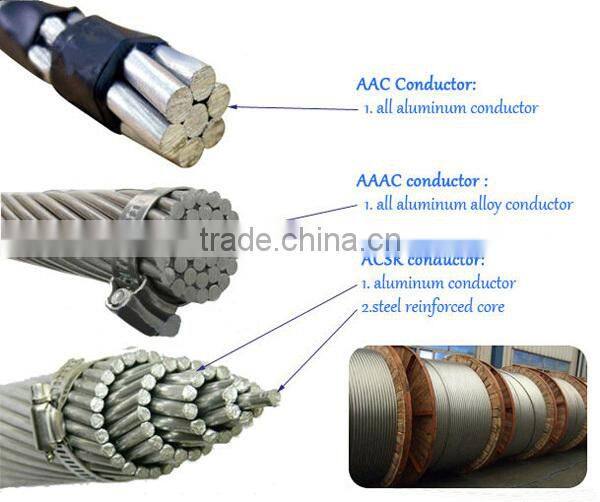

AAC --- All Aluminum Conductor
AAAC---All Aluminum Alloy Conductor
ACSR---Aluminum Conductor Steel Reinforced
AACSR---Aluminum Alloy Conductor Steel Reinforced
Application :
Used bare overhead transmission cable and as primary and secondary distribution cable acsr offers optimal strength for line design without sacrificing ampacity .
Construction :
Aluminium wires are concentrically stranded about a steel core . Additional corrosion protection is available through the application of grease to the core of infusion of the complete cable with grease .
Standards:
Aluminium conductor steel reinforced meet or exceed the following standard : IEC61089,BS EN50182 , BS215part2, ASTM B232 , DIN48204 , GB/T1179-2008.
Production range : 10mm2~3500mm2 .
The data sheets below show part spec of Ametican standards. ASTM B232
Code name |
Aluminum |
Stranding& |
Approx |
Approx |
Breaking |
DC |
||
Area |
Wire Diameter |
Overall |
Weight |
Load |
Resistance |
|||
|
Al |
Steel |
Diameter |
|
|
|
||
AWG |
mm 2 |
No./mm |
No./mm |
mm |
Kg/km |
KN |
Ohm/km |
|
Turkey |
6 |
13.3 |
6/1.68 |
1/1.68 |
5.04 |
53.75 |
5303 |
2.157 |
Swan |
4 |
21.18 |
6/2.12 |
1/2.12 |
6.36 |
85.57 |
8302 |
1335 |
Swanate |
4 |
21.12 |
7/1.96 |
1/2.61 |
6.53 |
99.56 |
10642 |
1352 |
Sparrow |
2 |
33.59 |
6/2.67 |
1/2.67 |
8.01 |
135.7 |
12653 |
0.854 |
Raven |
1/0 |
53.52 |
6/3.37 |
1/3.37 |
10.1 |
216.2 |
19455 |
0.536 |
Quail |
2/0 |
67.32 |
6/3.78 |
1/3.78 |
11.3 |
272 |
23529 |
0.426 |
Pigeon |
3/0 |
85.14 |
6/4.25 |
1/4.25 |
12.8 |
344 |
29417 |
0.337 |
Penguin |
4/0 |
107.2 |
6/4.77 |
1/4.77 |
14.3 |
433.4 |
37055 |
0.268 |
Waxwing |
266800 |
135 |
18/3.09 |
1/3.09 |
15.5 |
430.5 |
30519 |
0.213 |
Merlin |
336400 |
170.2 |
18/3.47 |
1/3.47 |
17.4 |
542.9 |
38487 |
0.169 |
Linnet |
336400 |
170.6 |
26/2.89 |
7/2.25 |
18.3 |
689.9 |
62918 |
0.169 |
Hawk |
477000 |
241.6 |
26/3.44 |
7/2.67 |
21.8 |
975.5 |
86011 |
0.12 |
Dove |
556500 |
282.6 |
26/3.72 |
7/2.89 |
23.6 |
1142 |
100838 |
0.103 |
Peacock |
605000 |
306.2 |
24/4.03 |
7/2.69 |
24.2 |
1159 |
95861 |
0.0948 |
Drake |
795000 |
402.5 |
26/4.44 |
7/3.45 |
28.1 |
1626 |
138669 |
0.0717 |
Rail |
954000 |
483.8 |
45/3.70 |
7/2.47 |
29.6 |
1602 |
115626 |
0.0597
|

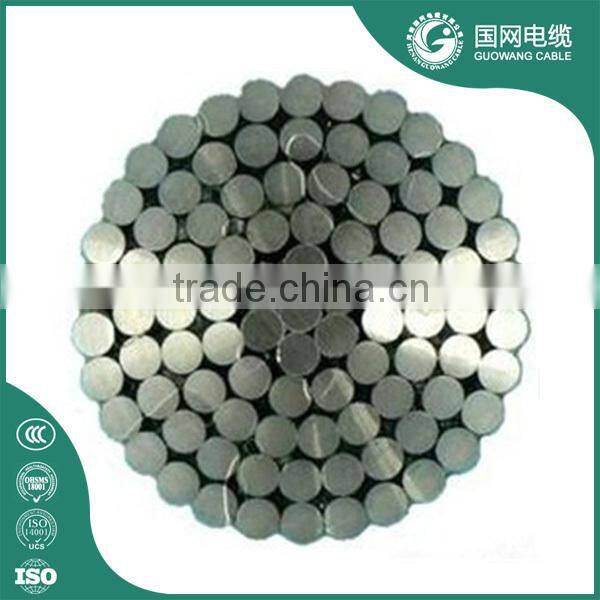

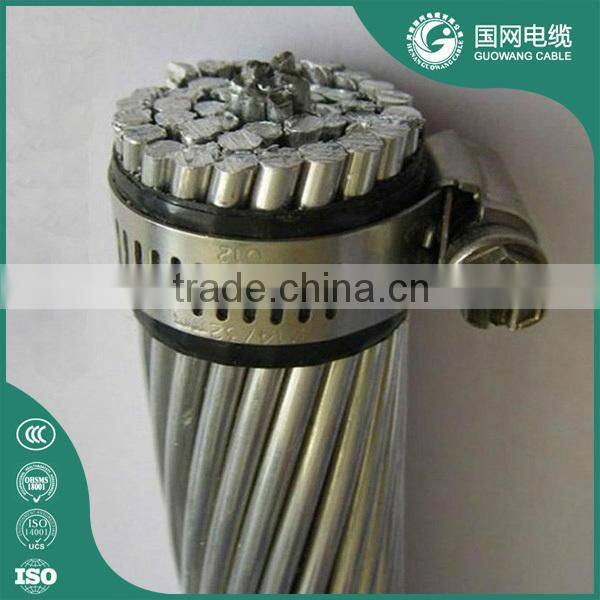

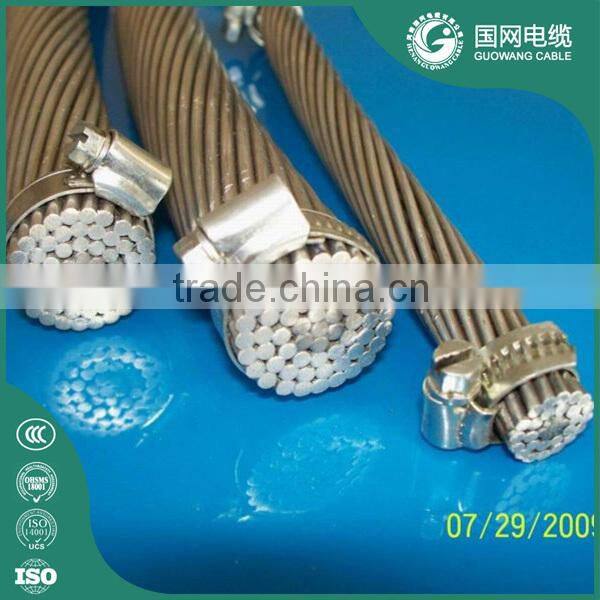

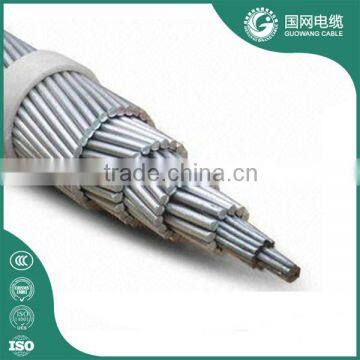

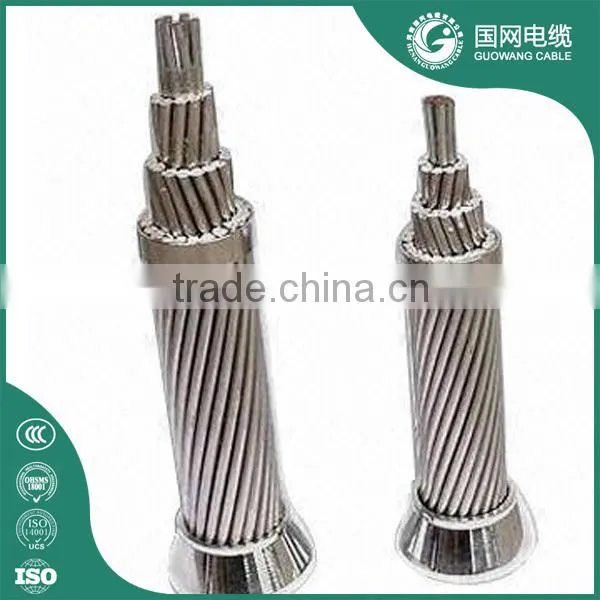

Pictures of overhead conductor acsr
Packaging: Rolls,Wooden drum or according to your request.
Shipping: 15-20 working days after the deposit and the order confirmed.
The advantages of our company:
1) Our company is a professional supplier of various kinds of cables for over 20 years
2) The quality of our products are guaranteed. They are all with CCC, CE, CB and ROHS certificates.
3) The price is averagely 10%~20% lower than the other competitors. Because our factory is located
in a small town. The labor and raw materials cost are relatively low there.
4) Huge Inventory allows us to ship your order immediately.
5) Our employees are all capable and professional. They can offer you the Prompt Courteous Service.
6) We ship worldwide.
Henan Guowang Cable Co., Ltd
Main Products: Power Cable,PVC Cable,XLPE Cable,Rubber Cable,ABC Cable
Location: Henan, China (Mainland)
Year Established: 2012
Year start exporting: 2012
Number Of Employees: 301 - 500 People
Annual Sales Volume: USISO certification power cable specifications1 Million - USISO certification power cable specifications2.5 Million
Main Markets: Domestic Market, Africa, Southeast Asia, Mid East, South Asia
Certifications: ISO9001,OHSAS18001,ISO14001
Product Certifications: CCC
Certification
1.When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
5.What is your terms of delivery?
We accept FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.
If you are interested, please don't hesitate to contact us.Any inquiry or test order will be welcomed!
