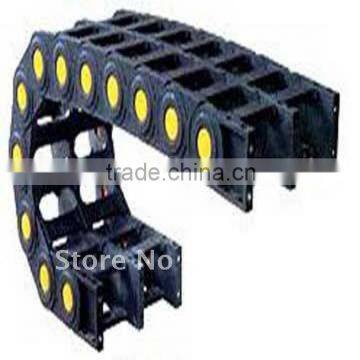

automatical nylon energy chain
| Weight bearing cable carrier chain | ||
| Model | inside height*inside width | bending radius(mm) |
| TEZ25 | 25*25 | 55;75;100;125;150 |
| 25*38 | ||
| 25*50 | ||
| 25*57 | ||
| 25*77 | ||
| 25*103 | ||
| TEZ35 | 35*50 | 75;100;125;150;175;200;250 |
| 35*75 | ||
| 35*100 | ||
| 35*125 | ||
| 35*150 | ||
| 35*175 | ||
| TEZ45 | 45*50 | 75;100;125;150;175;200;250 |
| 45*75 | ||
| 45*100 | ||
| 45*125 | ||
| 45*150 | ||
| 45*175 | ||
| TEZ56 | 56*100 | 150;200;250;300;350;400;500 |
| 56*125 | ||
| 56*150 | ||
| 56*175 | ||
| 56*200 | ||
| 56*250 | ||
| TEZ65 | 65*100 | 150;200;250;300;350;400;500 |
| 65*125 | ||
| 65*150 | ||
| 65*175 | ||
| 65*200 | ||
| 65*250 | ||
| TEZ80 | 80*100 | 200;250;300;350;400;500 |
| 80*125 | ||
| 80*150 | ||
| 80*175 | ||
| 80*200 | ||
| 80*250 | ||
| 80*300 | ||
Characterictics and Applications of Darg Chains
1) The product can be used of such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
2)Each joint of the chain can be opened up so as to facilitate repairs and maintenance.It can also be operated under high speed.
3)The drag chains have already extensively used in digital-controlled machine tools,electronic equipement, machinery for stone induatry ,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,ets.
Construction of the Drag Chains:
The appearance of the chain looks like the crawler of aa tank consisting of certain number of joints.The joints of crawler are freely turned round.
The same series of chain has same inner height and out height and same pitch but the inner height and bend radius R can be made per different specifications.
A unit chain joint is consisting of a left-right chain plate and a updown cover.Each chain joint can be opened up so as to facilitate assembly and dismantal without threading.Cables,oil pipes and gas pipes can be put into the drag chain after the cover plate is opened.
Spacers are availble for use,which are able to divide the space inside the chain into divisions according to requirements.
Basic parameters of drag chains:
Material:reinforced nyion.It can stand with high pressure and has dood tensile strength,toughness and elasticity,wearing and falmable resisance.
Resistances:It is oil and acceleration is 5m/sec.(specific speed and acceleration depends on specific).
Service life:Under normal conmal condition,5 million reciprocating motions can be reached(which is also related to the operating conditions).
Our Company
Hejian Caerd Machine Tools Accessories co.,ltd. we are manufacturer and exporter of machine tool accessories, we can produce all kinds of standard industrial machinery accessories professionally.
Our Company Consumer
Our company's products sell well in many countries and regions.Export the Russia, Spain, France, Australia, New Zealand, the Netherlands, American, Germany, Thailand, Malaysia and other countries and regions.
Many products we can main
Our factory can make all kinds of standard industrial machinery accessories professionally. Such as pull handle, handwheel, handle,hinge, towing chain and so on,contact me if there is something I can help you.
packing in plastic bags with cartons,or as your requirements.
1.Are you a manufacturer?
Yes, we are in this line for 15 years,we do best quality and after service for all clients.
2.Do you have your designing team?
Yes,there are 4 people in our designing team,3 man and 1 woman.
3.Do you have free sample?
Yes ,we can send the sample that you need,the sample can be free,but the shipping freight will be paid by you.
4.Can you ensure the lead time?
All size of our products is in stock,so please take easy and we can let the goods reach you on time.
5.Do you supply after-service?
For all goods, we can supply for after-service for 3 years,and you can call us at any time that you need,
Dear friend,
Thanks for your attention on our plastic square type lifting.
If you have any questions,pls leave me the message on the end of this page .
Or you can chat with me directly ,because I will be mostly on line .
Nice to meet you !
Best regards
