Home > Products > cable chain > High Speed Guaranteed Cable Drag Chain

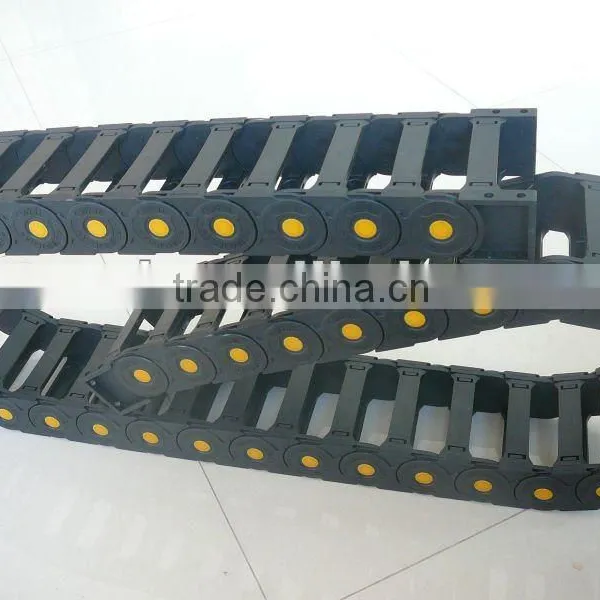

High Speed Guaranteed Cable Drag Chain
- tianjian & shanghai &qingdao
- T/T Credit Card
You May Like
Product Details
| Material | reinforced nylon | Brand | caerd | |
| Model | plastic type |
Product Description
Specifications
high speed guaranteed cable drag chainGoods on stock
Quality Certificate: CE & ISO;
Material:reinforced nylon
(1)Characteristics and Applications cable drag chain
1) The cable drag chain can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
2) Each joint of cable drag chain can be opened up so as to facilitate repairs and maintenance.It gives low noises and is of anti-wearing while running.It can also be operated under high speed.
3)The cable drag chain have already extensively used in digital-controlled machine tools,electronic epuipement,machinery for stone industry,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.
(2)recommended sizes
| Weight bearing cable drag chain | ||
| Model | inside height*inside width | bending radius(mm) |
| TEZ25 | 25*25 | 55;75;100;125;150 |
| 25*38 | ||
| 25*50 | ||
| 25*57 | ||
| 25*77 | ||
| 25*103 | ||
| TEZ35 | 35*50 | 75;100;125;150;175;200;250 |
| 35*75 | ||
| 35*100 | ||
| 35*125 | ||
| 35*150 | ||
| 35*175 | ||
| TEZ45 | 45*50 | 75;100;125;150;175;200;250 |
| 45*75 | ||
| 45*100 | ||
| 45*125 | ||
| 45*150 | ||
| 45*175 | ||
| TEZ56 | 56*100 | 150;200;250;300;350;400;500 |
| 56*125 | ||
| 56*150 | ||
| 56*175 | ||
| 56*200 | ||
| 56*250 | ||
| TEZ65 | 65*100 | 150;200;250;300;350;400;500 |
| 65*125 | ||
| 65*150 | ||
| 65*175 | ||
| 65*200 | ||
| 65*250 | ||
| TEZ80 | 80*100 | 200;250;300;350;400;500 |
| 80*125 | ||
| 80*150 | ||
| 80*175 | ||
| 80*200 | ||
| 80*250 | ||
| 80*300 |
dear friend, thanks for your attention on our cable drag chain.
if you have any questions , pls leave me the message on the end of this page .
or you can chat with me directly ,because i will be mostly on line .
nice to meet you !
best regards
caerd
