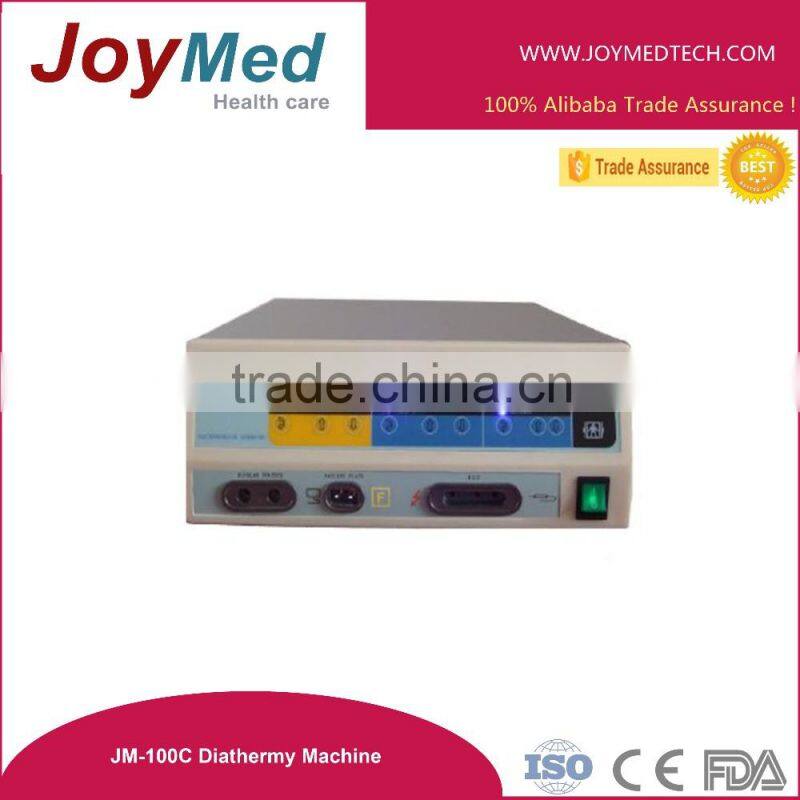

medical devices high frequency electrosurgical unit with ligasure hospital equipment

Microcomputer control.

Both monopolar and bipolar. Monopolar can be controlled by hand or foot. Bipolar can be

controlled by foot only.

Precise power control, can be used for all general surgical procedures.

Touch control panel, three-way power output, with different audible and visual indication

during the process of outputting.

Automatic performance check during startup and Polar plate test.

Full floating output system protects patient from tissue damage caused by low frequency

current.

REM contact quality monitoring system which substantially reduces the risk of burns under the

patient return electrode. When patient plate and skin are not well contacted, the system will

automatically stop the output and sound alarm. Technical Specifications

Power: 220V±22V(110V ±11V), 50Hz±1Hz, Operating frequency:

416kHz

Power rating: 1100VA±10%

Five working modes:

Monopolar Cut

a) pure cut:1W~300W( Load 800Ω)

b) b) Blend:1W~200W(Load800Ω)

Monopolar Coag

c)Coag1( Spray Coag):1W~80W( Load 500Ω)

d) Coag2(Soft Coag):1W~120W( Load 500Ω)

bipolar coag:1W~50W( Load 100Ω)

Power Consumption : <1100VA(Cutting function 300W)
