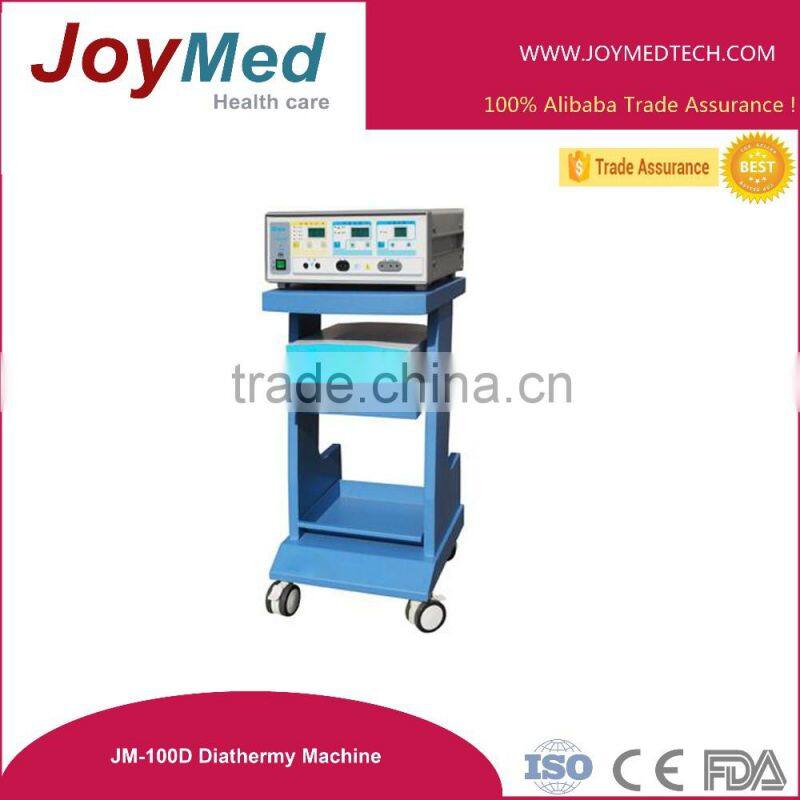

Help CenterFive Working Modes Popular Medical Electrosurgical Device
Related Products
-
SperctrophotometerUS$ 1 - 2,000MOQ: 1 Unit -
Good Effective Prostate Therapy DeviceNegotiableMOQ: 1 Unit
-
Portable Spectrophotometer PriceUS$ 1 - 2,000MOQ: 1 Unit
-
Optical/digital Zoom ColposcopeUS$ 1 - 600MOQ: 1 Unit
-
Men Health Treatment Chronic Prostatitis High Potential Therapy DeviceUS$ 350.00 - 350.00MOQ: 3 Units
Microcomputer control.
Both monopolar and bipolar. Monopolar can be controlled by hand or foot. Bipolar can be controlled by foot only.
Precise power control, can be used for all general surgical procedures.
Touch control panel, three-way power output, with different audible and visual indication during the process of outputting.
Automatic performance check during startup and Polar plate test.
Full floating output system protects patient from tissue damage caused by low frequency current.
REM contact quality monitoring system which substantially reduces the risk of burns under the patient return electrode. When patient plate and skin are not well contacted, the system will automatically stop the output and sound alarm.
Technical Specifications
Power: 220V±22V(110V±11V), 50Hz±1Hz
Operating frequency: 360~460kHz
Power rating: 880VA±10%
Five working modes:
Monopolar Cut
>Cut1 (pure cut):1W~200W( Load 800Ω)
Cut2 (Blend1):1W~150W(Load 800Ω)
c) Cut3 (Blend2):1W~100W (Load 800Ω)
Monopolar Coag
d) Coagulation1(Spray Coag):1W~80W( Load 800Ω)
e) Coagulation2(Forced Coag):1W~120W( Load 800Ω)
Power Consumption : <1100VA(Cutting function 200W)
