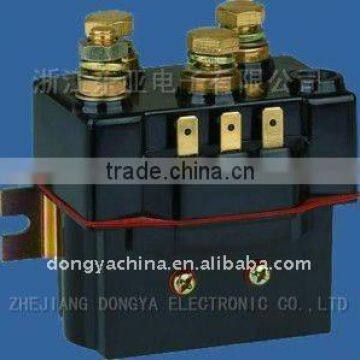

DC CONTACTOR DC88

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

ZLJM-125D/2Z

Zhejiang Dongya Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name DY

Model Number ZLJM-125D/2Z

Electricity Type DC

Number of Pole 2

Phase 2

Main Circuit Rating Voltage Other, 12VDC-120VDC

Main Circuit Rating Current Other, 125A

Specifications

1.DC CONTACTOR ZLJM-125D/2Z(DC88)
ntact form: Paired SPDT with 125A
3.Mainly for forklift
4.UL certificated

DC CONTACTOR RELAY ZLJM-125D/2Z(DC88P)

Model No.		ZLJM-125D/2Z
Contact Arrangement		Paried SPDT
Contact Material		AgCdO(12)
Contact Rating (at Resistive Load)		125A 48VDC 125A 250VAC
Max. Switching Voltage		60VDC,250VAC
Over carry the electric current7Ie/10S		1400A/10S
Rated coil volt(V DC)		12,24,36,48,60,120etc
Operating volt in cold state at (20±5)^oC(vdc)	Pick-up max	(40%-70% ) of rated volt
	Drop-out	( 5%-30% ) of rated volt
Contact Resistance		Max. 50mΩ(initial)
Insulation Resistance		Min. 100MΩ at 500VDC
Puncture (volt) Strength		1000VAC 50 HZ/60 HZ (1 minute)
Operate Time		Max. 50mSec.
Release Time		Max. 50mSec.
Ambient Temperature		-25^oC~+40^oC
Relative humidity		up to 98% at +20^oC
Vibration freq.at the fixed position		3g,1-50HZ(frep.1-10HZ,ampl.25/f²; frep.10-50HZ,ampl.250/f²⁾
Electric lifeτ≤0.001Scycles		6000
Mechanical lifecycles		100000
Mounting directions		The contactors can be mounted vertically or horizontally,if mounted vertically the coil should be at the bottom
