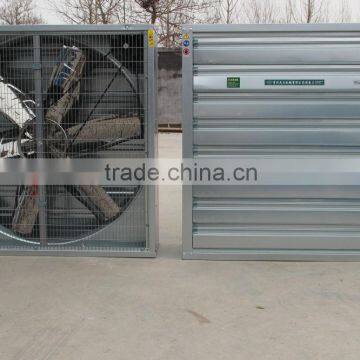

Stainless steel automatic air cooler ventilator fan Stainless steel automatic air cooler ventilator fan
1.big wind capacity
2.low noise.
3.galvanized steel or stainless steel material
4.muti-size profile
Characture:
1,The outline border adopts advanced automatic process, more accuracy,high zinc coated material.
2,The aluminum metal alloy of the high strength hub, adopts aviation aluminum magnesium metal alloy, light weight, high strength, good tensile.
3,Belt adjust automatically, no need manual adjustment during lifetime.
4, Shutter adopt special push-pull centrifugal device, ensure shutter totally open and close, windproof, rainproof and dustproof.
5, Newly punch forming fan blade, reasonable angel and reach the max. air flow, mini. Noise.
6,Double bracing (E style) belt transporter, Europe industry motor standard.
7, Safety net easily tears down.
8, Strictly quality test process: noise test, vibration test .concentric performance test, fan blade turning speed test, input air teat and vehicle efficiency test.
9,Special motor hole wind shield, avoid losing wind to reach the best wind suck effect.
10, belt type B,thicker and durable ,double life time.
|
fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade. |
|
Belts are Japanese Mitsubishi brand, ensure the long service life, maintenance free. From 2010 the first adopt Type B belt which is 3times longer service life i nstead of type A. |
|
Both China famous motor and Siemens motor are available. Motor voltage and f requency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55, insulation class F grade. |
|
Fan bearing adopts imported double-row bearing with special waterproof design, water can’t enter. High strength, lower noise, maintenance free and long service life. |
|
Motor plate has multiple functions with the use of a unique design. Both 1HP and 1.5HP motor are available. The motor pulley and belt pulley in the same line in order to reduce the belt wearing and increase belt service |
Other products
Packaging & Shipping

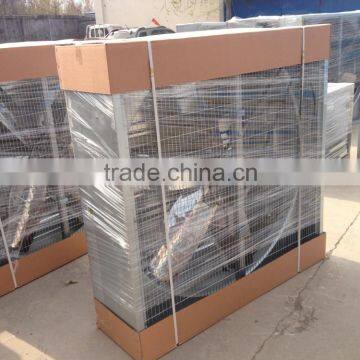

1. Package with carton box in completely assembled or unassembled.
2.Shipped with dry containers, set off Qingdao Port, can be delivered to the destination Port in 15 days after receiving deposit.
Warranty: 1 Year( according to our general sales conditions)
Our Services
1.Sample is available, it needs pay first.
2.The Galvaized Sheet frame, and the Stainless Steel frame is available.
We serve all of our customers with best quality products and lowest price to make foreign customers' profit and market larger.
FAQ
1. Price items: EXW, FOB Qingdao, CFR or CIF
2. Payment term: 30% T/T deposit in advance, the balance be paid againse the BL copy. Or 100% L/C at sight. It is negotiable.
Company
Qingzhou Tianhui Machinery CO.,Ltd is a professional company to produce environment controlling equipment,greenhouse and poultry equipment in China.For many years it engages in design,production and instalation of the project and service.It uses advantage CAD software to produce new products and study international advanced technology constantly in order to make the best product with energy conservation,high efficiency and environment protection.
Company uphold the managing principle of draw from others and self-discipline and create constantly by eyes and heart,by “begin with customer’s needs, end with customer’s satisfication” as the management aim, worry about what customers worry about, think about what customers think about,keep the profit and industry scale increase stably in the meanwhile build good relationship with partners.
Company business area: The design and installation of new workshop,standard poultry housse,greenhouse,ventilation, cooling and heating engineering. The design and manufacture of greenhouse and poultry produce equipment.The planning and design of moderate breed project and whole service.
Company mainly products:new workshop,standard poultry housse,greenhouse,ventilation, cooling and heating equipment:exhaust fan,cooling pad and heater stove etc.Automatic poultry raise equipment:automatic feeder/automatic drinker and dung clean machine etc.
Qingzhou Tianhui Machinery CO.,Ltd want to copperate with you by first class equipments,abundant technic power and excellent service.The whole company welcome your coming in the form of letter or yourself coming.
