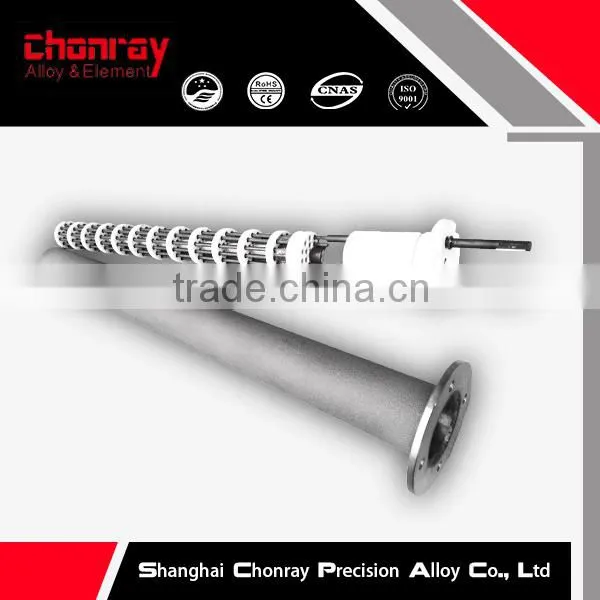

Radiant tube heater electric high resistance heater water heater

Name: Radiant tube heater electric high resistance heater water heater
Brand: Chonray
Price: USD $150 - 400 / Set

FOB Price

USD $150 - $400 / Set

30 Sets(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Resistance Furnace	Usage:	Heat Treatment Furnace
Place of Origin:	Shanghai, China	Brand Name:	Chonray	Model Number:	FeCrAl or NiCr
Voltage:	Customized	Power(W):	1Kw-40Kw	Dimension(LWH):	Customized
Weight:	Customized	Certification:	CE,ISO certificate	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

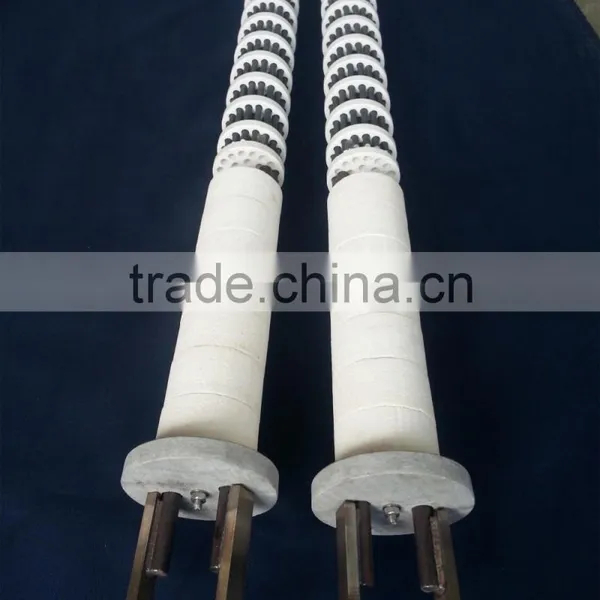

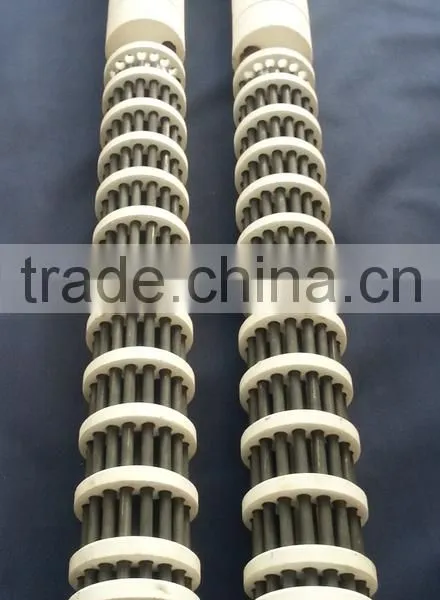

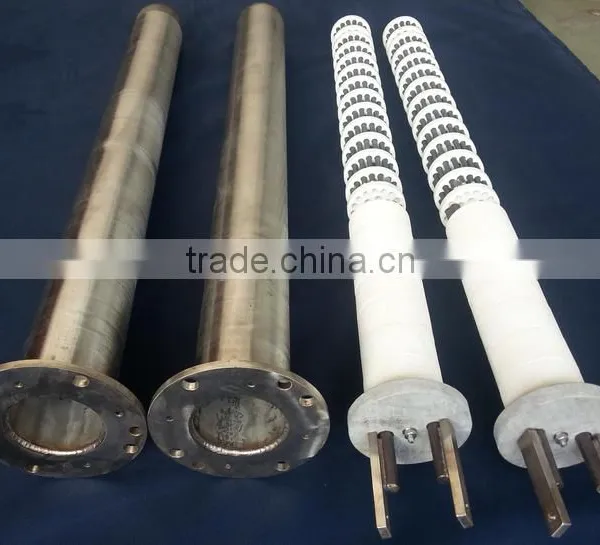

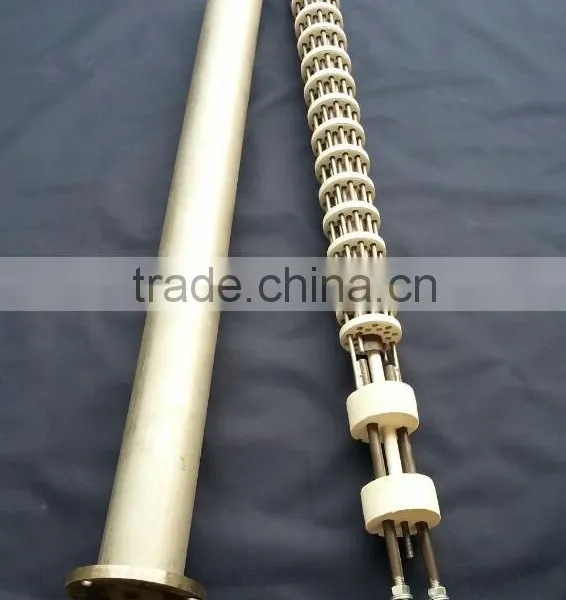

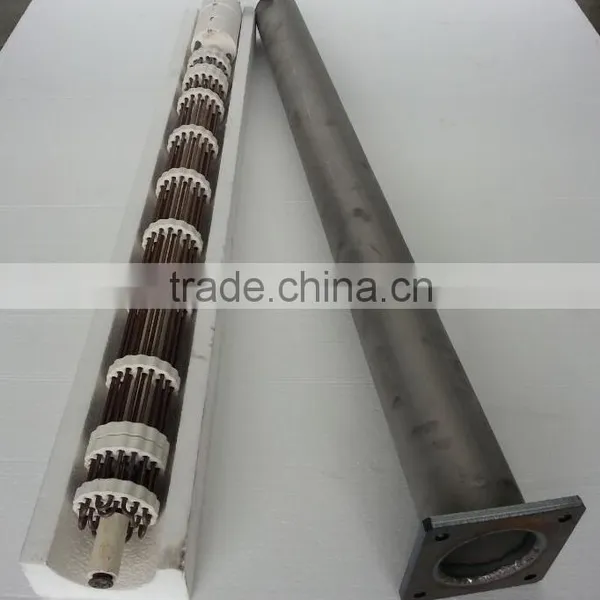

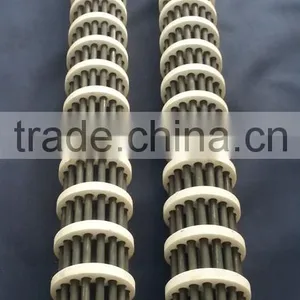

1.The picture of superior materials Cr20Ni80 vertical element

2. Characteristics:

1) The highest working temperature up to 1300 degree.

2) Higher elongation

3) More stable mechanical properties

3. Applications

Superior materials Cr20Ni80 vertical element is widely used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

4. Main grades and properties

Alloy Material	Chemical Composition(%)
	C	P	S		Mn	Si	Cr	Ni	Al	Fe
	Max.(≤)					Si	Cr	Ni	Al	Fe
Cr20Ni80	0.08	0.02	0.015	0.6		0.75-1.60	20.0-23.0	Rest	≤0.50	≤1.0
Cr30Ni70	0.08	0.02	0.015	0.6		0.75-1.60	28.0-31.0	Rest	≤0.50	≤1.0
Cr15Ni60	0.08	0.02	0.015	0.6		0.75-1.60	15.0-17.0	55.0-61.0	≤0.50	Rest
Cr20Ni35	0.08	0.02	0.015	1		1.00-3.00	18.0-21.0	34.5-36.0	-	Rest
Cr20Ni30	0.08	0.02	0.015	1		1.00-2.00	18.0-21.0	30.0-31.5	-	Rest
1Cr13Al4	0.12	0.025	0.025	0.7		≤1.00	12.5-15.0	-	3.5-4.5	Rest
0Cr15Al5	0.12	0.025	0.025	0.7		≤1.00	14.5-15.5	-	4.5-5.3	Rest
0Cr25Al5	0.06	0.025	0.025	0.7		≤0.60	23.0-26.0	≤0.60	4.5-6.5	Rest
0Cr23Al5	0.06	0.025	0.025	0.7		≤0.60	20.5-23.5	≤0.60	4.2-5.3	Rest
0Cr21Al6	0.06	0.025	0.025	0.7		≤1.00	19.0-22.0	≤0.60	5.0-7.0	Rest
1Cr20Al3	0.06	0.025	0.025	0.7		≤1.00	18.0-21.0	≤0.60	3.0-4.2	Rest
0Cr21Al6Nb	0.05	0.025	0.025	0.7		≤0.60	21.0-23.0	≤0.60	5.0-7.0	Rest
0Cr27Al7Mo2	0.05	0.025	0.025	0.2		≤0.40	26.5-27.8	≤0.60	6.0-7.0	Rest

5. More products for you to choose.

Company Information

Shanghai Chonray Precision Alloy Co., Ltd.was founded in 2000,located in Shanghai City. Chonray Alloy is specialized in high-end electric resistance alloy materials,highly engineered as well as standard electric heating elements,and optimized electric heating element solutions.

Chonray Alloy has years of partership with Sandvik Materials Technology with Brand name of Kanthal from Sweden, a benchmarking company in industrial heating technology and resistance materials in the world.Strictly implementing Kanthal heating system standard, using advanced manufacturing and testing equipment, Chonray Alloy provides a full range of high-quality resistance materials, precision alloys,electric heating elements for industrial furnace.Carrying ISO9001 2008 and ISO14001 Certificate, Chonray professional team is fully qualified to satisfy your sales, engineering and logistics requirements. We are well positioned to meet the world increasing demand for industrial electric heating applications .Meanwhile, Chonray offers high quality products at competitive pricing backed by years of industrial experience.

Our major product line:

l Electric resistance alloy materials in wire, strip, tube, and bar form.

l Furnace products and heating systems:

Metalic heating elements
Heating modules: Prefabricated heating modules with electric heating elements and fiber or dense ceramic insulation.
Air heating cassettes: Cassettes with metallic heating elements for heating of air or gases
Diffusion Cassettes: Diffusion cassettes for the production of crystalline silicon wafers for solar cells and semiconductors
Furnace tubes: Extruded tubes made from FeCrAl alloys for gas-heated or electrically heated furnaces.
Construction materials: Wire, strip, tube and bar for manufacturing of furnace furniture and other furnace accessories
Furnace rollers: Furnace rollers for heat treatment furnaces.
Resistance heating wire and strip.: Resistance heating wire and strip for manufacturing of electric heating elements.
Technical Ceramics: Ceramic supporting materials for electrothermal components.
Thermocouple wire and strip: Wire, ribbon and strip for thermocouples, extension leads and compensating cables.
Ceramic engineering material: Ceramic engineering material for high-temperature and chemical environments.
Electric heating systems: Electric heating systems for aluminium and steel production

Our application area:

Our products are widely used in heat treatment equipment, auto parts, iron and steel manufacturing,

aluminum industry, metallurgical equipment, petrochemical equipment, glass machinery, ceramic machinery,

food machinery, pharmaceutical machinery, and power engineering industry.

Production line

Testing Equipment

Certification

Packing picture:

Our market

Our advantages and services

a. Our advantage

We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.

We can provide all kinds of electric heating alloy material and elements, including customized products.

We can provide a complete solution for you.

OEM service can be provided.

b. Technical services we can provide:

Product selection

Process optimization

New product development
