Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Switch Power(S-25W)

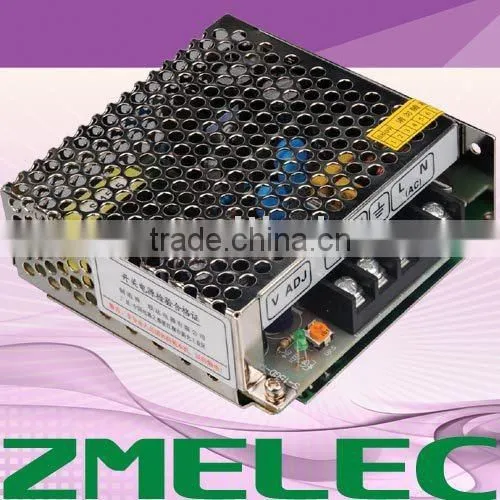

Switch Power(S-25W)

Switch Power(S-25W) thumbnail-1
Switch Power(S-25W) photo-1
US$ 4 - 8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ZMELEC or OEM
Model Number:
S-25W
Contact Supplier Request Quote Chat Now
Yueqing Zhongming Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ZMELEC or OEM
Model Number S-25W
Output Power 1 - 50W
Output Type Single
Input Voltage Other, 85V-132V 170V-264V
Output Voltage DC12V/15V/24V
Output Frequency 47-63Hz
Output Current 12V/2.1A 15V/1.7A/24V/1.1A

Specifications

DC Power Supply
Input Voltage:85V-132V 170V-264V
Input current:0.6A/115V 0.35A/230V
Ouput:12V/15V/24V
CE approved

DC Power Supply/Switch power supply/Switching power supply

Main Spec:

1.Connection place:5 poistion terminal blcok 9.5mm

2.L.N ac Input

3.-V DC output

4.+V DC output

5.Type:S-25-12    12V  0~2.1A

          S-25-12    15V  0~1.7A

          S-25-24    24V  0~1.1A

6.Efficiency: 12V/68%   15V/68%   24V/72%

7.Input ac voltage range:85V-132V 170V-264V

8.Input current:0.6A/115V  0.35A/230V
8.Frequency:47~63Hz

9.Ac Inrush Current:Cold-start current 15A/115V 30A/230V

10.Leakage Current:<0.5mA/240V AC

11.Over-load Protection:105~150% cut down output.auto-recovery

12.Over-voltage protection:115%~135%

13.Set up,Rise.Hold up time: 200ms  100ms  30ms

14.Withstand Voltage: I/P-O/P:1.5KV AC 1 minute

                               I/P-F/G:1.5KV AC 1 minute

                               O/P-F/G:0.5KV AC 1 minute

15.Working Temperature:-10~60 degree

16.Weight/Packing:0.3kg

17.Dimension(mm):99*97*35mm
