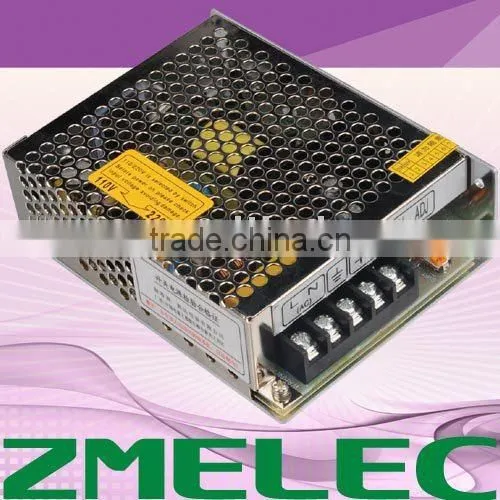

Help CenterSwitch Power Supply(S-40W)
Related Products
Specifications
switch power supplyInput Voltage:85V-132V 170V-264V
Input current:1.2A/115V 0.6A/230V
Ouput:12V/15V/24V
CE approved
DC Power Supply/Switch power supply/dc regulator
Main Spec:
1.Connection place:5 poistion terminal blcok 9.5mm
2.L.N ac Input
3.-V DC output
4.+V DC output
5.Type:S-40-12 12V 0~3.5A
S-40-15 15V 0~2.8A
S-40-24 24V 0~1.8A
6.Efficiency: 12V/76% 15V/76% 24V/78%
7.Input ac voltage range:85V-132V 170V-264V
8.Input current:1.2A/115V 0.6A/230V
9.Frequency:47~63Hz
10.Ac Inrush Current:Cold-start current 18A/115V 36A/230V
11.Leakage Current:<0.5mA/240V AC
12.DC adjustable range:rated output voltage +/-10%
13.Over-load Protection:105~150% cut down output.auto-recovery
14.Over-voltage protection:115%~135%
15.Set up,Rise.Hold up time: 200ms 100ms 30ms
16.Withstand Voltage: I/P-O/P:1.5KV AC 1 minute
I/P-F/G:1.5KV AC 1 minute
O/P-F/G:0.5KV AC 1 minute
17.Working Temperature:-10~60 degree
18.Weight/Packing:0.4kg
19.Dimension(mm):129*98*38mm
