ST Transformer

ST Transformer thumbnail-1
ST Transformer photo-1
US$ 4 - 8 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ZMELEC or OEM or ODM
Model Number:
ST-1000VA
Contact Supplier Request Quote Chat Now
Yueqing Zhongming Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ZMELEC or OEM or ODM
Model Number ST-1000VA
Usage Power
Phase Single
Coil Structure Other, EI
Coil Number Autotransformer

Specifications

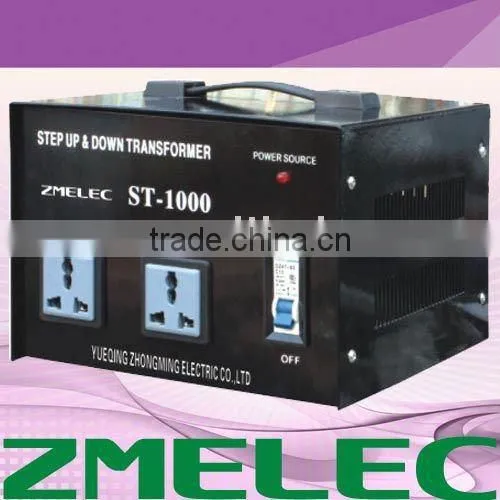

ST step down transformer
Power:100W-10KW
Input:110V/220V/240V
Copper wire winding/3 years Warranty
CE Soncpa approve

Application

ST series step-up /Step-down transformer is an AC voltage converting device./power converters Using it is to convert the multi-kind net voltages into a general output voltage under which all the electronic units are safe or use within the rated power range

Main Specification

* Two sockets

* Carrying handle

* Input voltage selector

* ON/OFF switch

* Two free spare fuses

* Warranty: one year manufacture's parts and labor

Main Function * This voltage converter can be used in 110 volt countries and 220 volt countries. It will convert from 220-240 volt to 110-120 volt AND from 110-120 volt to 220-240 volt. * Precise input voltage selection according to the country where it is being used. * Input voltage selector: 240V-220V-200V-110 volt * Output: 110/220-240 Volt * Suitable for Water Dispenser, Printer Rice Cooker, Fan, Fax Machine, Air Machine, Computer.



Product Description

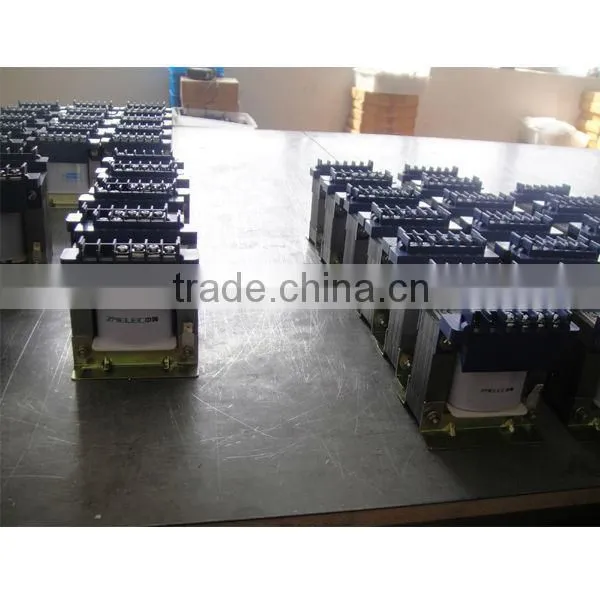

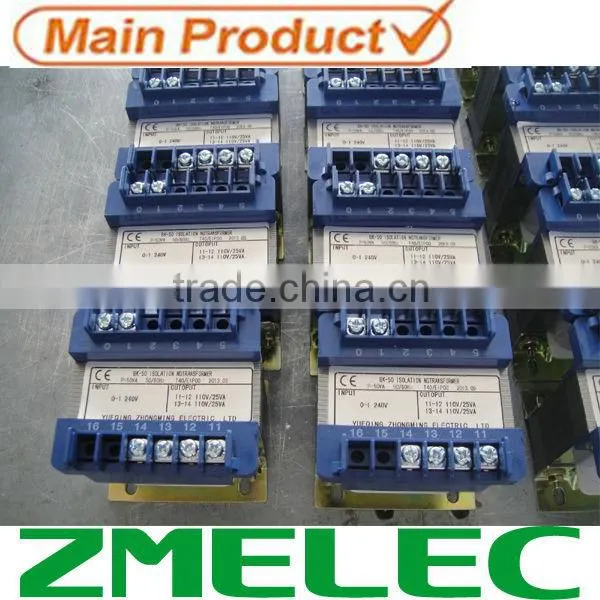

ST TransformerST TransformerST Transformer







Outline and Install dimension
type
Outline dimension(mm)
Hole distance for installation(mm)
Installation hole(mm) K × J
Bmax
Dmax
Emax
A
C
BK-50
78
66
90
56±0.4
50±3
5 × 12
BK-100
84
78
93
56±0.4
62±2.5
6 × 12
BK-150
102
88
110
83±0.4
70±2.5
6 × 12
BK-250
102
95
110
83±0.4
76±3
9 × 11.5
BK-300
120
127
135
100±0.4
90±3
9 × 11.5
BK-400
146
130
160
123±0.4
90±3
9 × 11.5
BK-500
146
145
160
123±0.4
105±3
9 × 11.5
BK-700
146
155
160
123±0.4
115±3.5
9 × 11.5
BK-1000
150
165
160
123±0.4
125±3.5
9 × 11.5
BK-1500
171
200
190
145±0.4
135±3.5
9 × 11.5
BK-2000
180
230
210
145±0.4
160±3.5
9 × 11.5




Packaging & Shipping

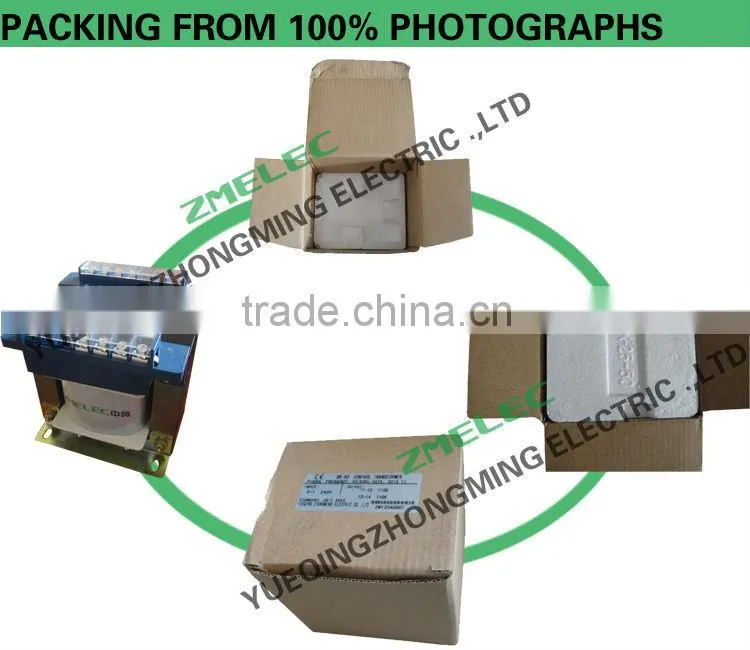

Standard export wooden case with Plastic Strap wtih foam,English Operator manual,Packing Dimension:40*25*25cm.One standard Export Carton box 16pcs.shippig weight 25kg



ST Transformer


Our Services




1.Quality control

transformer quality control for very customer very important.we control quality from very one spare part.especally silicon sheet. see picture below we buy silicon sheet testing.if you want to know more information how about our how to keep stabilizer quality good.pls contact our email.

ST Transformer



2. Quality Guarantee

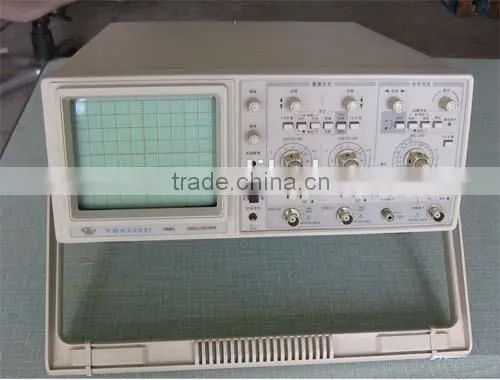

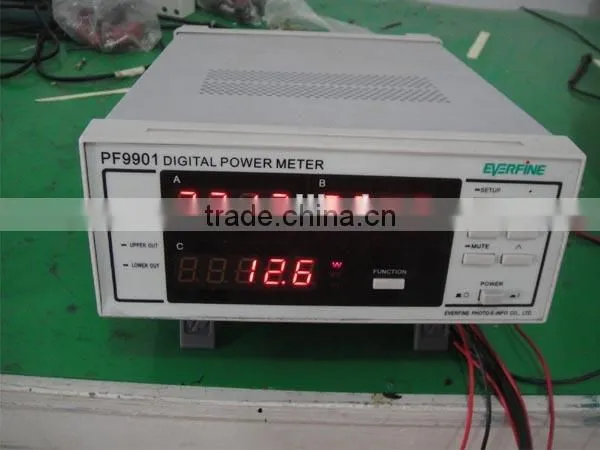

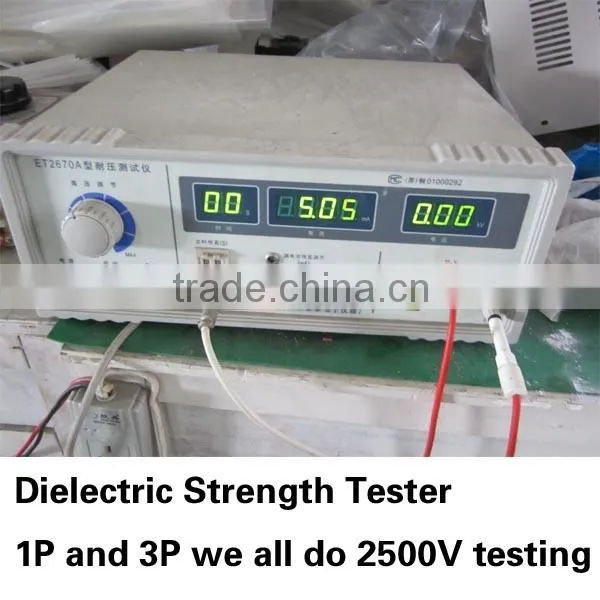

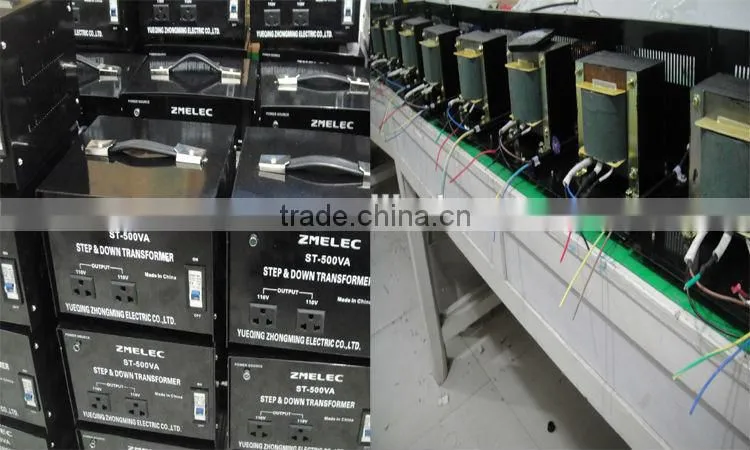

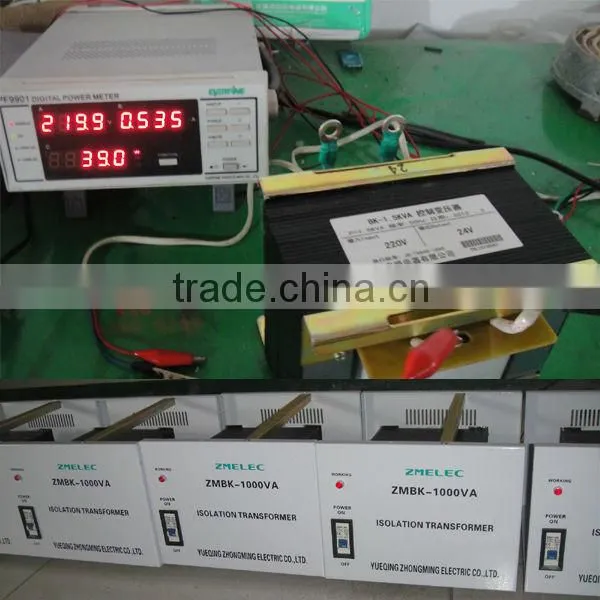

we give our customer isolation transformer quality guarantee period 2 years if proper loading we give customer 5 years and adopt our technician suggestion.every isolation transformer we first testing part quality then assmbel finished testing output and loading testing.after testing finished we make dynamic testing.after packing we testing again.see below our testing equipmentST TransformerST TransformerST TransformerST Transformer



3.If isolation transformer get any problem or have any specially design inquiry.we will reply customer within 24 hours.bcos our sale person is technician.



like three phase isolation transformer big current loading for output and DC voltage output and surge protect and over-loading protect.full power loading design.silicon area and winding wire size design specally.

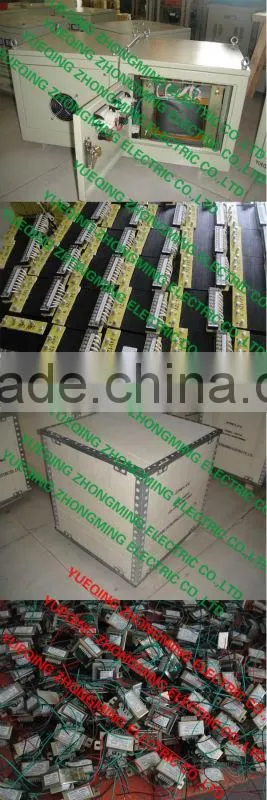

see below picture with isolation transformer control

ST Transformer





4.OEM/ODM available



we accpet customer OEM or ODM.customer send to our your logo and company name and packing box design.if no have design.we can design for customer.then printing voltage stabilizer panel logo and company name.samll power carbon box we printing customer logo and company too



5.we accpect sample order testing our quality.



at make sample before we confirm all specification no problem.first we will testing by our sale person.after we testing finished.we will send to customer check quality.small power sample we give customer sample for free.customer pay shipping cost.





Company Information


ST Transformer







FAQ



1.About Our transformer how to make quality no any problem.

first we used is good material silicon sheet.thinkness is 0.35mm.second we make winding time calcutae the data according silicon sheet 1.1 times.and copper wire we make current according 6A per square.aluminum wire small current we do according 3A per square.big current we do according 1A base one square.

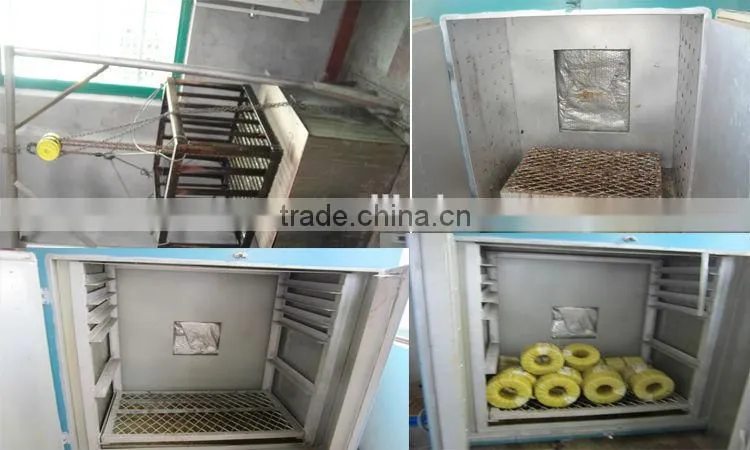

we have winding machine and Dipping paint(immerse machine).silicon testing no loading current machine.

if we receive customer order.we first make one sample testing.and show customer detail testing report.and silicon size and wire size for our customer reference.after custome confirm okay.we will begining make all production order.bcos sale person also is one technician person.

ST Transformer



2.About How Control transformer no any problem.
our company worker 80% is from company parter.not like other factory worker wage from do working how many pcs assmble.no assmble transformer or testing transformer no wage.we difference.if control worker how to working that mean will be easy control quality.transformer 60% quality problem from worker.20% quality problem from material and 20% design size.we make all customer transformer keep quality is NO.1 bcos our company sale person will be testing customer products by ourself.not only engineer one person testing.if want to know detail.pls email us discussing.we are is one professional transformer factory.not is trading company.

3.About transformer me customer call efficience
in our city liushi 90% factory do power at most 80%.some time some factory only do
70% power or 60% power.new customer search and send to many inquiry to many factory and trading compay.get very difference me sale person tell to customer we power have 90% or 100%.so how to get 90% and 100%.from the transformer silicon material and size.loading power if silicon sheet size ding wire also very improtant.light weight impossible get high quality power.for exsample 2000va isolation transformer input 230V and output 230V.general to do net weight have 21kg around.this weight design.the bobbin size at least meet 60*105.usd copper wire size 1.68.if do high quality design bobbin must change 60*110 and wire size change for 1.8.this design weight aroundard 22.5kg.


4.About Payment Terms:

General we do with customer 30% T/T deposite and 70% balance after loading

container see BL copy. also we do bangladesh and egypt customer by 100% LC.sample order shipping cost by West Union or Customer shipping account No.also we accpet Paypal Escrow





.
