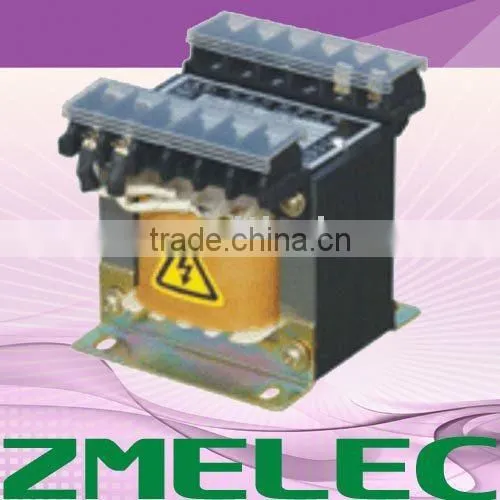

JBK Transformer

JBK Transformer thumbnail-1
JBK Transformer photo-1
US$ 2 - 10 MOQ: 300 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ZMELEC or OEM
Model Number:
JBK-40VA
Contact Supplier Request Quote Chat Now
Yueqing Zhongming Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ZMELEC or OEM
Model Number JBK-40VA
Usage Power
Phase Single
Coil Structure Other, EI
Coil Number Other, Isolation

Specifications

BK Control transformer
Full load Temperature Rise no more 85 degree
Warranty: 3 years
10 years experience.
CE Soncap appro

Application:
  JBK Series machine tool control transformer suitable for AC 50/60Hz,Output rated voltage no more 220V input rated voltage no more 660V circuit.,As various types of machine tools, machinery and equipment, the control of the general electric power supply, local lighting, work lighting, signal power and light power.
Structure Character:
  This series transformer is the other control transformer replacement products, using imported materials and advanced technology of manufacturing, with reliable operation, low power consumption, small size, connection security, broadly applicable and so on.
Model Means:
JBKX-Z
  JB: Machine Tool Transformer
   K: Control
  X: Design serial number(1,2,3,4)
  Z: Rated Capacity
Working Enviconment
1.Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;
2.Altitude for installing place should not exceed 1000m;
3.When the ambient  air  temperature is +40°C, the relative humidity should  not  exceed 50%, and  it allows  higher relative humidity under lower temperature. Max average humidity in the  dampest month is 90%,  meanwhile  the lowest  average  temperature  of  this  month is  + 25°C,  and  condensation  on  the  product  surface  caused  bytemperature change should be taken into consideration.
JBK3 Outline and Install dimension

Type
Outline dimension(mm)
Installation dimension(mm)
Installation
hole(mm)
K × J
Bmax
Dmax
Emax
A
C
JBK3-40,63
82
76
92
56±0.4
47±2
5×9
JBK3-100
86
90
98
64±0.4
66±2
5×9
JBK3-160
98
96
112
84±0.4
71±2
6×9
JBK3-250
98
110
112
84±0.4
85±2
6×9
JBK3-400
122
112
130
90±0.4
90±2
8×14
JBK3-630
152
110
150
122±0.5
85±2
8×14
JBK3-1000
200
165
150
158±2
145±2
7×14
JBK3-1600
225
185
155
185±2
155±2
7×14
JBK3-2000
265
210
175
210±2
175±2
7×14
JBK3-2500
265
210
175
210±2
175±2
7×14
