Home > Products > PSA Oxygen Generator > Paper Making Used Oxygen Machine with CE & ISO Certificate
Paper Making Used Oxygen Machine with CE & ISO Certificate
- 500 Set / Sets per Month
- Shanghai Port or any other Chinese Ports
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | ZHONGRUI |
Model Number: | ZRO2 | Usage: | Oxygen | Production Rate: | 500sets/year |
Voltage: | 220V/380V/440V | Power(W): | 0.1KW | Weight: | 3500KGS |
Dimension(L*W*H): | 2000*2000*2600mm | Certification: | CE/ISO9001 | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description
1, Product Name: PSA Oxygen Generator

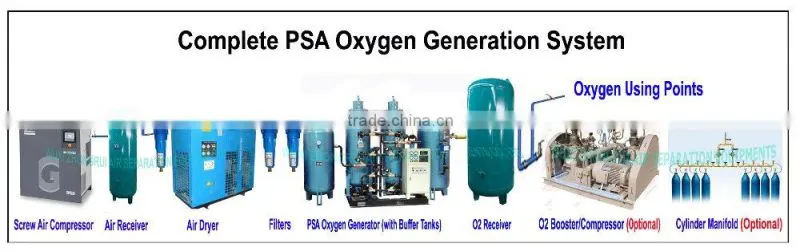

A full installation requires air compressor, refrigerated air dryer, filters, air tank, oxygen generator
and gas buffer tanks.
We supply full installations but each component, and other optional supply like boosters, high
pressure compressors, oxygen cylinders or filling stations can also be bought separately.
2, Principle
PSA oxygen generator uses clean compressed air as raw material and zeolite molecular sieve (ZMS) as
sorbent, to produce oxygen gas with Pressure Swing Adsorption (PSA) technology in normal
temperature. Comparing with oxygen, nitrogen is preferentially adsorbed by ZMS while at high pressure.
ZMS releases adsorbed nitrogen at low pressure, which is called regeneration. The oil-free and
dust-free compressed air enters one of the two adsorption towers filled with ZMS. Nitrogen is
adsorbed ZMS micro pores and then retained and leaves oxygen as product gas. When ZMS in one tower is
saturated with nitrogen, the adsorption tower is depressurized and ZMS is regenerated for next cycle.
While one tower finishes the cycle, the other adsorption tower starts to work. With control on/off state
of the pneumatic valve by PLC, to separate nitrogen and oxygen gas, and create continuous flow of oxygen
with required purity.
3, Specifications
Oxygen Purity: 25%-97%±1
Oxygen Capacity: 1-1000Nm3/h
Oxygen Pressure: 0.1-0.5MPa
Oxygen Dew-point: ≤-40℃
ZHONGRUI can design a oxygen generator that fits your particular requirements.

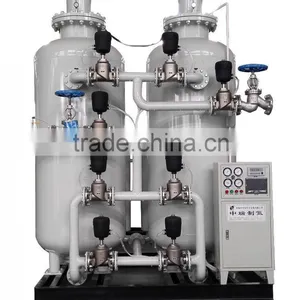

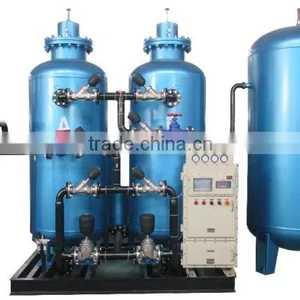

Oxygen Generator Photos
Application of Oxygen Generator
Applied in smelting of nonferrous metal, chemical production, cement production, paper pulp and
paper making, glass kiln, solid waste incineration, sewage treatment, waste gas treatment, etc.
industries.
Packing & Shipping
Company Information
1, Our Office
2, Our Workshop
3, Fairs/Shows
4, Certificate
5, Our Design (R&D)
6, Quality Control
You can be sure of the quality of your ZHONGRUI solution. ZHONGRUI uses only the best
suppliers and components. And all oxygen generators are tested before they leave the
factory.
Service & Support
ZHONGRUI offers a range of services to help you maximize your benefits. For maximum
convenience, we offer a fixed price service agreement based on operation time or calendar
time. Of course, all customers are welcome to call us at any time. We are always more
than willing to assist you.
1) Consultancy
Help for self-help, exchange of experience and individual support.
If you have questions on plant operation or need somebody for troubleshooting, we give you
advice either on the phone or in writing. The direct contact with you is very important for us as
it is the basis for a permanent cooperation as partners to the benefit of both sides.
2) Commissioning
Systematic from final acceptance of erection to approval of proper operation and guaranteed
features. This includes extensive operational tests, professional filling with adsorbents
and catalysts, proper start-up, optimal setting of operating parameters and check of all safety
functions. At the same time we train your operating personnel on functions and operation of the
plant.
3) Spare Parts Service
Worldwide, quick and low-priced over the complete lifetime of your plant. The distinct tagging
of all plant components delivered by us enables us to identify clearly the spare parts
requested by you. We supply you with products designed for a long life and economic effciency.
For modifications and extensions we look for the most optimal and economic solution for your
individual purpose.
4) Maintenance/Revisions
Regular inspection and maintenance ensures permanent operation, avoids damage and prevents
unexpected breakdowns. In the course of maintenance/revision works we check all relevant
components for function and condition, exchange defect, used and worn parts and afterwards
optimally eadjust your plant to the given operating conditions. Depending on the plant size and
scope of work, our service range comprises also a detailed scheduling of revisions as well as
coordination and supervision of contractors. As a matter of course we supply maintenance
documentation in form of reports and spare part recommendations, and we coordinate our
schedules according to your requirements.
5) Training
Know-how for your personnel.
Operation, maintenance and repair, electric measuring and control equipment or process
engineering – we offer you specific training by our experts. Whether on site working with the
plant itself, or on our permises, we concentrate on your questions and problems.
Customers
Machines using in customers’ factories:
Why Choose Us?
Benefits | You get many benefits from a ZHONGRUI solution - here are some: |
Flexible | • Be you own supplier • On-site and mobile solutions • Produce gas when and where you need it • Get a solution that exactly fits your needs |
Cost saving | • Low installation and running costs • ZHONGRUI generators run on electricity only • Minimum maintenance • Having your own supply prevents downtime due to gas shortage • No excess gas is produced • No transportation or delivery charges • Quick pay-back - often less than a year |
Easy operation | • Fully automated oxygen generators • Minimum maintenance • Easy installation and operation |
High quality | • Only quality components are used • Durable and reliable oxygen generators |
Which Oxygen Generator Should I Choose?
Different parameters are essential for your choice of oxygen generator
• How big is your consumption?
• Is your consumption variable?
• Which pressure is required?
• What purity is required?
• Do you already have a compressed air system?
This is our standard range of oxygen generators. If you have other requirements we will be
happy to produce a generator that matches your needs.
Welcome to contact us for more details!
