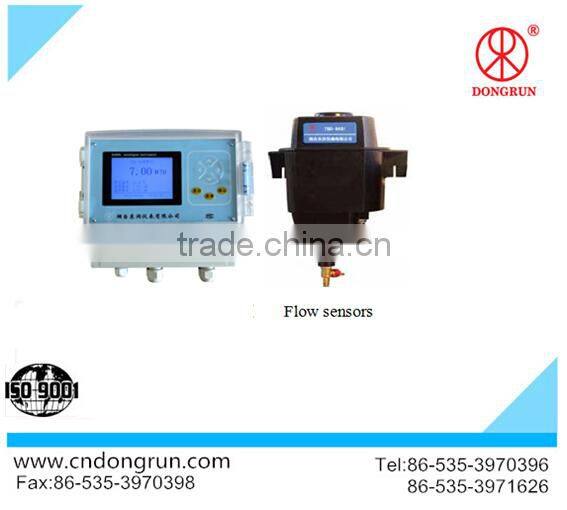

electronic auto testing machine turbidity probe
Product Instruction of Turbidity Sensor
I Application Fields of Turbidity Sensor
This product is applied to measure the light
scattering degree produced by the dissolved particles in the suspended transparent or opaque liquid andmeasure the content of these suspended particles.
Waterworks: turbidity monitoring of reservoir, well,
clean water pool, filter, filtered, precipitation and
water treatment plant
Industrial process: water quality monitoring of production recycled water, recycled water, etc.
Sewage treatment: water quality of inlet and outlet
Online turbidity measurement of electric, pure water, beverage, wine and pharmaceutical industries
II Feature of Turbidity Meter
Standard 90°scattering light measurement technique which provides reliable measurement results
Immersion type probe with self-clean wiper, maintenance-free
Simple key operation
Digital sensor, two-channel input, plug and play
Self-diagnostic function
High-scale circulating built-in bubble eliminating system
The measurement result is not affected by the bubbles.
Scattering composite light; Low turbidity data is not affected by Brownian diffusion impact.
Automatically compensation for voltage fluctuations, device aging, temperature change and sludge color
Sensor
Range | 0 ~ 20NTU, 0 ~ 200NTU |
Accuracy | ±2%FS |
Reproducibility | better than reading ±1.0% |
Response time | 1S (can be adjusted) |
Velocity of flow | 100-700ml/min |
Temperature | 0°C to 40°C |
cable length | standard 10m, The maximum length 100m |
Protection class | IP68 |
Water pipeline | 1/4”NPT Thread, 1/4” Compression fittings (provided) |
Drains | 1/2”NPT Thread, 1/2” Hose(provided) |
Transmitter
Analog output | 4~20mA Current output Maximum 750 Ω |
Digital output | MODBUS/RS485, MODBUS/RS232 |
Output relay | Four alarm system , 250VDC, 3A, all the way to the cleaning system 250VDC, 3A |
Frequency of reading | 0.5S one time |
Prower | 90-265VAC, 50/60HZ, |
Protection class | IP65 |
Installation methods | Wall-mounted |
Size | 210/105/185mm, L/W/H |

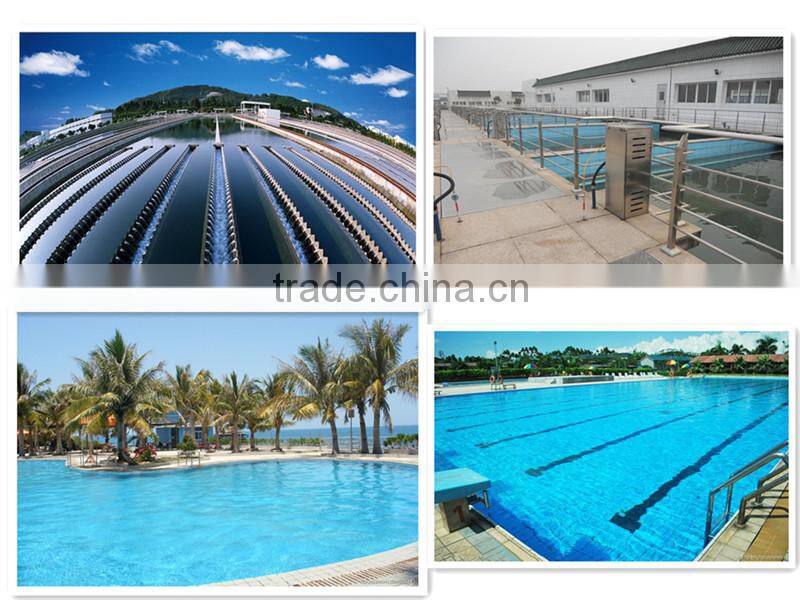

Application of Turbidity Sensor

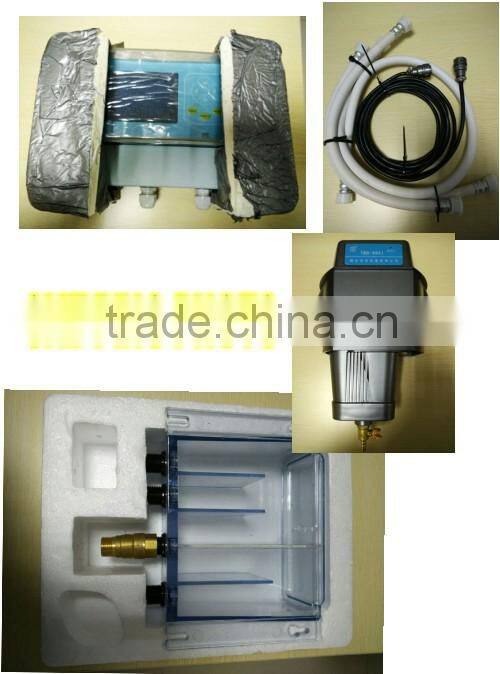

Packing and Delivery of Turbidity Sensor
Welcome to our factory.
Yantai dongrun Instrument Co., Ltd. was founded in 1998, specializes in manufacturing online water quality analysis equipment, High precise Online Turbidity Analyzer , material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.
