PMD-99T high temperature silicon resonant sensor pressure transmitter
- 1000 Piece / Pieces per Month
- YANTAI/QINGDAO
- T/T L/C D/P D/A Credit Card
-
PMD-99T high temperature submersible pressure transmitter
-
PMD-99T high temperature capacitive pressure transmitter
-
PMD-99T high temperature mini pressure transmitter
-
PMD-99T high temperature differential pressure transmitter
-
PMD-99T high temperature 4-20ma pressure transmitter
-
PMD-99T high temperature sapphire differential pressure level transmitter low cost
Product Details
| Place of Origin: | Shandong, China | Brand Name: | dongrun | Model Number: | PMD-99T Sapphire Pressure Transmitter |
Packaging Details
within 1~2 weeks upon receipt of remittance
Product Description
PMD-99T Sapphire Pressure Transmitter
Introduction
PMD-99S pressure transmitters for air compressor can be divided into smart and ordinary in two forms.It adopts the world's most advanced ceramic capacitors sensor technology , thick film electronic technology, measurement without mediation liquid technology, SMT technology and HART communication technology. It has an unique structure, small temperature drift, high stability, strong resistance to overload ability, wide application range, easy installation and maintenance, etc.It can be widely used in metallurgy, petroleum, chemical, machinery, dye, pesticide industry, environment protection, etc. There are mainly three types: PMD-99A capacitive type, PMD-99B diffused silicon type, PMD-99C compact type and PMD-99D sapphire type.
APPLICATION
1.Excellent corrosion resistance
2.High reliability, double diaphragm structure titanium metal diaphragm overload excellent performance
3.Small size, light weight, various types and high cost performance
4.Reverse polarity overvoltage, overcurrent protection
5.Various measuring medium, Measure viscous or crystalline, gas suspension
6.Wide pressure measurement range
7.High stability
Measurement range: | 0~ 160Mpa |
smallest measurement range | 4KPa |
Operating temperature: | -60℃~ +150℃ |
Environment temperature: | -20℃~ +60℃ |
Power supply: | 18~32VDC(usually 24VDC) |
Measurement accuracy: | ±0.2%FS,±0.5%FS |
Non-linear : | <±0.2%FS |
Hysteresis and repeatability: | ≤±0.1%FS |
long-term stability: | ≤±0.08%FS/year |
zero drift: | ≤±0.01%FS/℃ |
Response time: | <30mS |
Maximum operating pressure: | 2 times measurement range |
Electrical interface: | M20×1.5 internal thread |
Process connection: | M20×1.5,G1/2″,G1″external thread |
Medium: | oil, water, gas, other material compatible with 316 stain steel |
Explosion-proof: | ExiaⅡCT6 |
Protection grade: | IP65 |
ABOUT DONGRUN
Yantai dongrun Instrument Co., Ltd. founded in 1998. It specializes in manufacturing online water quality analysis equipment, level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperates with Chinese Academy of Sciences and builds up a water analysis laboratory, mainly producing TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification. Our professional R & D team can provide technical supports to satisfy customer demand and our unique technologies can meet different working conditions.

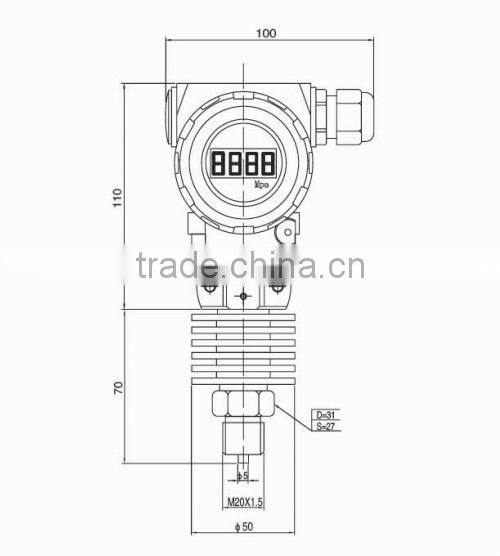

Externational dimention

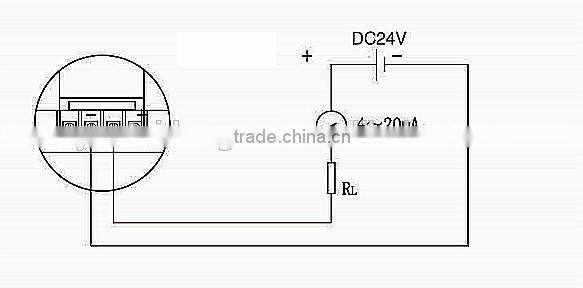

WIRE DIAGRAM

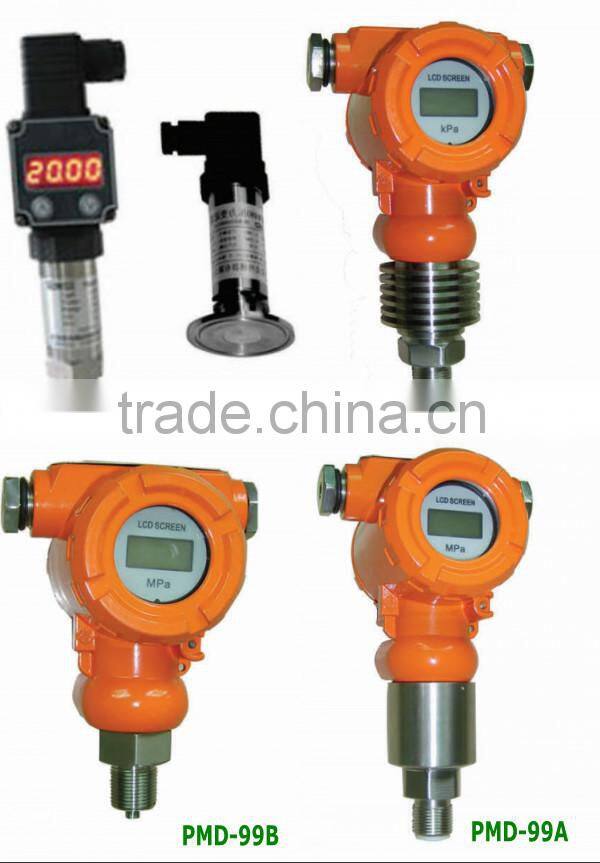

| Technical parameter | PMD-99Acapacitive type | PMD-99B diffused silicon | PMD-99TSapphire |
| Measurement range | 0-10MPa | -100KPa-40MPa | 4KPa-160MPa |
| Accuracy | ±0.2F.S;±0.5F.S | ±0.2F.S;±0.5F.S | ±0.2F.S;±0.5F.S |
| Medium temperature | -20~80°C | -20~70°C | -20~160°C |
| Diaphragm material | 96% alumina ceramic | 316 stainless steel | titanium metal diaphragm |
| Powwer supply | 24VDC | 12~36VDC | 18~32VDC |
| Output signal | Analog:4 -20mA;Intelligent:4 ~ 20mA load HART protocol | Analog:4-20mA;Intelligent:4 ~ 20mA load HART protocol | 4 ~ 20mA;1~5V |
| Features | 1.wide application 2.unique structure 3.small and light 4.easy installation | 1.LCDscreen 2.wide voltage power 3.wide range adjustment 4.suited for any medium | 1.wide measure range 2.small size 3.light weight 4.high performance ratio |
Instrument Selection
PMD-99TS | Intelligent sapphire pressure transmitter | ||||||||
PMD-99T | Analog sapphire pressure transmitter | ||||||||
| code | Pressure type | |||||||
| GP | Gauge pressure | |||||||
| AP | Absolute pressure | |||||||
|
| code | Output | ||||||
|
| A | two-wire 4~20mA | ||||||
|
| B | three-wire 1 ~ 5V | ||||||
|
|
| Code | Process connection material | |||||
|
|
| 0 | 304 stainless steel | |||||
|
|
| 1 | 316 stainless steel | |||||
|
|
| 2 | Special requirement | |||||
|
|
|
| code | Process connection | ||||
|
|
|
| G | External thread M12×1.5 | ||||
|
|
|
| M | External thread M20×1.5 | ||||
|
|
|
| K | Health type clamp connection | ||||
|
|
|
|
|
| code | accuracy | ||
|
|
|
|
|
| 2 | 0.2%F.S | ||
|
|
|
|
|
| 5 | 0.5%F.S | ||
|
|
|
|
|
|
|
| code | Display |
|
|
|
|
|
|
|
| L | On-site LCD display |
|
|
|
|
|
|
|
| W | Without on-site display |
|
|
|
|
|
|
|
|
| Measurement range |
PMD-99T | GP | A | 2 | M | 5 | W |
| / 0-5Mpa Selection example | |
Company Profile
Yantai Dongrun Instrument Co., Ltd. is a manufacturer of instruments and meters with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in water treatment, biopharmaceutical industry and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
