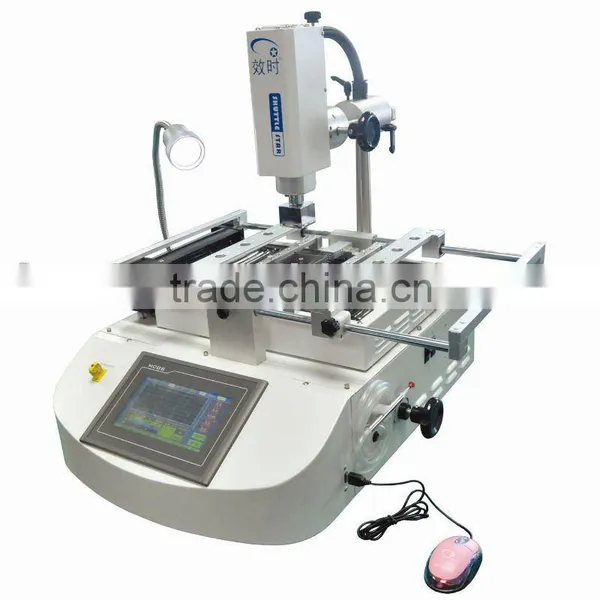

RW-SP360C Economy BGA Repair

Name: RW-SP360C Economy BGA Repair
Brand: Shuttle Star
SKU: 105401241

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Shuttle Star

Model Number:

SP360C

Shenzhen Fundar Technology Limited

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Shuttle Star

Model Number SP360C

Voltage 220V

Current 22A

Rated Capacity 3.6KW

Rated Duty Cycle 100%

Dimensions 650*500*600mm

Weight 36KG

Usage BGA Repair mainly for reapir desktop, notebook, xbox, ps3

Specifications

1.BGA Repair with CE
2.3 heaters, movable heating head
3.Industrial computer system
4.with USB port
5.CE

RW-SP360C Economy BGA Repair

1. Main Features

High quality heating material produces high-tem breeze, precisely controlling the soldering and desoldering process.
horizontally-movable heating head for easy operation;
Embedded industrial computer, touch screen interface, real-time temperature curve display, able to display set curve and practically-tested curve; 7.2 high definition screen, convenient for operation and observation;
Industrial computer able to store unlimited temperature curves, curve analysis can be done on touch screen; both English and Chinese can be input;
The temperatures of the upper and lower heater can be precisely controlled according to set temperatures; bottom constant temperature infrared heating area; appropriate temperature control apparatus can ensure safe rework for BGA;
The BGA soldering supporting frame can micro-adjusted to avoid local sinkage;
Powerful cross flow fan can cool the lower heating area;
The adjustable PCB positioning supports, easy and fast to install PCB; special fixture for installing allotype boards ;
with sound alarming function after finishing soldering or desoldering; hand vacuum pen easy for picking up BGA;
Set with over temperature alarming and protection function;
Equipped with different hot gas nozzles, easy to replace and be customized
The integrated design of machine and chassis, room-saving.

2. Specifications:
