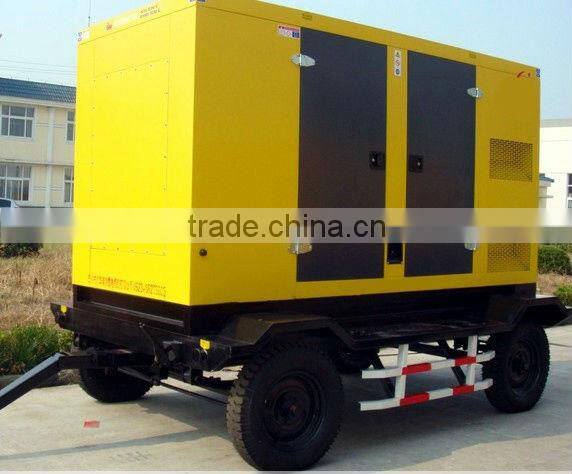

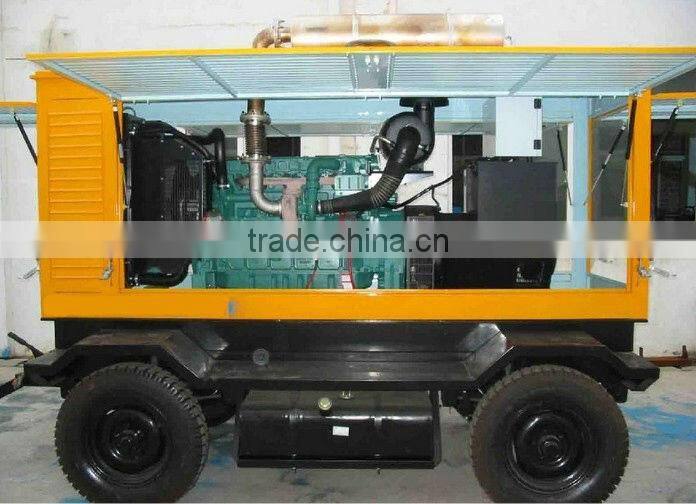

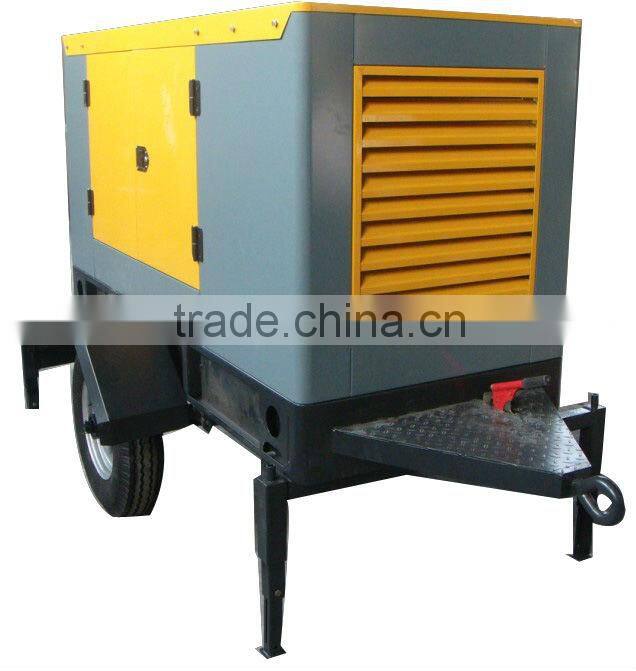

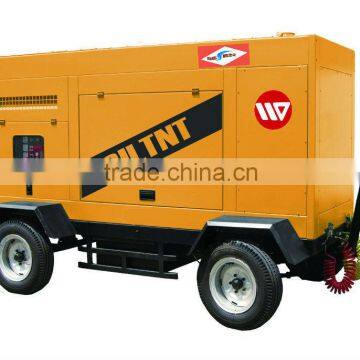

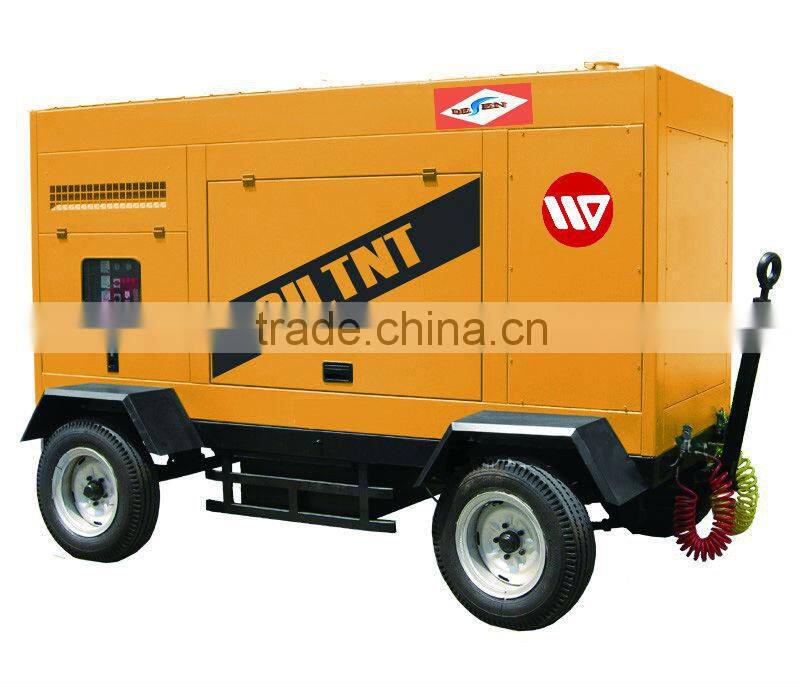

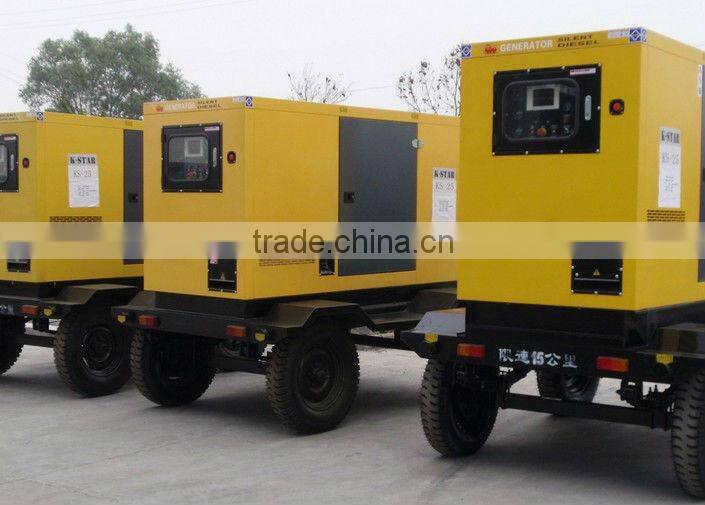

125KVA 100KW Trailer Power Station

Specifications

125KVA 100KW Trailer power station

Trailer power station consists of diesel generator units and trailer, of which have four types as single bearing, double bearing, dual wheel and four wheels according to the power difference. The power station is In complying with vehicle running safety and technical conditions as well as various relative requirements of general technical conditions of altered current industrial frequency power station. It has good sealing characteristic and safety performance. It undertakes rush load in change-frequency places and it is a good emergency power.

Specifications:
1) Output range: from 10kW (15kVA) up to 500kW (625kVA)
2) Engine model: Deutz, Perkins, Steyr and Cummins are produced by joint ventures in China
3) Alternator model: Alternator: Stamford, Leroy Somer, Marathon and chinese brand
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
18) Control system:
      a) Automatic alarm system: the unit has the acousto-optics alarm
          system and arrestor for any situation as the start defeat, the water
          is over temperature, the oil pulls down, over speed, over load and
          over current
      b) Operation display:
          i) Unit voltage, tri-phase load current and frequency display
          ii) Water temperature, oil pressure display
          iii) Fuel level, fuel temperature display
          iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: combined cooling water tank fitted to meet the
      requirement of radiation at ambient temperature 40°C
22) Filter system: oil, fuel and air filter
23) Accessories: exhaust elbow, bellow, muffler
24) Supply standard collocation:
      a) Diesel engine with all accessories, 3 filter, electric systems
      b) Alternator
      c) Steel structure
      d) Fan and water tank cooling system
      e) Flange connector
      f) 12 / 24V starting motor and charge engine
      g) Air cleaner, fuel cleaner, oil cleaner
      h) On-board control panel
      i) MCCB air conservation switch
      j) 12 / 24V starting accumulator and Battery line
      k) Set shock absorber
      l) High-efficient silencer

We offer 18moths after-sales service. If the problem is caused by our technology,we will be responsible for that,even we can send the replacement to your.

Samples are available and OEM can be provided. 23days for samples,26-28days for containers
