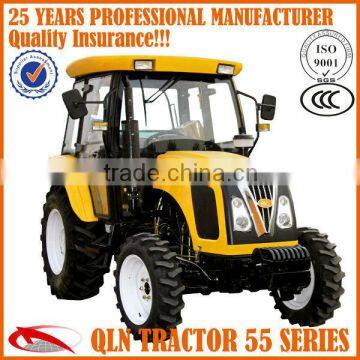

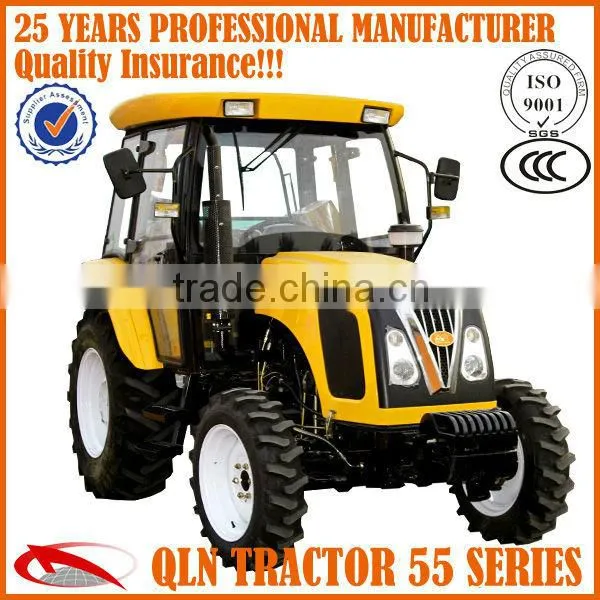

compact structure QLN 55hp 4wd farm wheeled traktor(farm implements are available)

Specifications

Famous Farm Tractor
1. YTO/Xinchai engine
2. Fitted implements
3. Hydraulic steering, enforced PTO
4. One year warranty

                       Henan Qianli Machinery Co. LTD

Qianli Company is specialized in Agricultural Equipments Manufacturing!

The main produce are wheel tractors 20hp to 145hp ,walking tractors 8hp to 20hp, and wide range of farm implements.



The best tractors are a perfect combination of a powerful and economic engine, an efficient transmission, versatile hydraulics, a modern electrical system, and an ergonomic operator platform. All of these characteristics can be found in the tractors from Henan Qianli company.

We are open to distributorship, and looking forward to establish mutual benefit cooperation with your esteemed company!





♦Features for QLN554 farm tractor

1.Adopt YTO,Xinchai,Yuchai and Quanchai diesel engine,good reliability.

2.Single and dry chip clutch with double actions.

3.Gearbox shows F12+R12,namely 12 forwards and 12 returns,exchange in joggle.

4.Adopt front wheel turning with full liquid-pressure and independent oil-way,turn agilely,reliably and power-saving.

5.Adopt tray-style arrester, stronger brake momentum and reliable brake.

6.The whole tractor is beautiful,tast,modern and fashion. It is installed with comfortable chair.





♦Our mission

1. Quality and credit go first

2. Price advantages

3.One year warranty



♦Specification of QLN554

Model	QLN 554
Drive type	4*4
Engine
Engine model	YT4A2
Capacity of fuel tank(L)	43
Rated speed (r/min)	2300
Engine power (kw)	40.5
Rated  fuel consumption (g/kw·h)	≤242
Transmission
Clutch	Single disc /dry type /dual stage
PTO Speed(rpm)	540/760 (commonly used)
Gearshift	F12+R12 shuttle gears
Hydraulic system
Hydraulic output valve	one group
Three point linkage
Category of 3-point link	categoryⅡ
Lifting capacity(at point of 610mm)KN	9.2
Technical parameter
Dimension( L*W*H) mm	3980*1635*2150
Wheel base(mm)	2040
Track base(mm) front/rear wheel	1400/1300
The smallest clearance(mm)	325
Front /rear tyre	8.3-20/12.4-28





♦Our honours: Since its inception, we have always operated with principle of positive,

innovative and open up.So after years of develop and hard work,our company has received lots of honors we deserve.







  ♦Our hard work feedbacked:we have oppornity to participate in the exhibitions,

and attracts many foreign customers.Our worknet has spread all over the world.









  ♦Our products:Different kinds of color and styles,we can also customized for you.











♦Details of our products,they give you a much clear comprehension about QLN tractors.







  ♦Our products inPeru.Our products have been exported to many other countries,

such as Romania, Russia, Ukraine, Tanzania, Thailand, Australia, etc.











QLN tractor have over 70 types tractor main in 6 series:



1.35 series 250-354 (from 25hp-35hp 2/4wd)

2.40 series 400-554B (from 40hp-55hp 2/4wd)

3.50 series 550-654 (from 55hp-65hp 2/4wd)

4.80B series 700-854B (from 70hp -85hp 2/4wd)

5.80A series 800-1004 (from 80hp-100hp 2/4wd)

6.100 series 1104-1304 (from 110hp-130hp 4wd)

There is a wide range for you to choose in Qianli Machinery!



We can offer u a wide range of farm implements, providing u a one-stop purchase



If you have any interests in our products, pls feel free to contact us!!

Wish you a sunny day!!
